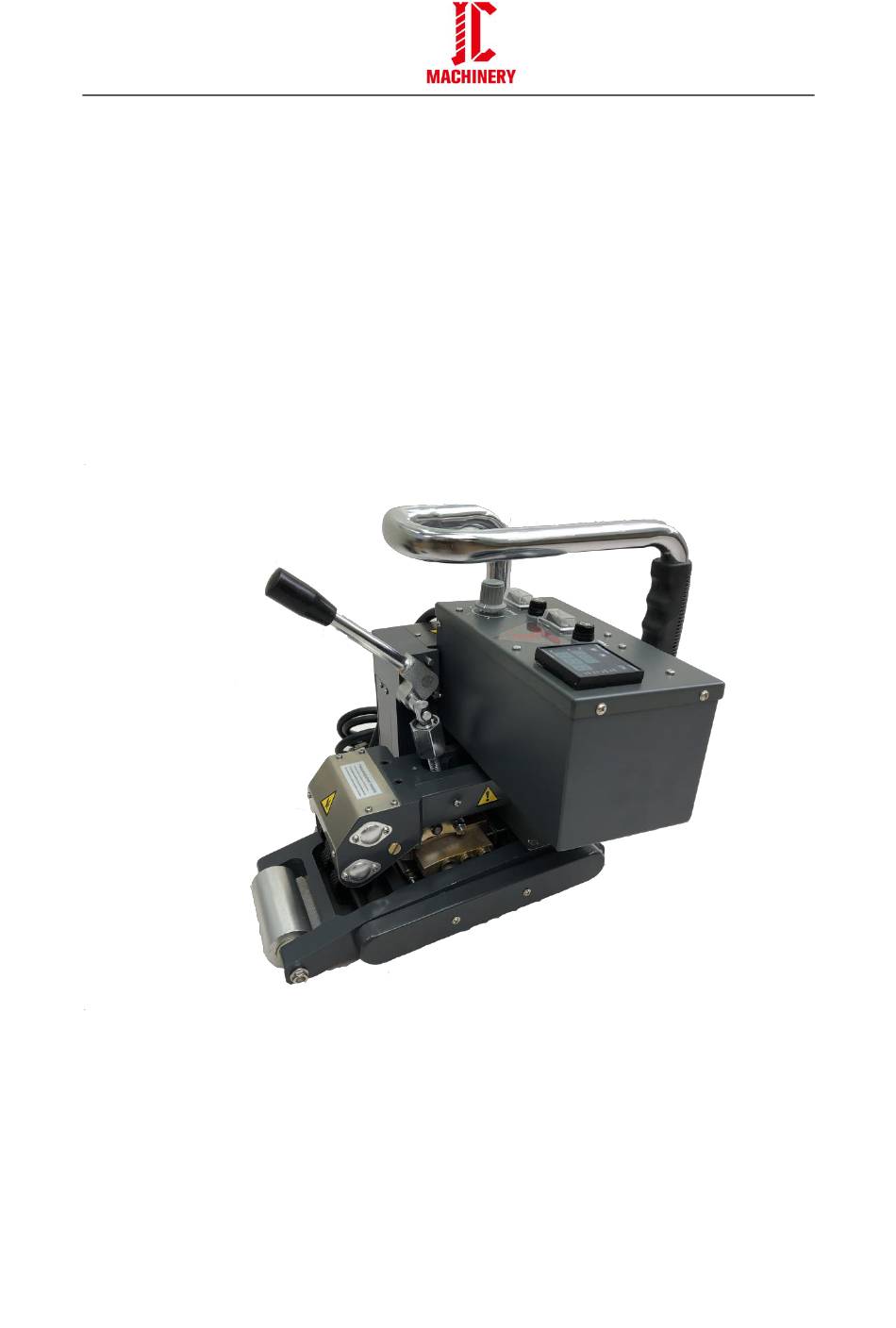

- Page 1 JC MACHINERY & TOOLS INC. Quality We Trust Geomembrane Overlap Wedge Welder Garbage Imbedding Anti-filtering Welder JC-1800-DTM User Manual...
- Page 2 JC MACHINERY & TOOLS INC. Quality We Trust Notice 1. Please carefully read the literary in order to use the machine carefully. Please use the three holes receptacle with earthing which capacity is more than 15A.No changing the pin at random and drag the wire to take the pin out. In order to guarantee the quality of welding, please ask the people who is specialized in the line to manipulate.
- Page 3 JC MACHINERY & TOOLS INC. Quality We Trust control and low temperature fluctuation. Speed control of this series adopts PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load.
- Page 4 JC MACHINERY & TOOLS INC. Quality We Trust Main Components and Name Pressure handle Manipulate hand Speeding knob Temperature Speeding switch Electric machine insurance switch Power supply insurance Temperature control instrument Control case 10 Thermal wedge 11 Pressure wheel 12 Creeping wheel 13 Sway head 14 Adjusting nut Working Principle...
- Page 5 JC MACHINERY & TOOLS INC. Quality We Trust the pressure wheel to made the thermal-fused mother material together. The picture is as follow: Operating Criteria Notice: In order to obtain the excellent quality and high efficiency, it should be manipulated by professional people since the welding quality of the machine has direct relationship with the enactment of speed and temperature.
- Page 6 JC MACHINERY & TOOLS INC. Quality We Trust side .And to the non-transparence material ,it also can be tested by resistance pull after the whole party is cooled down. Mending the edge of the welding material smooth .The surface face to the front side, and overlap to left down and right up .The width of pulled up is 120mm.
- Page 7 JC MACHINERY & TOOLS INC. Quality We Trust vii. The adjustment of the Pressure Wheel According to the various thickness of material, it can be adjusted the magnitude of pressure by switching the modulated screw. It will increase by clockwise, and it decrease by anticlockwise.
