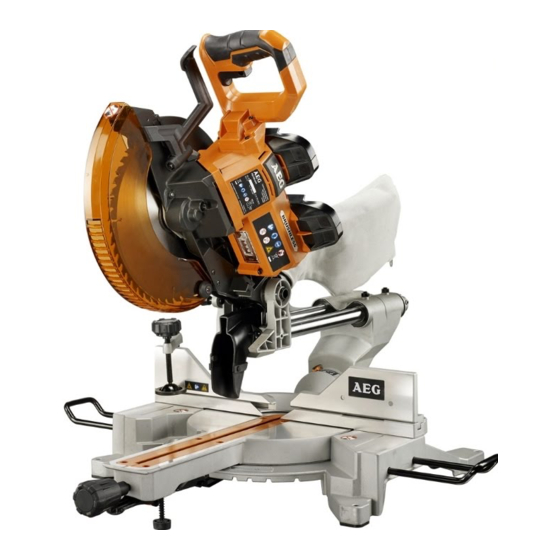

Summary of Contents for AEG Powertools PSD18B-254X

  • Page 2 mportant! It is essential that you read the instructions in this manual before assembling, operating and maintaining the product. Subject to technical modifications.
  • Page 3 Ø 254 mm Ø 30 mm 48 HW 2.2 mm 7000 max. “D” Handle Laser button LED button Saw blade LED light Spindle lock button Switch trigger Lower guard lock out lever Upper blade guard 10. Laser guide 11. Lower blade guard 12.
  • Page 4 Fig. 1 Fig. 3 1 - Right sliding fence 2 - Slot 3 - Sliding fence adjustment knob Fig. 4 1 - Extension bar 2 - Blade wrench 1 - Work clamp Single/dual bevel selector 2 - Base 4 - Work clamp knob Fig.
  • Page 5 Fig. 6 Fig. 8 1 - Indicator screw 2 - Scale indicator 3 - Bevel scale Fig. 7 Fig. 9 1 - Mitre indicator screw 1 - Fixed fence 2 - Mitre scale indicator 2 - Mitre lock knob 3 - Detent release lever 3 - Detent release lever 4 - Mitre lock knob 4 - Turning table...
  • Page 6 Fig. 10 Fig. 12 1 - Mitre lock knob 2 - Detent release lever 3 - Detent override 1 - Mitre scale indicator 2 - Mitre scale Fig. 11 3 - Mitre detent Fig. 13 1 - Screws for fixing fence 2 - Fence 1 - Saw blade View of blade not square with...
  • Page 7 Fig. 14 Fig. 17 Note: Before use, replace blade bolt cover screw and View of blade not square with tighten securely to prevent turning table, adjustments are required. blade bolt cover movement 1 - Saw blade 2 - Combination square 3 - Turning table Fig.
  • Page 8 Fig. 18 Fig. 20 1 - Depth stop 2 - Depth control knob 1 - Laser button Fig. 19 2 - Red line 1 - “D” handle 2 - Head lock pin...
  • Page 9 Fig. 21 Fig. 23 Shadow of blade teeth projected onto workpiece 1 - Push back Fig. 24 1 - LED button Fig. 22 1 - Sliding lock knob Cross cut 2 - Slide cut 1 - Work clamp 3 - Pull lower guard lock lever 2 - Mitre detent release button 4 - Slide saw arm forward, pull lower guard lock out lever 3 - Mitre lock knob...
  • Page 10 Fig. 25 Fig. 27 Bevel cut 1 - Bevel lock knob Mitre cut 2 - Single/dual bevel selector 1 - Work clamp Fig. 28 Fig. 26 Bevel cut Compound mitre cut 1 - Work clamp 1 - C-clamp (not included)
  • Page 11 Fig. 29 Fig. 32 52° 45° Ceiling Ceiling 38° 45° Wall Wall Top edge against fence: Left side, inside corner Right side, outside corner 1 - Long workpiece 2 - Workpiece supports Fig. 30 1 - Sliding fence 2 - Turning table 1 - Wide board Top edge against fence: Left side, inside corner...
  • Page 12 Fig. 36 Fig. 33 Bottom edge against fence: Left side, inside corner Right side, outside corner Crown molding nested against front facing mitre fence 1 - Sliding fence Right 2 - Spring clamp (not included) 3 - Turning table Fig. 37 Fig.
  • Page 13 Fig. 39 Fig. 41 Unlock Lock 1 - Throat plates 2 - Mitre lock knob Fig. 40 1 - Rivets 2 - Guard block Fig. 42 1 - Throat plates 1 - Laser adjustment screw #1 2 - Laser adjustment screw #2 3 - Laser adjustment screw #3...

  • Page 14: Technical Data

    TECHNICAL DATA SLIDE COMPOUND MITRE SAW PSD18B-254X Voltage DC 18 V Maximum cutting depth 91 mm No-load speed 3900 min Weight - excluding battery pack 15.6 kg Saw blade diameter x hole diameter 254 x 30 mm Saw blade thickness / kerf 1.6 mm / 2.2 mm...

  • Page 15: General Safety Warnings

    carefully checked to determine that it will operate properly and WARNING! perform its intended function. Check for alignment of moving parts, Read all safety warnings and all instructions. Failure to follow binding of moving parts, breakage of parts, mounting and any other the warnings and instructions may result in electric shock, fire and/ conditions that may affect its operation.

  • Page 16: Specified Conditions Of Use

    in the intended use section in this manual. Extension of the spanner or tightening using hammer blows is not permitted. Replace the table insert when worn or damaged. Make sure the blade and flanges are clean and the recessed sides Before work, make a dummy cut without the motor turned on so the of the collar are against the blade.

  • Page 17: Residual Risks

    RESIDUAL RISKS the saw arm to prevent sudden rise upon release of the tie wrap. ■ Inspect the product carefully to make sure no breakage or Even when the slide compound mitre saw is used as prescribed, damage occurred during shipping. it is still impossible to completely eliminate certain residual risk ■...

  • Page 18: Carrying Handle

    CARRYING HANDLE ■ Insert the tab on the dust chute rubber in the indent of the main dust chute, so that the tab faces inward of the dust chute. ■ Wrap the dust chute rubber around the main dust chute. Pass WARNING the hole on the rubber through the tab on the main dust chute.

  • Page 19: Operation

    Tighten bevel lock knob. WARNING NOTE: To obtain right bevel angles, pull the single/ dual bevel selector out and tilt the saw to the desired angle. Always remove battery packs from the product when you are assembling parts, making adjustments, cleaning, or when not in ■...

  • Page 20: Laser Guide

    counterclockwise to tighten. WARNING Do not try to cut narrow pieces using the sliding feature. Failure WARNING to heed this warning could result in serious personal injury. Always install the blade with the blade teeth and the arrow printed on the side of the blade pointing down at the front of the saw.
  • Page 21 ■ Press the laser button. Align the cutting line on the workpiece ■ Secure the stock against the fence firmly. Use the work clamp with the edge of saw blade or laser line. or a C-clamp (not included) to secure the workpiece when possible.
  • Page 22 CUTTING COMPOUND MITRES To aid in making the correct settings, the compound angle setting chart below has been provided. Since compound cuts are the most difficult to accurately obtain, trial cuts should be made in scrap material, and much thought and planning made, prior to making your required cut. Number of sides Pitch of side M- 45.00°...
  • Page 23 lower guard. operation to make sure that no problems will occur when the cut is made. ■ Slowly lower the saw blade into and through the workpiece. ■ Grasp the saw handle firmly. Squeeze the switch trigger. Allow ■ Release the switch trigger and allow the saw blade to stop several seconds for the blade to reach maximum speed.
  • Page 24 The two contact surfaces on a piece of crown molding that fit flat 33.9 (Right) Left side of outside corner against the ceiling and the wall of a room are at angles that, when 1. Top edge of molding against added together, equal exactly 90°.

  • Page 25: Bevel Adjustment

    ■ Nest and secure the crown molding against mitre fence using a 45° BEVEL ADjUSTMENT spring clamp (not included) and hold crown molding securely. See figures 37. ■ Before turning on the saw, perform a dry run of the cutting ■...

  • Page 26: Transporting Lithium Batteries

    ■ Retighten the screws, being careful not to overtighten which can To move or transport in a vehicle: cause the throat plate to bow or bend. ■ Secure the product prior to movement as described in the ■ Repeat the above steps for the left side of the throat plate. manual.
  • Page 27 service centre for professional repair or adjustment. Do not make any adjustments whilst the saw blade is in motion. Width of cut Removed the battery pack before making adjustments, lubricating 2.2 mm or when doing any maintenance on the machine. Blade rotation direction Before and after each use, check your saw for damage or broken parts and keep it in top working condition by replacing parts...
  • Page 28 Techtronic Industries GmbH Techtronic Industries (Australia) Pty. Ltd. Techtronic Industries N.Z. Limited Max-Eyth-Straße 10 31 Gilby Road, 2 Landing Drive, Mangere, 71364 Winnenden Mount Waverley VIC 3149, Auckland, New Zealand 2022 Germany Australia...
