OPERATOR'S MANUAL AND PARTS LIST

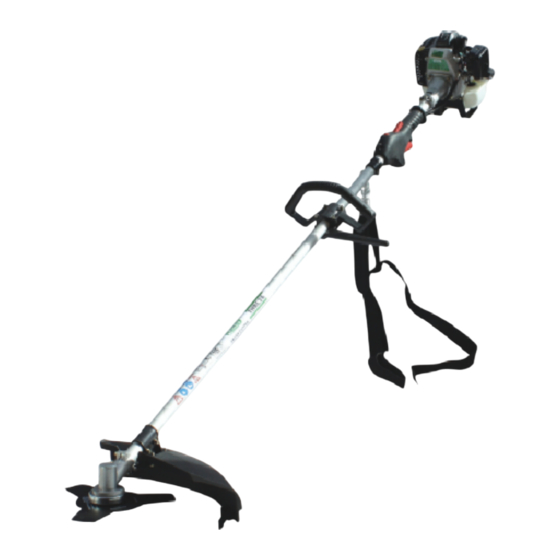

PETROL BRUSHCUTTER - THBC26
Sales & Helpline 01793 333212
www.thehandy.co.uk
Before use please read & understand this manual, paying particular
attention to the safety instructions.
2011 v1
Page 1

Advertisement

Table of Contents
loading

Summary of Contents for The Handy THBC26

  • Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL BRUSHCUTTER - THBC26 Sales & Helpline 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 2011 v1 Page 1...
  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS FUEL SPECIFICATIONS ASSEMBLY OPERATION REPLACEMENT OF LINE HINTS AND TIPS MAINTENANCE PARTS DIAGRAMS AND LISTS 12-15 EC DECLARATION OF CONFORMITY Page 2...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Read and understand the owner’s manual and the labels affixed to the brushcutter. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Use sturdy footwear and a helmet with eye and ear protection. Protect exposed parts of your body.
  • Page 4: Major Parts

    MAJOR PARTS Fuel Tank Starter Air Cleaner Fuel Tank Bracket Housing Throttle Cable Lever Assembly Safety Lever Lever Stop Switch Handle Assembly Bracket Blade Guard Gear Case Blade Warning Labels on Machine Warning! Attention Read Owners Manual Wear Head Protection Keep Feet away from Cutter Keep Bystanders away Sound Power Level...
  • Page 5: Fuel

    • Dispose of any unwanted 2-stroke mixture at an authorised recycling point. SPECIFICATIONS Model THBC26 Blade Engine Air Cooled 2-stroke Displacement 25.4cm³ Starter...
  • Page 6: Assembly

    ASSEMBLY • Normally the brushcutter will arrive with the main shaft (2) and fuel tank (1) attached. • If not, attach using the four bolts (3) supplied. Attach the Handle: • Attach the D loop handle (1) over the rubber mount (3) on the shaft and tighten the bolts (2).
  • Page 7: Assembly

    ASSEMBLY, cont’d Attaching the Metal Blade: • Lay the brushcutter on its back. • Insert the allen key (7) into the gear shaft, line up the holes in the blade holder and cover to stop the shaft turning. • Place the blade onto the upper blade holder (5) and centre. •...
  • Page 8: Operation

    OPERATION Before starting the engine, inspect the entire unit for loose fittings or fuel leaks, and ensure that the cutting attachment is securely fastened. • Place the machine on a flat surface away from the area in which you intend to work. •...
  • Page 9: Replacement Of Line

    REPLACEMENT OF LINE Follow these steps to replace the cutting line. • Stop the engine. • Lay the trimmer on the floor so that the cutting head is facing up. • Squeeze the head on both sides at right angles to the eyelets. •...
  • Page 10: Hints And Tips

    HINTS AND TIPS Using the Metal Blade: Use the metal blade attachment for cutting thicker grass, weeds and undergrowth. Adjust the cutting speed to suit the material to be cut. Grass at medium speed and thick weeds and shrubs at high speed. If you operate at low speed there is a greater chance of weeds and twigs getting caught around the blade.
  • Page 11: Maintenance

    MAINTENANCE To ensure a long service life and to avoid any damage to the brushcutter, perform the following maintenance at regular intervals. Air Filter: Check and clean the Air Filter regularly to ensure optimum performance. Remove the air filter cover, take out the element and wash in lukewarm water. Allow to dry completely and then replace.
  • Page 12: Parts Diagrams And Lists

    PARTS DIAGRAM- DRIVE UNIT Page 12...
  • Page 13 PARTS LIST - DRIVE UNIT Part No Description TH125-1 Engine (see separate list) TH125-2 Clutch Assembly TH125-3 Drive Shaft Complete TH125-3-1 Drive Shaft Cover TH125-3-2 Bush TH125-3-3 Shaft TH125-4-1 Bracket TH125-4-2 Bolt M5x25 TH125-4-3 Guard TH125-4-4 Screw TH125-4-5 Blade TH125-4-6 Bolt M5x25 TH125-4-7 Plate...
  • Page 14 PARTS DIAGRAM- ENGINE Page 14...
  • Page 15 PARTS LIST - ENGINE Part No Description Part No Description TH126-1 Cylinder TH126-40 Cap, plug TH126-2 Gasket, Base TH126-41 Spring TH126-3 Bolt TH126-42 Grommet TH126-4 Insulator TH126-43 Spacer TH126-5 Gasket, Insulator TH126-44 Bolt TH126-6 Gasket, Carburettor 1 TH126-45 Recoil Assy TH126-7 Screw TH126-53...
  • Page 17 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212...
