INSTALLATION OF SHELVES
SHELVES MUST BE INSTALLED BEFORE MOUNTING THE
CABINET TO A WALL AND FLOOR.

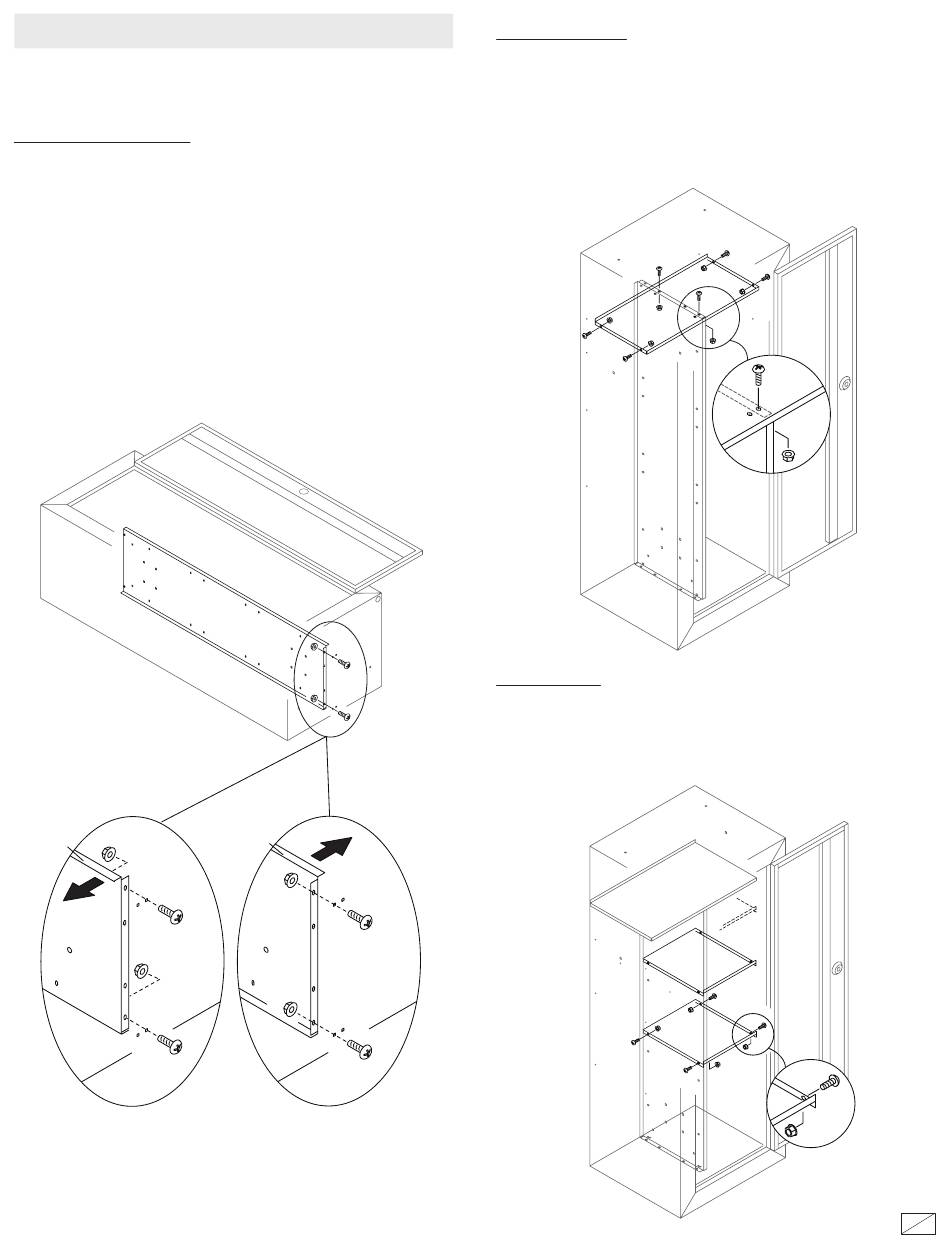

Center Partition Assembly
Lay the cabinet on its back on a protective surface.
Position the Vertical Partition carefully to align the holes on the
bottom. The Center Partition has two possible positions. You should
face the front flange towards the side you want to mount the shelves
(See illustration below). There are also two sets of mounting holes.
Line up the bottom flange of the Center Partition so that the vertical
wall of the Partition is centered between the mounting holes. This will
ensure that the partition is in the exact center of the cabinet, and that
there is proper spacing for the shelf installation on both sides.
Install and tighten the 2 nuts and bolts as shown.
FRONT
FLANGE
FRONT
FLANGE
Top Shelf Assembly
The top shelf has 2 sets of holes for attaching the center partition. Use
the set of holes that will allow the partition to be centered between the
2 holes. This will ensure that there is proper spacing for the shelf
installation on both sides. Position the shelf so the front and side
flanges point down. Assemble the top shelf to the center partition and
the sides of the cabinet using 6 nuts and bolts.
Shelf Assembly
You have the choice of 3 locations for mounting the shelves. You also
have the choice of having the front flange of the shelf to point up or
down. Select a location and assemble each shelf to the center panel
and cabinet side using 4 nuts and bolts.
