PLANNING YOUR CABINET CONFIGURATION
On the outside and rear walls of the left and right compartments, you
can install barrel rests which will support (9) guns on each side.
The adjustable shelves can be mounted at (3) positions in the left or
right compartments. Notice that when the barrel rest is mounted to the
side of the cabinet, even when the shelving is installed, two of barrel
rest positions extend in front of the shelves which allow you to store
guns in front of the shelves.

INSTALLATION OF BARREL RESTS

THE BARREL RESTS MUST BE INSTALLED BEFORE
MOUNTING THE CABINET TO A WALL AND FLOOR.

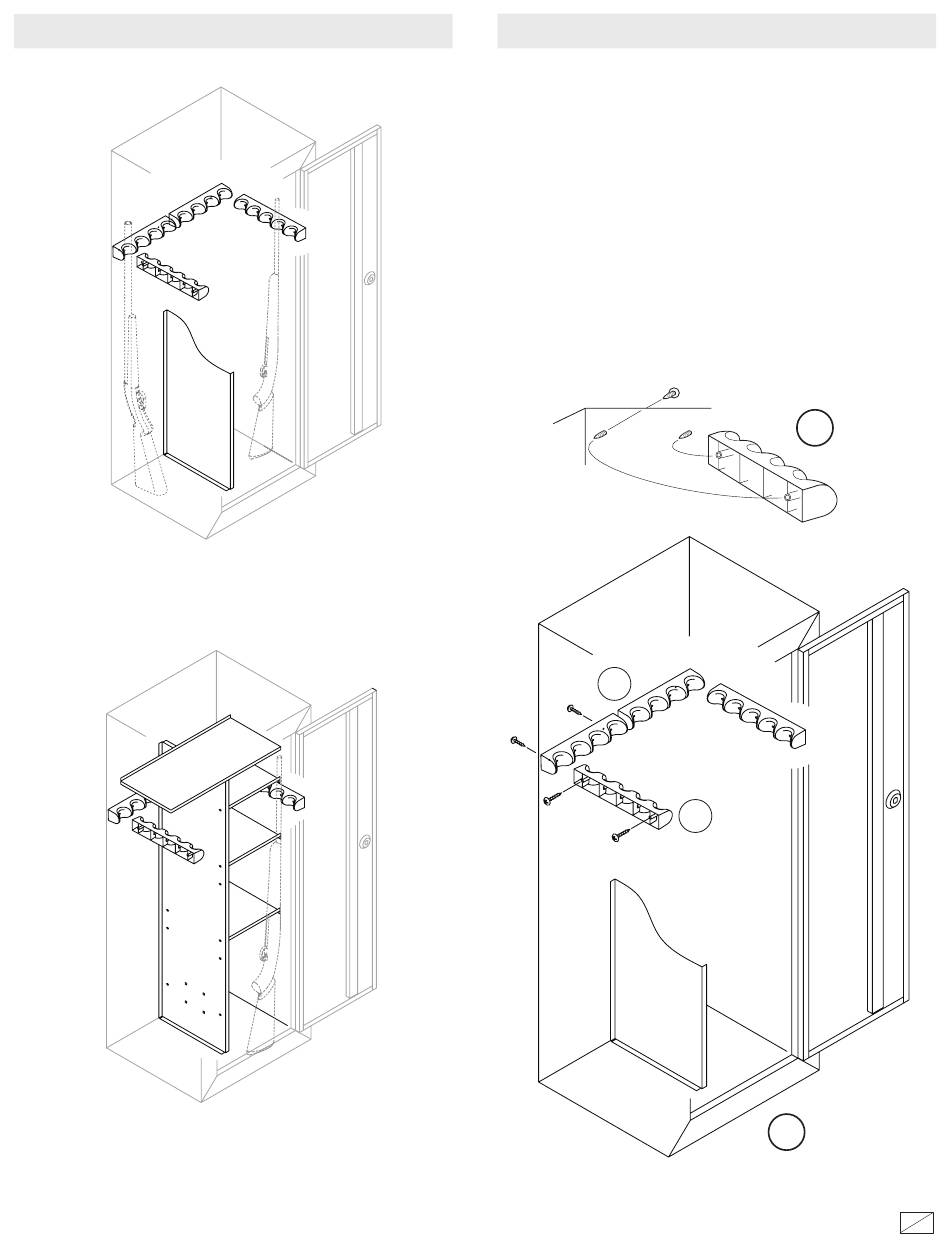

Installation of Barrel Rests
Install the 4-position barrel rests (A) to the back of the cabinet and the
5-position barrel rests (B) to the sides of the cabinet as shown in figure 2.
Thread the screws into the pilot holes from the outside of the cabinet.
Align the holes of the barrel rest over the tips of the screws and lightly
press the barrel rest into place. Now tighten the screws from the
outside of the cabinet. Tighten each screw partially, alternating from
one screw to the other until they are both tight. Do not over tighten.
(See figure 1)
A
1
B
2
40112-1309
2
21
