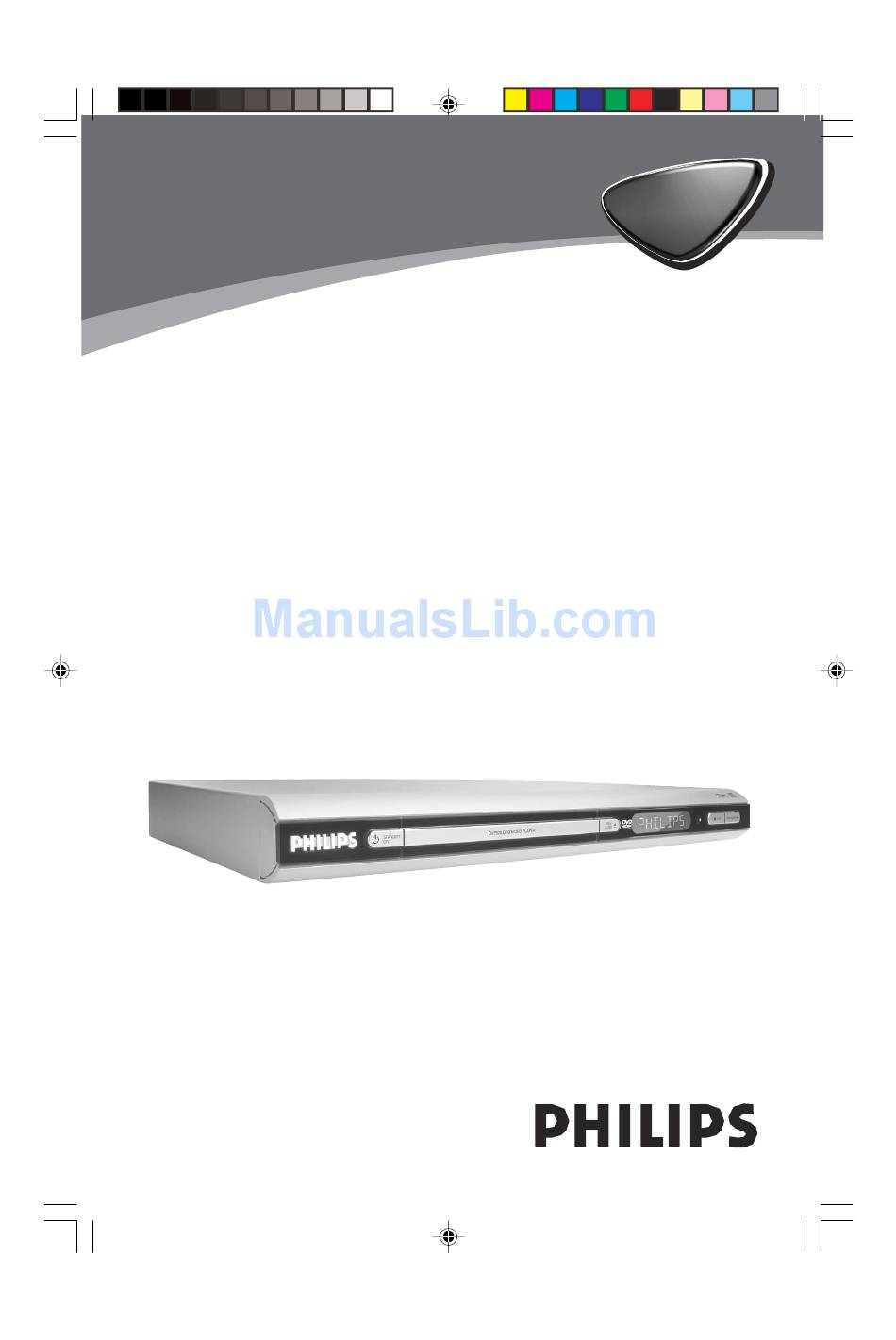

- Page 1 DVD VIDEO PLAYER 02(A)_8239 210 98882 01-34 DVP520_02a1 18/03/2004, 6:30 PM...
- Page 2 Important notes for users in the U.K. Mains plug This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fix new fuse which should be a BS1362 5 Amp, A.S.T.A.
- Page 3 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
-
Page 4: General Information
Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CD- Audio disc retailer. - Page 5 CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE.
-
Page 6: Table Of Contents
Contents Introduction Supplied accessories ... 7 Care and safety information ... 7 Connections Connecting TV ... 8-9 Using SCART jack ... 8 Using Composite Video jacks (CVBS) ... 8 Using S-Video jack ... 9 Using an accessory RF modulator ... 9 Connecting the power cord ... -
Page 7: Introduction
CDR(W) and only with a soft felt- tipped pen. – Handle the disc by its edge, do not touch the surface. 18/03/2004, 6:30 PM Introduction 10 cm (4 inches) PHILIPS 10 cm (4 inches) 02(A)_8239 210 98882... -
Page 8: Connections
Connections Connecting TV S-VIDEO AUDIO TV IN VIDEO IN VIDEO OUT COAXIAL MAINS S-VIDEO OUT DIGITAL OUT AUDIO OUT IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your TV system. –... -
Page 9: Using S-Video Jack
RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. Using an accessory RF modulator Use the composite video cable (yellow) to connect the DVD Player’s CVBS (VIDEO... -
Page 10: Connecting The Power Cord
Connections Connecting the power cord COMPONENT VIDEO IN S-VIDEO AUDIO V (Pr/Cr) ~ AC MAINS U (Pb/Cb) VIDEO IN VIDEO OUT COAXIAL MAINS S-VIDEO OUT DIGITAL OUT AUDIO OUT After everything is connected properly, plug in the AC power cord to the power outlet. -
Page 11: Optional: Connecting To An Audio System
Optional: Connecting to an Audio System STEREO TV OUT VIDEO OUT COAXIAL S-VIDEO OUT DIGITAL OUT AUDIO OUT Stereo system has Dolby Pro Logic or Right / Left Audio In jack Select one of the video connections (VIDEO IN, S-VIDEO IN or SCART jack (TV IN) depending on the options available on your TV. -
Page 12: Functional Overview
Functional Overview Front and Rear Panels STANDBY-ON B – To switch the DVD Player to Standby mode or ON Disc tray OPEN/CLOSE / – Open/Close the disc tray STANDBY-ON Mains (AC Power Cord) – Connect to a standard AC outlet S-Video Out –... -
Page 13: Remote Control
Remote Control RETURN / TITLE – To go back to previous menu / show title menu DISC MENU – Enters or exits the disc contents menu – Switches on or off the playback control mode (for VCD version 2.0 only) 1 2 3 4 –... -
Page 14: Getting Started
8-9 “Connecting TV”). Turn on the TV and set to the correct video-in channel. You should see the blue Philips DVD background screen on the Usually these channels are between the lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details. -
Page 15: Selecting The Colour System That Corresponds To Your Tv
Selecting the colour system that corresponds to your TV This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match. -
Page 16: Step 3: Setting Language Preference
Getting Started Step 3: Setting language preference You can select your own preferred language settings.This DVD system will automatically switch to the selected language whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead. -
Page 17: Disc Operations
“Setting up the TV”). Press STANDBY-ON on the DVD Player front panel. You should see the blue Philips DVD background screen on the TV. Press OPEN•CLOSE 0 button to open the disc tray and load in a disc, then press the same button again to close the disc tray. -
Page 18: Using The Disc Menu
Disc Operations Using the Disc Menu Depending on the disc, a menu may appear on the TV screen once you load the disc. To select a playback feature or item Use the 1 2 3 4 or numeric keypad (0-9) on the Remote Control, then press PLAY B to start playback. -
Page 19: Point
Zoom (DVD/VCD/JPEG) Zooming allows you to enlarge or reduce the video image during playback. Press ZOOM repeatedly to increase and decrease the playback video image. Press 1 2 3 4 to pan across the TV screen. Repeat (DVD/VCD/CD) Press REPEAT continuously to choose a Repeat mode during playback. -
Page 20: Time Search
Disc Operations Time Search (DVD/VCD) The Time Search function allows you to start playing at any chosen time on the disc. Press DISPLAY. Press 3 4 to highlight time search box. The on-screen display shows the total playing time of the title/chapter. Menu Menu TT Time... -
Page 21: Special Vcd & Svcd Features
Preview Function (DVD/VCD) The preview function allows you to reduce the picture of 6 tracks enough to display in a full screen. Press PREVIEW. The preview menu appears on the TV screen. Select Digest Type: Select Digest Type: Select Digest Type: Select Digest Type: Title Digest Title Digest... -
Page 22: Repeat (Mp3/Jpeg)
Disc Operations Repeat Press REPEAT continuously to access different ‘Play Mode’. SINGLE: play the selected file once, then return to the menu. REPEAT ONE: keep a JPEG image still on the screen or play an MP3 file repeatedly. REPEAT FOLDER: play all files in the selected folder repeatedly. -
Page 23: System Menu Options
Basic Operations Press SYSTEM MENU to enter the Setup Menu. Press OK to enter the next level submenu or confirm your selection. Press 1 2 to enter the submenu or return to the previous menu. Press 34 to highlight the desired menu. To exit from the menu Press SYSTEM MENU or select ‘Exit Setup Menu’... -
Page 24: Audio Setup Page
System Menu Options Audio Setup Page The options included in Audio Setup page are: ‘Speaker Setup’, ‘Digital Audio Setup’, ‘Dolby Digital Setup’, ‘Equalizer’ and ‘3D’. Press SYSTEM MENU. Press 1 2 to select the ‘Audio Setup’ page. Speaker Setup The options included in Speaker Setup are: ‘Downmix’... -
Page 25: Lpcm Output
LPCM Output If you connect the DVD Player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM Output’. Discs are recorded at a certain sampling rate. The higher the sampling rate, the better the sound quality. -
Page 26: Equalizer
System Menu Options Equalizer The options included in Equalizer is: ‘Sound Mode’. Press the 34 keys to highlight an option. Enter its submenu by pressing 2. Move the cursor by pressing the 34 keys to highlight the selected item. - - Equalizer Page - - Sound Mode None Rock... -
Page 27: Video Setup Page
Video Setup Page The options included in Video Setup page are: ‘TV Type’, ‘TV Display’, ‘Closed Captions’, ‘Angle Mark’, ‘Smart Picture’, and ‘Picture Setting’. Press SYSTEM MENU. Press 1 2 to select the ‘Video Setup’ page. - - Video Setup Page - - TV Type TV Display Closed Captions... -
Page 28: Angle Mark
System Menu Options Angle Mark Displays current angle setting information on the right hand corner of the TV screen if available on the disc. Press 34 to highlight ‘Angle Mark’. Enter its submenu by pressing 2. Move the cursor by pressing 34 to highlight the selected item. -
Page 29: Preference Setup Page
Preference Setup Page The options included in Preference page are: ‘Audio’, ‘Subtitle’, ‘Disc Menu’, ‘Parental’, ‘Password’ and ‘Default’. Press SYSTEM MENU. Press 1 2 to select the ‘Preference Page’. - - Preference Page - - Audio Subtitle Disc Menu Parental Password Default Go To Preference Page... -
Page 30: Password
System Menu Options Password This feature is used for Parental Control. Enter your four digit password when a hint is displayed on the screen. The default password is 1009. Press 34 to highlight ‘Password’. Enter its submenu by pressing 2. Press OK to open the ‘New Password’... -
Page 31: Specifications
TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE DA Converter 12 bit, 54kmHz Video Output 1Vpp — 75 ohm S-Video Output Y: 1Vpp — 75 ohm C: 0.3 Vpp — 75 ohm RGB (SCART) output 0.7 Vpp — 75 ohm AUDIO FORMAT Digital Mpeg... -
Page 32: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power... - Page 33 Problem No return to start-up screen when disc is removed The player does not respond to the Remote Control Buttons do not work Player does not respond to some operating commands during playback. DVD Player cannot read CDs/DVDs Menu items cannot be selected If you are unable to remedy a problem by following these hints, consult your dealer or service center (HOTLINE).
-
Page 34: Glossary
Glossary Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs.
