Assembly & Installation Instructions:
Ascent 2 Leg SB-ASC2-2-23-SM-DRMS,
SB-ASC3-2-23-SM-DRMS

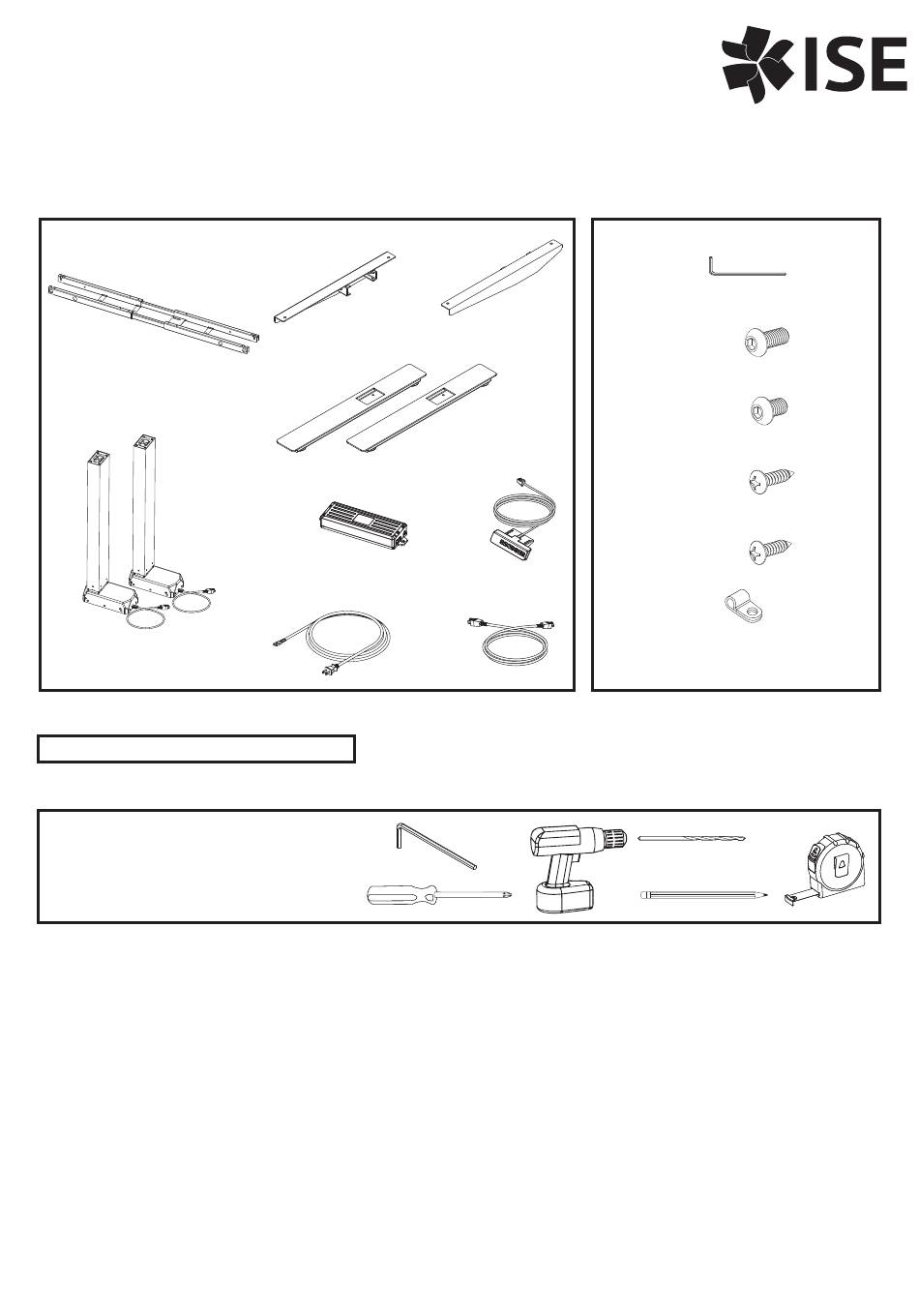

Parts Included, Frame Set
A
Frameset
Qty: 1
B
Legs
Qty:2
Required & Sold Separately
Worksurface
Tools Required
4 mm Allen Wrench (H) Provided
#2 Phillips Head Screwdriver or Drill/Driver
Drill with 1/ 8 " drill bit
Tape Measure
Pencil
ISE | (800) 463-7731 www.ise-group.com
C
D
Left Bracket
Qty:1
E
Feet with Glides
Qty:2
G
F
Control Box
Qty:1
H
I
Power Cord
Qty:1
Hardware pack
Right Bracket
Qty:1
10.5 mm
3.3 mm
14 mm
6 mm
M6 x 1 mm Thread
4 mm
Hex
10.5 mm
3.3 mm
10 mm
6 mm
Switch
M6 x 1 mm Thread
4 mm
Hex
Qty:1
Leg Extension Cord
Qty:1
TS-ET2 AI#: 90.014.01.0455v.A & TS-ET3 AI#: 90.014.01.0456v.A
J
4 mm Allen Wrench
Qty: 1
K
M6 × 14 mm Allen Head Screw
Qty: 12
L
M6 × 10 mm Allen Head Screw
Qty: 16
M
#12 × 3/ 4 " Phillips Head Wood Screw
Qty: 7
N
#12 × 9/ 1 6" Phillips Head Wood Screw
Qty: 2
O
Cable Clip
Qty:10
1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ISE Ascent 2 Leg SB-ASC2-2-23-SM-DRMS
Summary of Contents for ISE Ascent 2 Leg SB-ASC2-2-23-SM-DRMS
-
Page 1: Tools Required
Assembly & Installation Instructions: Ascent 2 Leg SB-ASC2-2-23-SM-DRMS, SB-ASC3-2-23-SM-DRMS Parts Included, Frame Set Hardware pack Frameset Left Bracket Right Bracket 4 mm Allen Wrench Qty: 1 Qty:1 Qty:1 Qty: 1 M6 × 14 mm Allen Head Screw Qty: 12 Feet with Glides M6 ×... - Page 2 #2 tip Phillips screwdriver or drill/driver #3 tip Phillips screwdriver or drill/driver M4 tip bit or 4 mm Allen Wrench provided (H) If you do not have a pre-drilled worksurface, you will also need: ⅛" drill bit 2 of 8 ISE | (800) 463-7731 www.ise-group.com...
- Page 3 Brackets inserted, tighten both screws securely. Switch on left Repeat for the other side of the Frame assembly. Hardware at actual size M6 × 14 mm Allen Head Screw ISE | (800) 463-7731 www.ise-group.com 3 of 8...
- Page 4 Attach the desk base to the underside of the desktop using seven #12 × 3/ 4 " Phillips Head Wood Screws (M). Hardware at actual size #12 × 3/ 4 " Phillips Head Wood Screw mark ½" at least 1" 4 of 8 ISE | (800) 463-7731 www.ise-group.com...
- Page 5 Allen Head Screws (K) and tighten in a cross- pattern. NOTE: The longer portion of the Foot faces the front. mark Longer portion Hardware at actual size ½" towards front M6 × 14 mm Allen Head Screw at least 1" ISE | (800) 463-7731 www.ise-group.com 5 of 8...
- Page 6 Connect the Power Cord (H) to the "AC" port on the Control Box (F). Use the adhesive-backed Cable Clips (O) to secure all cables so they stay up and out of the way. "AC" "M2" "M1" "HS" Control Box Bracket 6 of 8 ISE | (800) 463-7731 www.ise-group.com...
- Page 7 To clean the Ascent legs, apply cleaner to a soft cloth. Suggested cleaners: Windex or Formula 409. Do not use solvents and do not saturate or spray cleaners directly onto workcenter base. ISE | (800) 463-7731 www.ise-group.com 7 of 8...
- Page 8 8 of 8 ISE | (800) 463-7731 www.ise-group.com 1500233 Rev A...
