Assembly & Installation Instructions:
Ascent 3-Leg SB-ASC2-3-23-SM-DRMS,
SB-ASC3-3-23-SM-DRMS

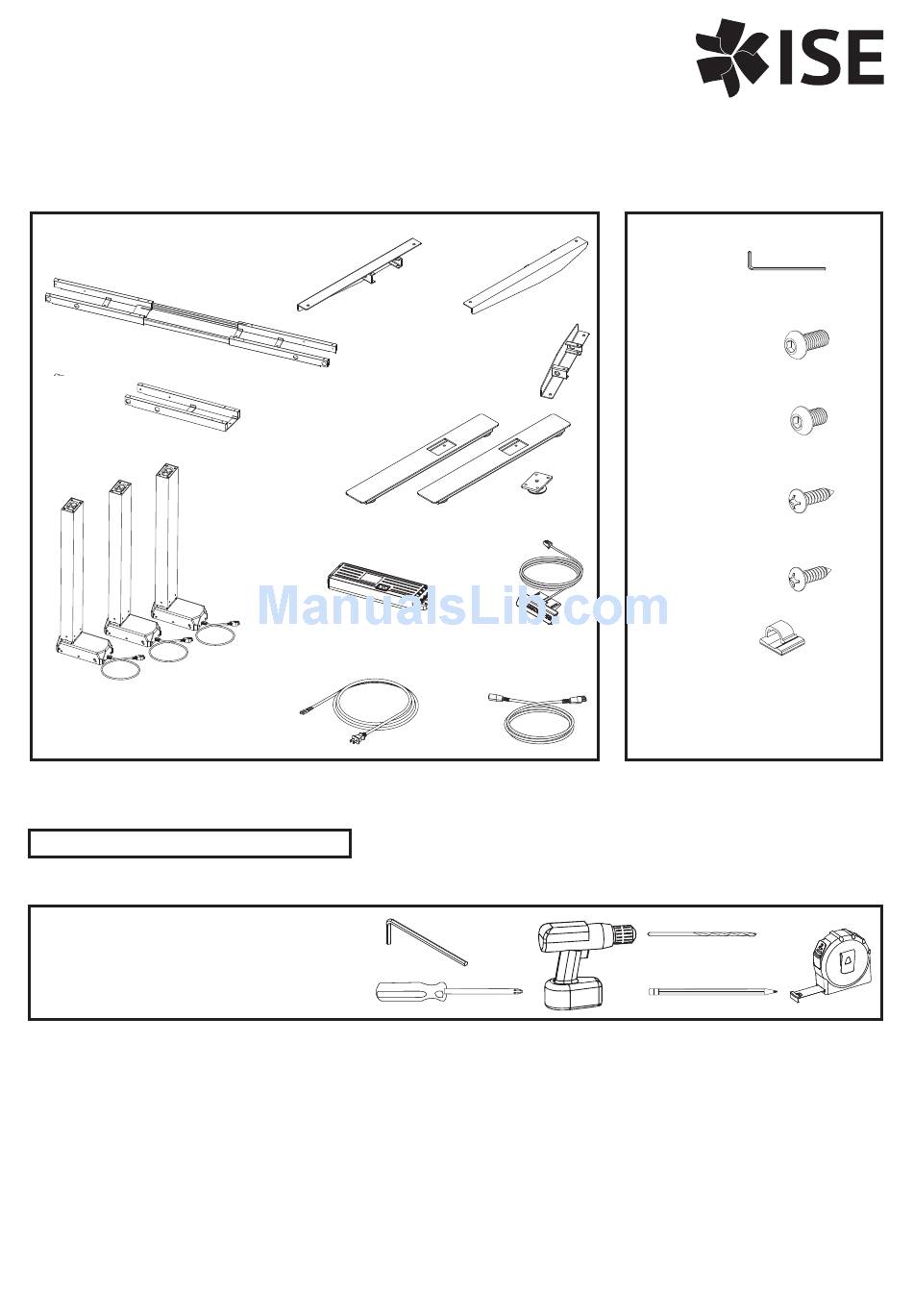

Parts Included, Frame Set
A
Long Frame
Qty: 1
B
Short Frame
Qty: 1
C
Legs
Qty:3
Required & Sold Separately
Worksurface
Tools Required
4 mm Allen Wrench (H) Provided
#2 Phillips Head Screwdriver or Drill/Driver
Drill with 1/ 8 " drill bit
Tape Measure
Pencil
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
D
E
Left Bracket
Qty:1
F
G
Feet with Glides
Qty:3
I
H
Control Box
Qty:1
J
K
Power Cord
Qty:1
Hardware pack
Right Bracket
Qty:1
Center Bracket
Qty:1
10.5 mm
3.3 mm
14 mm
6 mm
M6 x 1 mm Thread
4 mm
Hex
10.5 mm
3.3 mm
10 mm
6 mm
M6 x 1 mm Thread
4 mm
Hex
Switch
Qty:1
Leg Extension Cord
Qty:2
TT-ET2 AI#: 90.014.01.0457v.B & TT-ET3 AI#: 90.014.01.0458v.B
L
4 mm Allen Wrench
Qty: 1
M
M6 × 14 mm Allen Head Screw
Qty: 18
N
M6 × 10 mm Allen
Head Screw
Qty: 20
O
#12 × 3/ 4 " Phillips Head
Wood Screw
Qty: 13
P
#12 × 9/ 1 6" Phillips Head
Wood Screw
Qty: 2
Q
Cable Clip
Qty:15
1 of 8
Advertisement
Table of Contents
Related Manuals for ISE Ascent 3-Leg
Summary of Contents for ISE Ascent 3-Leg
-
Page 1: Tools Required
Assembly & Installation Instructions: Ascent 3-Leg SB-ASC2-3-23-SM-DRMS, SB-ASC3-3-23-SM-DRMS Parts Included, Frame Set Hardware pack Long Frame Left Bracket Right Bracket 4 mm Allen Wrench Qty: 1 Qty:1 Qty:1 Qty: 1 M6 × 14 mm Allen Head Screw Qty: 18 Center Bracket... -
Page 2: Important Note
CAUTION: INFORMATION: Make sure no obstacles are in the desk’s path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. Keep children away from electric height-adjustable desks, control units and handsets. There is a risk of injury and electric shock. Keep all electrical components away from liquids. - Page 3 Attach Legs to Frame To avoid stripping the threads, always insert and make the first few turns Place one of the Legs (C) into the Long of the screw BY HAND with an Allen wrench (H), ensuring it is in straight. Frame End (A).
- Page 4 Adjust Frameset to Width of Worksurface Adjust the width of the Frame assembly to fit the worksurface by sliding the two halves outward. Position to leave at least .5" of the worksurface width on each end beyond the frame width and 5.75" from the back of the Worksurface to the back of the 5.75"...
-
Page 5: Attach Feet
Lock Frame Width .5" Ensure that the M6 × 10 mm Allen .5" minimum minimum Head Screws (N) contacts the Lock the position of the Frame using eight Center Rails by sliding the Center Rails as needed. M6 × 10 Allen Head Screws (N) using the Allen Wrench. - Page 6 Attach Switch Attach the Switch (I) into pre-drilled holes, or flush with the front desktop edge (or recessed up to 1/ 8 ".) Place the Switch toward an end so it does not interfere with your chair when seated. Use two #12 × 9/ 1 6" Phillips Head Wood Screws (P) to attach.
-
Page 7: Cleaning Instructions
Put Workcenter Upright and Connect Power Cord to the Power Supply With the Workcenter at its lowest height, turn the assembled desk right-side up with at least two people. NOTE: Grab the desk Frame (not the desktop) and turn the desk right-side up. Use at least two people. CAUTION, Workcenter is very heavy! Plug the Power Cord (J) into a 110 V outlet. - Page 8 8 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1500236 Rev B...
