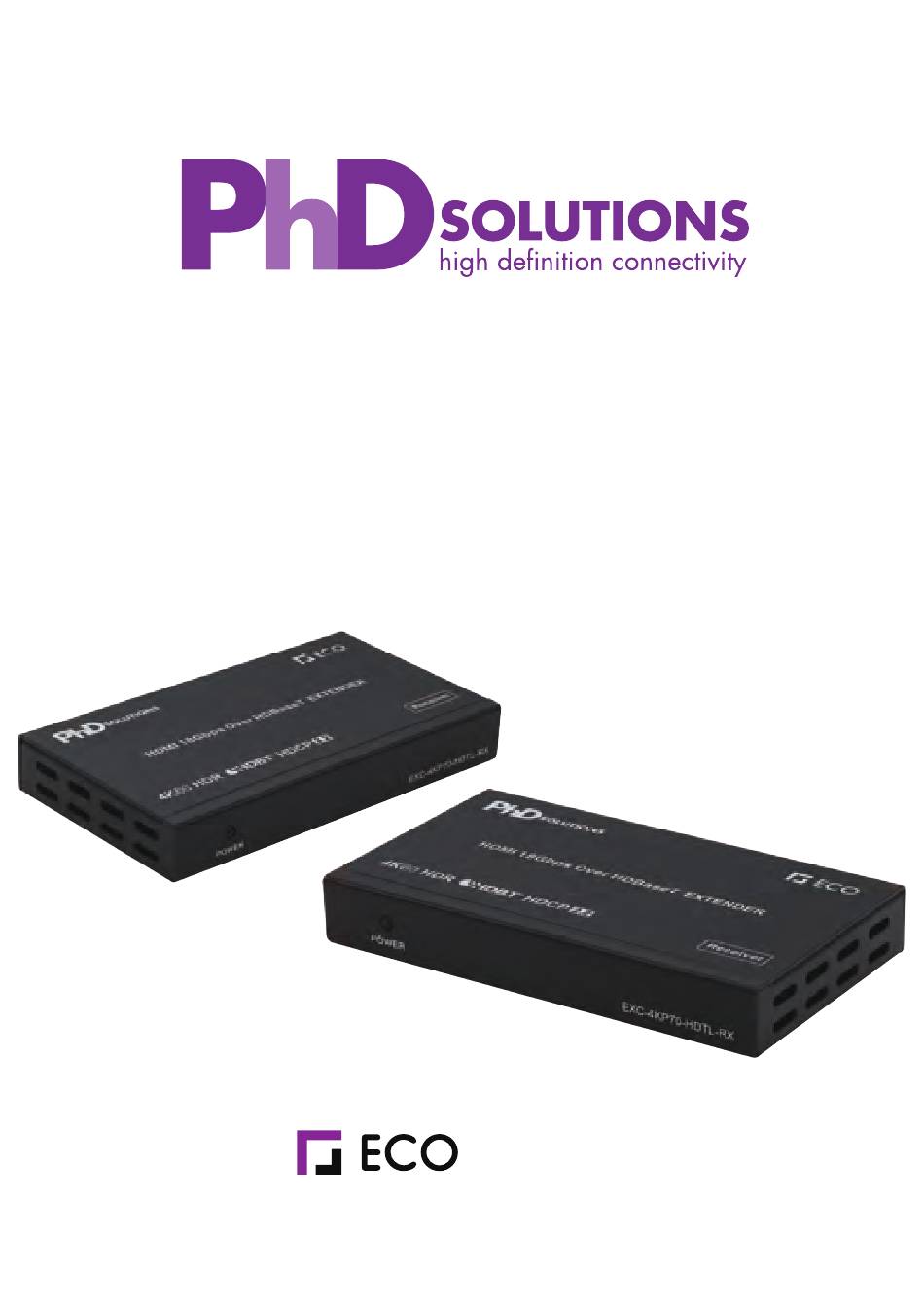

- Page 1 EXC-4KP70-HDTL-RX & TX HDMI 18Gbps HDBaseT™ Extender Over Cat Cable User Manual Series VER 1.0_27052019 EXC-4KP70-HDTL-TX-RX User Manual...
-
Page 2: Table Of Contents
CAT5e/6 cable, which can cause problems with the signal transmission. Only use the power supply supplied with the unit, or a PhD Solutions supplied repla- cement. Do not disassemble any of the equipment. This will void the manufacturer’s warranty. -
Page 3: Introduction
EXC-4KP70-HDTL-RX-TX USER MANUAL 1.Introduction The ECO HDMI extender transmitters and display receivers are built with the latest features, at economic price points and are tailored for the custom installer. They support HDMI2.0 4K60Hz 4:4:4 HDCP2.2 HDR-18Gbps over HDBaseT™ up to 40m and 1080P up to 70m.Embedded with CSC visually lossless compression technology they deliver HDMI, Bi-directional IR, RS232 and PoC power over a single CAT5E/6/6A cable. -
Page 4: Package Contents
PHD-OPTOCABLE-E: Optically isolated IR control cable, 3.5mm Mono to 3.5mm Stereo jack, for IR passthrough from third party control solutions to PhD Solutions ECO extenders. Compatible with 12v IR third party products. Note: Cable is directional -Mono end plugs into IR output of the control system -stereo end plugs into the IR input of the extender. -
Page 5: Specifications
EXC-4KP70-HDTL-RX-TX USER MANUAL 5.Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 600 MHz [18 Gbps] HDBaseT Class B Technology Colour Space Compression (CSC) up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P Video Resolutions @120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit... -
Page 6: Colour Space Conversion (Csc)
EXC-4KP70-HDTL-RX-TX USER MANUAL Mechanical Housing Metal Enclosure Color Black Dimensions Tx & RX 115mm [W] x65mm [D] x 17mm [H] Weight 405g Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 24W (Max) Operation Temperature 32 - 104°F / 0 - 40°CV Storage temperature -4 - 140°F / -20 - 60°C... - Page 7 EXC-4KP70-HDTL-RX-TX USER MANUAL Colour Space Conversion reduces the data rate of the HDMI signal by converting the colour space (or Wide Colour Gamut) from 4:4:4 or 4:2:2 to a lower format. Within Colour Space Conversion technology, the native resolution and frame rate remain constant from end to end.
-
Page 8: Operations Controls & Functions
EXC-4KP70-HDTL-RX-TX USER MANUAL 8.Operations Controls and Functions 8.1. HDBaseT™ Transmitter EXC-4KP70-HDTL-TX Name Function description This LED illuminates when the device is connected with POWER the power supply. Plug the supplied PHD_ADP0047 24V DC power supply into the unit and connect the adapter to the AC wall DC 24V outlet. - Page 9 EXC-4KP70-HDTL-RX-TX USER MANUAL The Phoenix Jack sends RS232 control Signals 7 RS-232 between the Transmitter & Display Receiver ※Illuminate: The Transmitter and Receiver connection status is GOOD Connection Signal ※Flashing: The Transmitter and Receiver connection Indicator Lamp status is POOR ※Dark: The Transmitter and Receiver are not connected.
- Page 10 EXC-4KP70-HDTL-RX-TX USER MANUAL Name Function description This LED illuminates when the device is connected 1 POWER with the power supply. No connection is required if powered by the transmitter (The Transmitter will power the display receiver from 2 DC 24V the HDbaseT IN port over PoC from the transmitter.) You can power the transmitter from the display receiver by connecting the 24VDC 1Amp power supply here.
-
Page 11: Example Diagrams
EXC-4KP70-HDTL-RX-TX USER MANUAL 9. Example Diagrams ※ Example 1 POC (Power Over Cable) Application Example: The system can be powered from either the Transmitter or Display Receiver side. Only plug the supplied PHD_ADP0047 24V DC into one end: either the Transmitter or the Display receiver ※... -
Page 12: Cable Termination & Best Practices
EXC-4KP70-HDTL-RX-TX USER MANUAL ※ Example 3 Bi-directional RS232 control Application Example: RS232 signals can be sent or received from both the transmitter and display receiver ends. RS-232 Cable RS-232 Cable RS-232 Cable RS-232 Cable 10.Cable Termination and best practices Sending High Bandwidth HDMI signals over Cat cable successfully is determined by the bandwidth capability of the cable network. - Page 13 EXC-4KP70-HDTL-RX-TX USER MANUAL 3. The CAT cable should be terminated properly with the correct RG45 connectors according toTIA568B termination standard as this is less prone to electromagnetic interference. 4. Avoid running the Cat cable close to or parallel with electric cables, near machinery or HVAC compressors 5.
-
Page 14: Application Diagram
EXC-4KP70-HDTL-RX-TX USER MANUAL 11. Application Diagram www.phdsolution.co... -
Page 15: Troubleshooting
EXC-4KP70-HDTL-RX-TX USER MANUAL 12. Troubleshooting Should you encounter installation difficulties or issues with device communication, the following checklist of common issues and causes should help resolve your issues. If you still continue to experience issues, please contact your place of purchase. NO OR POOR PICTURE QUALITY: •... - Page 16 PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts, or replace it with a new or refurbished product.
- Page 17 Repair or replacement may be made with a new or refurbished product or components, at PHD Solutions’ sole discretion. If the Product or a component incorporated within it is no longer available, PHD Solutions may replace the Product with a similar product of similar function, at PHD Solutions’ sole discretion.
- Page 18 5. LIMITATION OF DAMAGES In addition to the above warranty disclaimers, in no event will PHD Solutions be liable for any consequential, incidental, exemplary, or special damages, including any damages for lost data or lost profits, arising from or relating to this limited warranty or the product, and PHD Solutions’...
- Page 19 EXC-4KP70-HDTL-RX-TX USER MANUAL 6.LIMITATION OF LIABILITY PHD Solutions disclaims all liability of any kind of PHD Solutions’ suppliers. The PHD Solutions online services (“services”) may provide you information (“product information”) regarding your products performance and/or peripherals connected to your product (“product peripherals”).
- Page 20 EXC-4KP70-HDTL-RX-TX USER MANUAL www.phdsolutions.co Series www.phdsolution.co...
