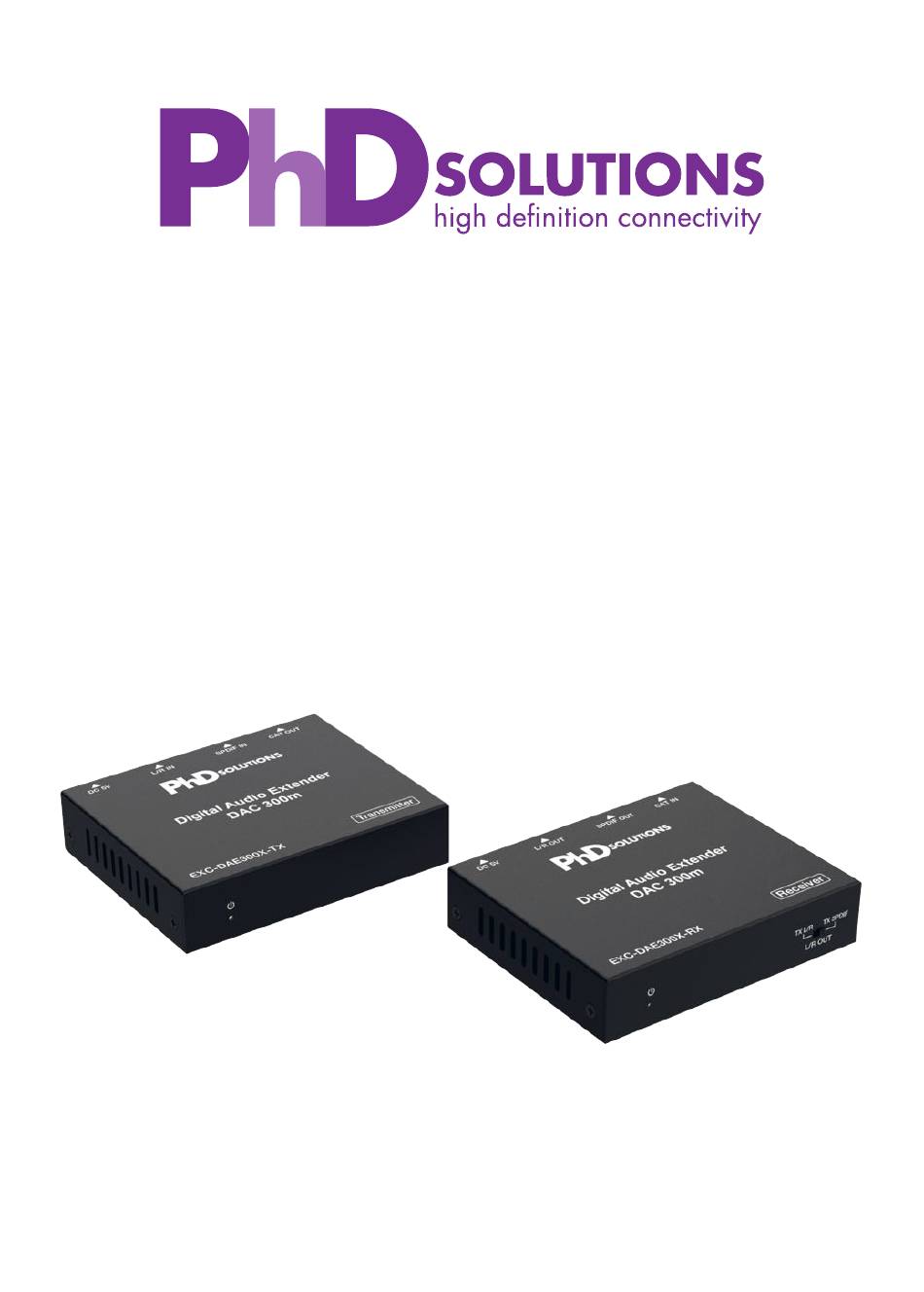

- Page 1 EXC-DAE300X-KIT Optical/Stereo Audio DAC Extender over CAT Cable (300m) User Manual VER 1.0...
-
Page 2: Table Of Contents
Safety and performance Notice Only use the power supply supplied with the unit, or a PhD Solutions supplied replacement. Do not disassemble any of the equipment. This will void the manufacturer’s warranty. -
Page 3: Introduction
1. Introduction The Audio Extender can transmit digital optical/toslink and analog audio signals simultaneously up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT5E/6 cable. The digital optical audio is directly passed from transmitter to receiver. The analog audio output on receiver is selectable from the digital optical or the analog audio signal from transmitter. -
Page 4: Package Contents
3. Package Contents ① 1× Audio Extender (Transmitter) ② 1× Audio Extender (Receiver) ③ 1× USB Cable (USB-A to Micro-USB port) ④ 1× User Manual 4. Specifications Technical Bitrate over Distance 192kHz - 100m, 96kHz - 150m, 48kHz - 300m Optical: All audio formats, including LPCM 2.0, LPCM 5.1, Supported Audio Dolby Digital 2/5.1CH... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Black Color Dimensions Transmitter / Receiver: 90mm [W] × 72mm [D] × 20mm [H] Weight Transmitter / Receiver: 174g Power Supply DC 5V/1A Power Consumption 1.5W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity... -
Page 6: Receiver
5.2 Receiver L/R OUT CAT IN SPDIF OUT DC 5V TX L/R TX SPDIF L /R OUT Function Description Name When the receiver is powered on, the power LED will be on. Power LED Use this switch to select audio source for the L/R OUT port. Switch to “TX L/R”: The L/R OUT port outputs the analog audio L/R OUT audio from the L/R IN port of the transmitter. -
Page 7: Application Example
6. Application Example L/R IN CAT OUT SPDIF IN DC 5V Transmitter USB Power Cable CAT5E/6 Cable DVD or Blu-ray Player L/R OUT CAT IN SPDIF OUT DC 5V Receiver Amplifier 2.0 Speakers 5 / 10... -
Page 8: Cat Cable Termination Diagram
The CAT cable should be terminated properly with the correct RG45 connectors according to TIA568B termination standard shown below. 8. Phd Solutions Product Warrantee IMPORTANT INFORMATION ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU. - Page 9 Please check with your installer for their purchase date. If the Product fails to conform to this Limited Warranty during the Warranty Period, PHD Solutions will, at its sole discretion, either (a) repair or replace any defective Product or component;...
- Page 10 CLAIM UNDER THIS LIMITED WARRANTY Before being able to claim under this Limited Warranty, the owner of the Product must (a) notify PHD Solutions of the intention to claim during the Warranty Period and providing a description of the alleged failure, and (b) comply with PHD Solutions’...
- Page 11 Product, or software (even if packaged or sold with the product). PHD Solutions recommends that you use only authorized service providers for maintenance or repair. Unauthorized use of the Product or software can impair the Product’s performance and may...
- Page 12 You use all product information, the services, and the product at your own discretion and risk. You will be solely responsible for (and PHD Solutions disclaims) any and all loss, liability, or damages, including to your hvac system, plumbing, home, product, product peripherals, computer, mobile device, and all other items and pets in your home, resulting from your use of the product information, services, or product.
- Page 13 www.phdsolutions.co...
