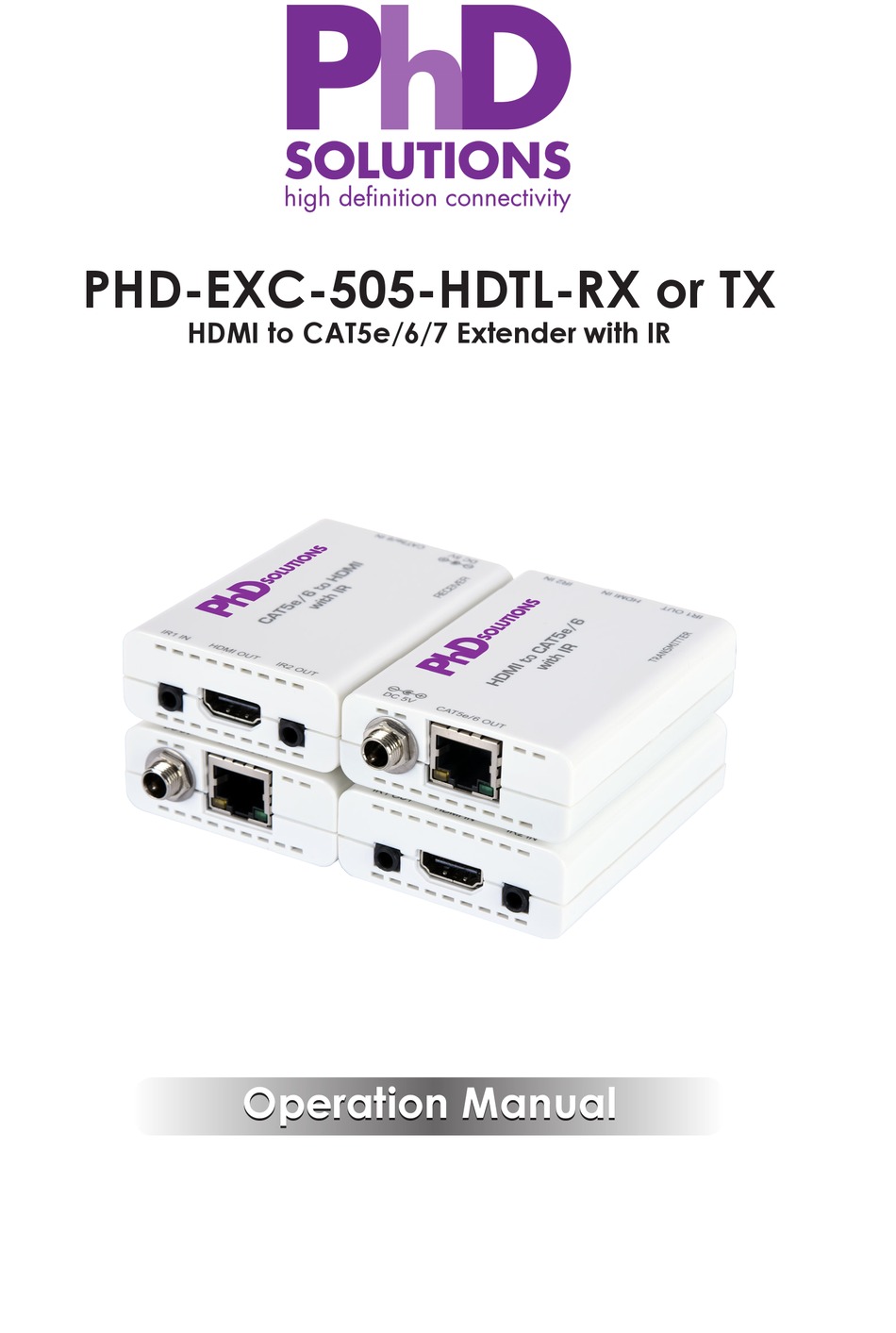

- Page 1 PHD-EXC-505-HDTL-RX or TX CH-514TXLN/RXLN HDMI to CAT5e/6/7 Extender with IR Operation Manual Operation Manual...
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. • ...
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 Transmitter and Receiver Top Panels .. -
Page 5: Introduction
1. INTRODUCTION The HDMI Extender over single CAT5e/6/7 incorporating IR signal transfer allows for a more effi cient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) and supports High Defi nition Audio and 3D signals. Designed with HDBaseT technology for greater fl exibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6/7 cable. 2. APPLICATIONS • ... -
Page 6: Features
5. FEATURES • HDMI with 3D, 4K2K support, HDCP and DVI compliant • Supports HDMI (including HDCP) over a single CAT5e/6/7 up to 60m • Full HD resolution support (1080p@60Hz/36-bit), 3D, 4K2K@24/25/30& 4K2K YUV420 and PC resolution support (VGA to WUXGA) over CAT5e/6 cable • HDMI input up to 6m with 8/12-bit resolution or 5m with 4K2K resolution • ... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 5V CAT5e/6 OUT IR1 OUT HDMI IN IR2 IN IR1 OUT/Blaster Connect to the supplied IR Blaster for IR signal transmission to the source equipment from IR1 IN's IR signal. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. -
Page 8: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels DC 5V CAT5e/6 IN IR1 IN HDMI OUT IR2 OUT DC 5V Plug the 5V DC power supply into the unit and connect the Plug the 5V Desktop Power Supply Unit with power cord into the adaptor to an AC outlet. -
Page 9: Transmitter And Receiver Top Panels
6.3 Transmitter and Receiver Top Panels CAT5e/6 to HDMI CAT5e/6 to HDMI HDMI to CAT5e/6 HDMI to CAT5e/6 with IR with IR with IR with IR TRANSMITTER TRANSMITTER RECEIVER RECEIVER 6.4 IR Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Blu-ray Player 1.5m 1.5m 60° 60° IR Blaster IR Blaster Power Supply TXLN TXLN Power Supply 60° 60° CAT5e/6 CAT5e/6 Power (60m) (60m) Supply Power Supply RXLN RXLN 1.5m 1.5m 60° 60° IR Extender IR Extender HDMI Cable HDMI Cable 60°... -
Page 11: Specifi Cations
8. SPECIFICATIONS 8. SPECIFICATIONS Video Bandwidth Video Bandwidth 340 MHz/10.2 Gbps 340 MHz/10.2 Gbps Transmitter Transmitter Inputs Inputs 1×HDMI, 1×IR Extender 1×HDMI, 1×IR Extender Outputs Outputs 1×RJ45, 1×IR Blaster 1×RJ45, 1×IR Blaster Receiver Receiver Inputs Inputs 1×RJ45, 1×IR Extender 1×RJ45, 1×IR Extender Outputs Outputs 1×HDMI, 1×IR Blaster 1×HDMI, 1×IR Blaster ESD Protection ESD Protection Human Body Model: Human Body Model:... -
Page 12: Cat5E/6/7 Cable Specifi Cation
8.1 CAT5e/6/7 Cable Specifi cation Cable Type Range Pixel clock Video Data Supported Rate Video rate CAT5e/CAT6 60 m <=225 MHz <= 5.3 Gbps Up to 1080p, 60 Hz, 36-bit, 3D (HD Video) (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). 35 m >225 MHz >... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition multimedia Interface Infrared... - Page 14 Should you feel your product does not function adequately due to defects in materials or 1. Damage requiring service workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: All units should be serviced by a PhD Solutions qualified service person.: Repair the product with new or 2.
- Page 15 Product Service Provided 1. Damage requiring service 1. Damage requiring service All units should be serviced by a PhD Solutions qualified service person.: All units should be serviced by a PhD Solutions qualified service person.: 2. Servicing Personnel 2. Servicing Personnel Do not attempt to service the unit beyond that described in these operating instructions.
- Page 16 2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor is not liable for incidental or consequential damage resulting from the use of this product or arising out of any breach of this warranty. 2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor is not liable for incidental or consequential damage resulting from the use of this For example: damage for lost time, the cost of having a person/persons remove or re- ¥...
- Page 18 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
