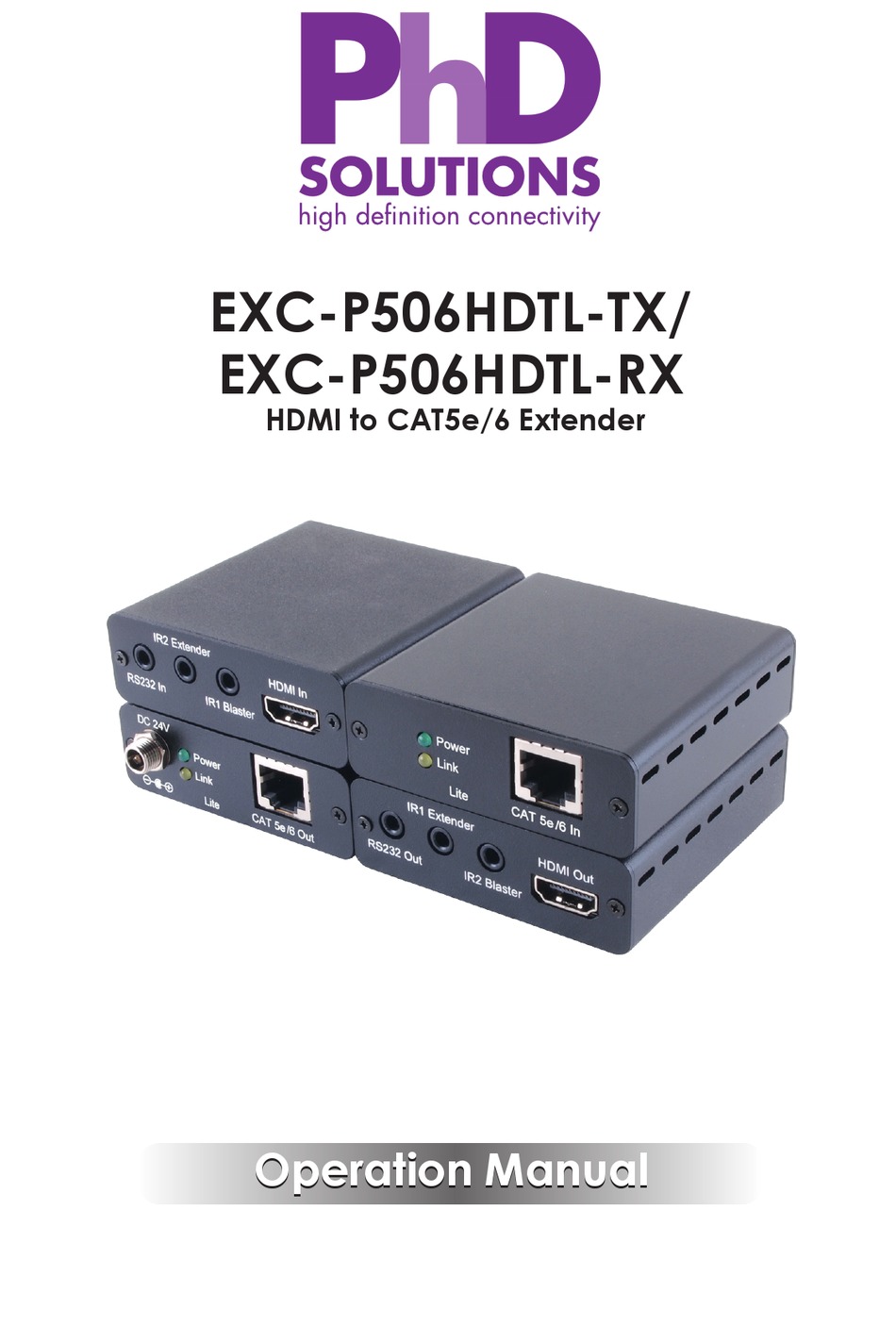

Page 1: Operation Manual
DE-617TXL & DE-617RXPL CH-506TXPL & RXPL EXC-P506HDTL-TX/ EXC-P506HDTL-RX HDMI to CAT5e/6 Extender HDMI to CAT5e/6 Extender Operation Manual Operation Manual... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Pin Assignment ........ -
Page 4: Introduction
1. INTRODUCTION The HDBaseT-Lite HDMI over single CAT5e/6 with bidirectional IR, RS- 232 & PoE transmitter and receiver set can make your home or offi ce set-up more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoE function and added benefi... -
Page 5: Features
5. FEATURES • Compatible with HDCP and DVI • Supports HDMI 3D and 4K x 2K features • Supports HDBaseT-Lite Technology • Supports HD resolutions up to 1080p@60Hz/36-bit • Supports distance up to 60 meters through CAT5e/6/7 cable • HDMI input/output up to 15 meters with 8bits resolution or 10 meters with 12bits resolution •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 24V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster Lite CAT 5e /6 Out DC 24V Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 7: Receiver Front And Rear Panels
HDMI In Connect with source equipment such as DVD/Blu-ray player. 6.2 Receiver Front and Rear Panels IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster Lite CAT 5e /6 In Power LED This LED will illuminate when the device is connected from the transmitter with power supply. -
Page 8: Ir Pin Assignment
6.3 IR Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Grounding 6.4 D-Sub 9 Pin Defi nitions Defi ne TX / RX TxD/RxD RxD/TxD... -
Page 9: Specifi Cations
7. SPECIFICATIONS Video Bandwidth 300MHz/10.2Gbps Transmitter Input 1 x HDMI, 1 x IR Extender, 1 x RS-232 Output 1 x RJ45, 1 x IR Blaster Receiver Input 1 x RJ45, 1 x IR Extender Output 1 x HDMI, 1 x IR Blaster, 1 x RS-232 ESD Protection Human Body Model: ±8kV (air-gap discharge) - Page 10 CAT5e/6/7 Cable Specifi cation Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock).
-
Page 11: Connection And Installation
8. CONNECTION AND INSTALLATION DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° IR Extender Power Supply IR2 Extender HDMI In RS232 In IR1 Blaster DC 24V Power Link Lite CAT 5e /6 Out Single CAT5e/6 Cable... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition multimedia Interface Infrared... - Page 13 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
-
Page 14: Warranty Limits And Exclusions
Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product. - Page 15 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
