LUMENWERX AXLE Installation Instructions

AXLE

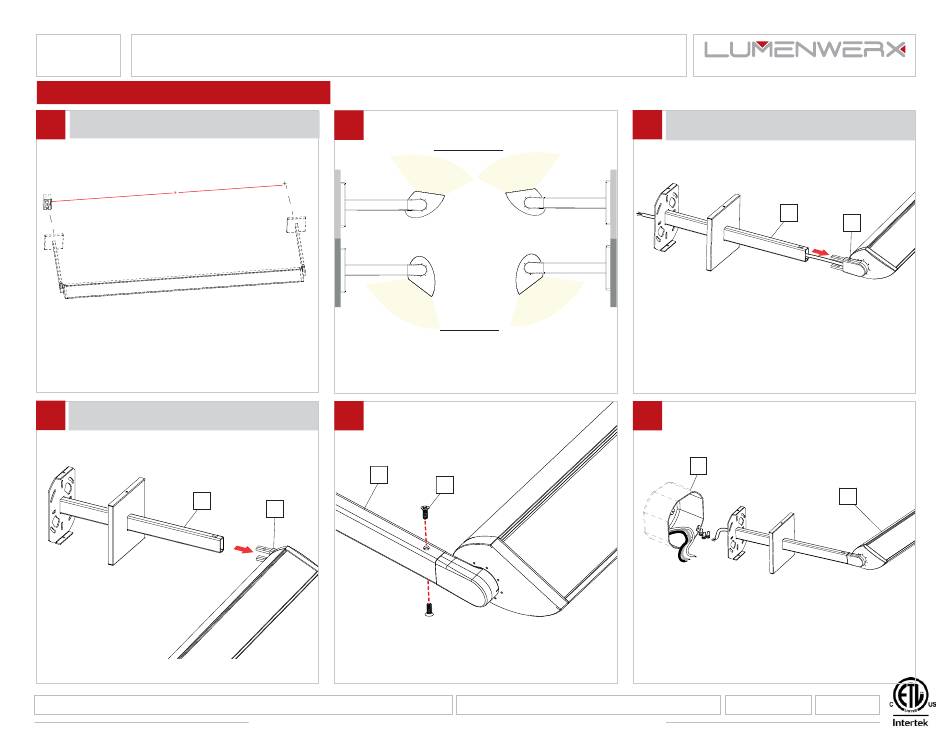

WALL MOUNT - INSTALLATION INSTRUCTIONS
NOTE: Wire dimming conductors as Class 1
1
SINGLE FIXTURE
Locate junction box and mounting points on the
wall, according to the dimensions in the supplied
client drawing.
4
NON-POWER SIDE
B
Install the fixture's arm (B) on the end cap (A).
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
2
Indirect light
Determine what orientation the fixture should be
before attaching the arm to the fixture.
5
B
A
Secure the fixture's arm (B) with provided screws
(C). Repeat on both sides.
LumenWerx ULC. reserves the right to change or modify product specifications without notification
Direct light
C
FILE NAME:AXLE-WALL-MOUNT-INST
W W W . L U M E N W E R X . C O M
3
POWER SIDE
B
Make sure that the power cable coming from the
fixture's end cap (A) is passing through the fixture's
arm (B). Install the fixture's arm (B) on the end cap
(A).
6
E
Make electrical connexion between fixture (D) and
junction box (E), inside the junction box (connect
the same color wires together).
November 8, 2019
A
D
Page: 1 / 5
