LUMENWERX VIA 2 Installation Instructions

VIA 2

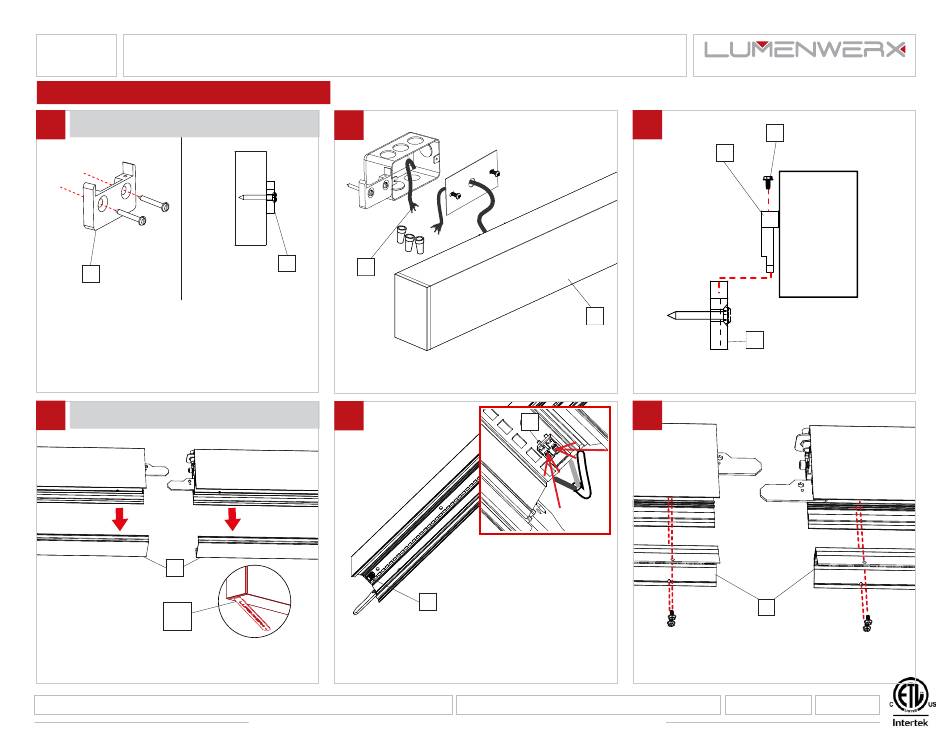

WALL MOUNT - INSTALLATION INSTRUCTIONS
NOTE: Wire dimming conductors as Class 1
1
SINGLE FIXTURE
A
SIDE VIEW
Locate wall bracket position using provided client
drawing. Install mounting brackets (A) to wall.
Align with structural stud (need double studs –
distance between screws is 1.250") or use metal
anchors with min. length 1.250". Flat head Philips
drive screw, nominal size #10, min. length 1.250".
4
CONTINUOUS SYSTEM
F
Lens
Tool
Remove the lenses (F) of all the fixtures in the run
with the included lens tool. If direct/indirect or
indirect, also remove the top lenses.
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
2
A
C
Make wire connection between fixture (B) and
wall power cable (C).
5
G
Disconnect LED molex connector (G) by taking a
pointed object and pressing on the two tabs on the
top.
LumenWerx ULC. reserves the right to change or modify product specifications without notification
B
Number of wires may vary.
G
FILE NAME:VIA2-WALL-MOUNT-INST
W W W . L U M E N W E R X . C O M
3
E
D
A
Insert fixture bracket (D) into wall bracket (A), and
secure in place with suplied screws (E).
6
H
Remove all the end LED cartridges (H). If direct/
indirect or indirect, also remove the top cartridge .
November 15, 2019 Page: 1 / 3
