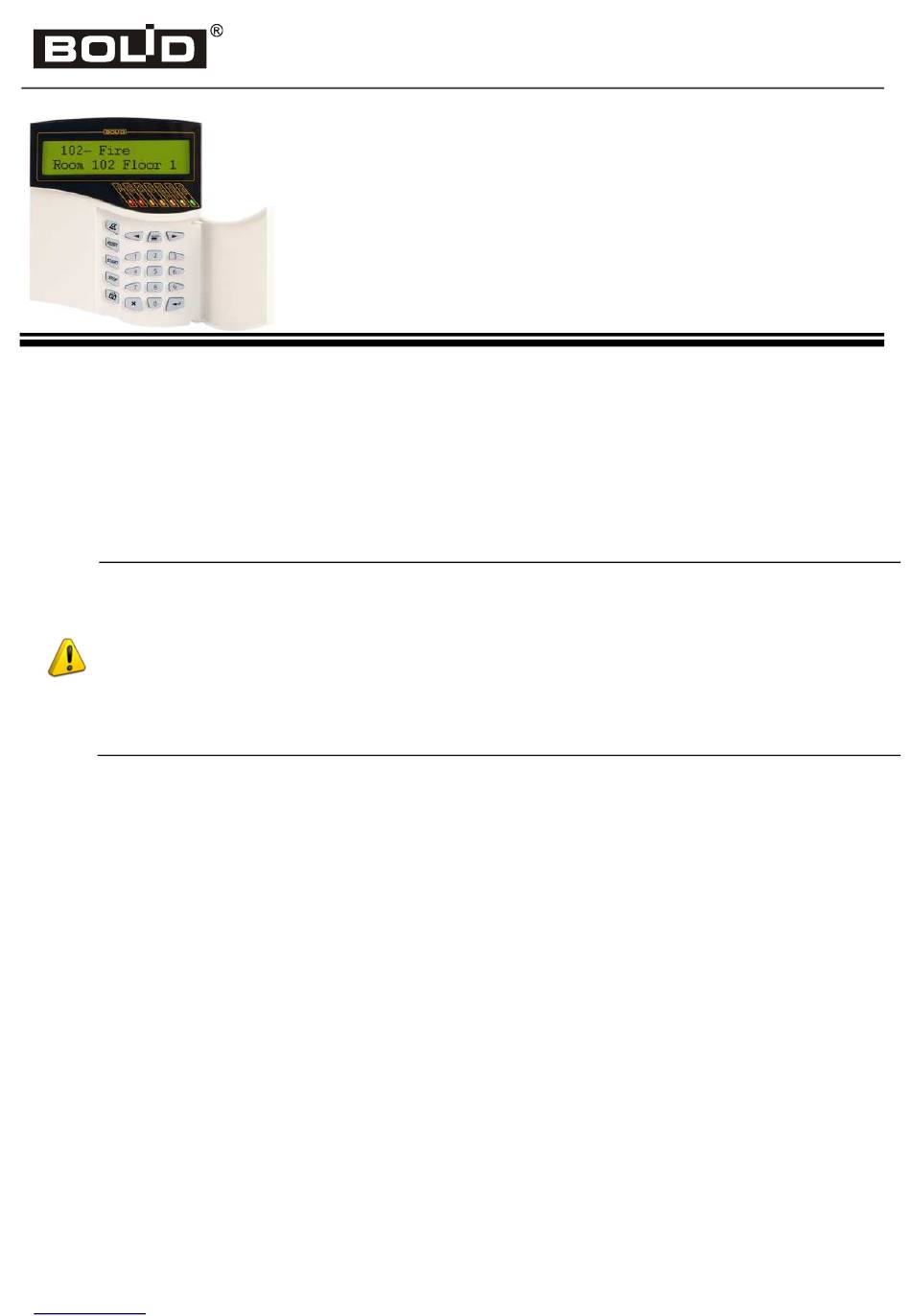

bolid S2000M Installation Manual

Fire and intrusion monitoring and control panel
Hide thumbs Also See for S2000M:

Advertisement

Quick Links

Download this manual See also: Maintenance Manual
This Installation Guide provides basic instructions for installation of the S2000M panel and
getting it ready to work.
Description and instruction for the panel programming and usage are provided in the User's
Guide (it can be found on the supplied CD or downloaded at bolid.ru).
1
CAUTION
- The panel does not have circuits containing hazardous voltages.
- The design of the panel complies with the requirements of electrical and fire safety as per
Russian Standards GOST 12.2.007.0-75 and GOST 12.1.004-91.
- The design of the Panel ensures its fire safety in case of malfunction and misuse according
to GOST 12.1.004091
- Installation and maintenance work can be provided only when the panel power supply
is OFF
- Installation and maintenance shall be carried out by personnel qualified for the Electrical
Safety of Level Two or higher.
2
INSTALLATION
The panel shall be installed in secured areas in easy-for-access locations keeping the
panel protected from atmospheric perceptions and mechanical damage. Usually, the panel is
installed on vertical surfaces (walls) at height of 1.4-1.5 meter above the floor. It is not
recommended installing the panel in areas where it can be exposed to the direct sunlight.
The Panel is not designed to be used in aggressive, dust, explosive and fire-hazardous
environments
Figure 1 shows the panel's view, dimensions, and installation layout. The connection
shall be provided as shown in Figure 3.
http://bolid.ru/
S2000M
Fire and Intrusion
Monitoring and Control Panel
Installation Guide
ORION ISS
1
