1.1
General
1.1.1 The S2000-SP1 mod.01 Executive Relay Module (hereinafter referred to as the
module) is designed to operate as a part of fire alarm systems, intrusion alarm systems, and
access control systems. It operates under control of a fire and alarm console
S2000 / S2000M or a PC with installed Orion Pro software.
1.1.2 Within intrusion alarm systems and access control systems the module is designed to
control various executive devices (lamps, sirens, electromagnetic locks, etc.), to send alarms
to a Central Monitoring Station by means of opening relay contacts, and to cooperate with
other devices and systems on relay level. In fire alarm systems the module is designed to
generate a start pulse for a fire extinguishing control panel.
1.1.3 The module is to be mounted inside the premises and is destined for round-the-clock
operation.
1.1.4 The module must not be used in aggressive medium or dust condition, or in explosion-
hazardous premises.
1.1.5 The module is intended to be used at operating temperatures −30°С to +55°С.
1.2 Specifications
1.2.1 The module is to be supplied by an external power supply with output voltage
10.2 V dc through 28.4 V dc. It is recommended to use battery backed power supplies of RIP-
12 or RIP-24 series manufactured by the Bolid Company.
1.2.2 The module power consumption is no more than 4 W.

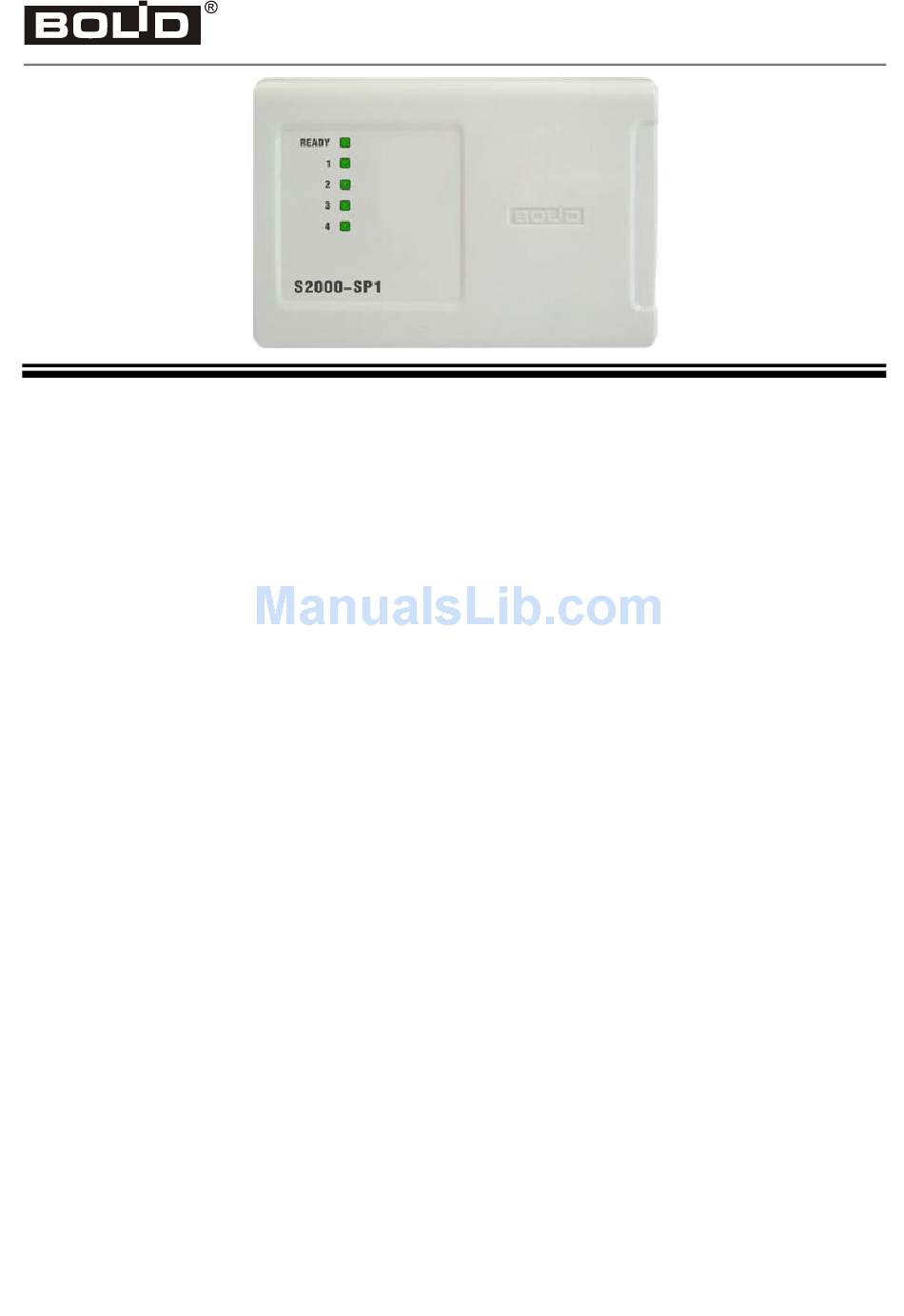

EXECUTIVE RELAY MODULE
S2000-SP1 modification 01 (ver. 1.56)
1 GENERAL TECHNICAL DATA
ORION ISS
INSTRUCTION MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the S2000-SP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for bolid S2000-SP1

  • Page 1 1 GENERAL TECHNICAL DATA General 1.1.1 The S2000-SP1 mod.01 Executive Relay Module (hereinafter referred to as the module) is designed to operate as a part of fire alarm systems, intrusion alarm systems, and access control systems. It operates under control of a fire and alarm console S2000 / S2000M or a PC with installed Orion Pro software.
  • Page 2 1.4.1 Operating algorithms of the module’s relays are defined in the configuration of the network controller (either S2000 console or PC under ORION Pro software), which controls the relays by means of commands being sent to the S2000-SP1 mod.01 relay module over the RS-485 interface bus.
  • Page 3 Controlling the relays: switching the relay on in accordance with some executive – program; Restarting the module; – Reading module statuses: reading conditions of module’s power inputs and tamper – switch; – Reading ADC values: reading power voltage at the module power inputs; –...
  • Page 4 3. No communication over the RS-485 interface Flashes once per second 4. Self-diagnostic mode Flashes five times per second 5. Updating software or program memory failure Flashes twice per second 1.4.4.1 While operating, the module monitors the voltage at its power inputs and, depending on the given value of Both Power Inputs Monitoring parameter (see Clause 1.4.6), automatically detects a failure.
  • Page 5 (provided that the module operates under a console S2000 of a version less than 1.20). If the module S2000-SP1 mod.01 operates under an S2000 console of a version 1.20+ or Orion Pro software, the activation time is defined during configuring the S2000 or programming Orion Pro database, with values of the relevant parameters of the S2000-SP1 mod.01 module being ignored.
  • Page 6: Maintenance

    On (1) or Switch On for a Time (3), with the initial condition for the relay being equal to “Off”. 3 MAINTENANCE 3.1 General To make sure your S2000-SP1 mod.01 module keeps proper operability, it must be inspected by a competent specialist at least on receipt and annually. The inspection algorithm shall include: Visual checking the S2000-SP1 mod.01 against contaminations and mechanical...
  • Page 7 S2000-SP1 mod.01. If several messages accumulated by the module have been received by the console, you can browse them by the arrow buttons «◄»...
  • Page 8 ANNEX A S2000-SP1 mod.01 Overall and Mounting Dimensions ∅ 7 READY Guide elements for DIN-rail mounting S2000-SP1 ∅ 3 Two holes Snap-on clip for DIN-rail mounting To remove the cover, press here and pull out...
  • Page 9 ANNEX B S2000-SP1 mod.01 Connection Diagram S2000-SP1 mod.01 COM4 "4" COM3 "3" To executive devices COM2 "2" COM1 "1" RS-485 (from a previous system device) Backup Power Supply XT1.1 (optional) RIP-12 (RIP-24) +12V (+24V) XT1.2 Main Power Supply "READY" RIP-12 (RIP-24)
  • Page 10 BOLID ONE YEAR LIMITED WARRANTY Bolid Company and its divisions and subsidiaries («Seller»), 4 Pionerskaya Str., Korolev 141070, Moscow Region, Russia warrants its security equipment (the «product») to be free from defects in materials and workmanship for one year from date of original purchase, under normal use and service.
