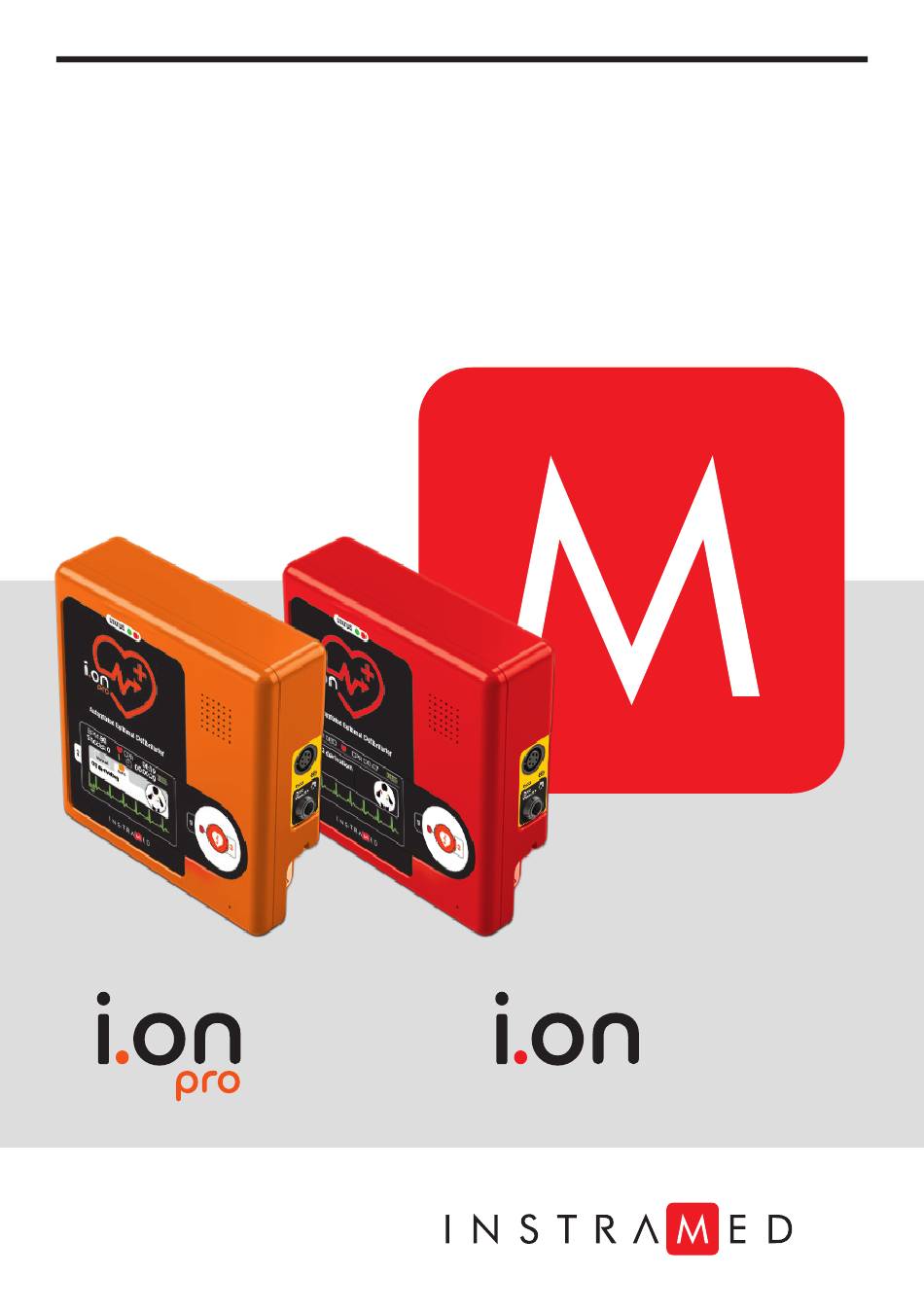

- Page 1 Quick reference guide AUTOMATED EXTERNAL AUTOMATED EXTERNAL DEFIBRILLATOR DEFIBRILLATOR WITH MANUAL FUNCTION...
- Page 2 For information about warranty or technical assistance, please contact Instramed’s technical support. Copyright © 2017 Instramed. The Ion/Ion PRO, Instramed and its respective logos are trademarks of Instramed Indústria Médico Hospitalar Ltda. The internal software of this product is Instramed’s intellectual property, being protected under international copyright laws.
- Page 3 (see battery specifications in chapter 8). When the device presents a drop in battery performance, with low autonomy, please request a new unit from Instramed’s technical assistance. The battery can be withdrawn through the rear opening through a quick-release system.
-
Page 4: Table Of Contents
Index Presentation Characteristics ......................06 Safety information About this guide ......................07 Use criteria ....................... 07 Qualified users ......................07 Attention ........................07 Warnings ........................08 Adverse events or side-effects ................. 09 Precautions ....................... 10 Important recommendations ..................10 The equipment Front Panel - Models Ion and Ion PRO with LCD screen ......... - Page 5 Quick reference guide | Index Rear connectors ....................... 19 Charging the battery ....................19 Operating in AED mode Operating in manual mode Step 1 ........................24 Step 2 ........................25 Step 3 ........................26 Step 4 ........................26 Step 5 ........................26 Simplified diagram of procedure in adults ..............
-
Page 6: Presentation
Presentation The Ion/IOn PRO is a new generation Semi-Automated External Defibrillator (AED). Using Neural Network technology, the Ion/Ion PRO guides by voice, makes the diagnosis, considers clinical variables and applies treatment safely with the touch of only a single button. ION PRO In its PRO version, the Ion/Ion offers the flexibility of the manual mode, which allows the health care professional to select the parameters of shock delivery treatment,... -
Page 7: Safety Information
Safety information About this guide This guide does not substitute the user manual. Its function is to familiarize the user with the main functions and ways of operating the equipment. For detailed information on the functioning of the Ion/Ion PRO, please consult the user manual on the CD which accompanies the product. -
Page 8: Warnings
NOTICE: disposable accessories and any other components must be disposed of according to the norms of hospital waste disposal. NOTICE: do not modify this equipment without authorization from instramed. ATTENTION: the adhesive pads cannot be in contact with the patient while... -
Page 9: Adverse Events Or Side-Effects
Guia de referência rápida | Safety information The pads should not be placed on the patient while Ion/Ion PRO is connected to the mains via its AC/DC external source. The same way Ion/Ion PRO should not be connected to the mains via its AC/DC external source, while the pads are positioned on the patient. -
Page 10: Precautions
The current versions of technical standards can be verified on the Product Conformity Certificate, available at www.instramed.com.br. More information on this topic is available in the Ion/Ion PRO User Manual present on the CD which accompanies the product. -
Page 11: The Equipment
The equipment Front Panel - Models Ion and Ion PRO with LCD screen 1. Touch screen: presents operational 3. Speaker. information and allows for manual 4. Start button. interaction with the device. 5. Microphone (when available). 2. Operational status indicator. -
Page 12: Touch Screen
Quick reference guide | The equipment 1 - Touch screen A) Model Ion (with LCD screen) The Ion displays the following items on screen when connected to the patient: 00:19 00:00:20 0.25 1. Heart beats per minute. 4. Orentation message. 2. - Page 13 Quick reference guide | The equipment B) Model Ion PRO - Automatic mode As default, the device starts operating in AUTOMATIC MODE. In this configuration, the Ion/Ion PRO presents the following items on the screen when connected to the patient: 00:19 00:00:20 0.25...
-
Page 14: C) Model Ion Pro - Manual Mode
Quick reference guide | The equipment C) Model Ion PRO - Manual mode If the user decides to switch to manual mode, the equipment will function as a standard defibrillator. In this situation, it will be necessary to select the appropriate charge according to the type of patient without the Ion/Ion PRO’s intervention or orientation. -
Page 15: Front Panel - Model Ion Without Lcd Screen
Quick reference guide | The equipment Front panel - Model Ion without LCD screen 1. Indicative LEDs of the care stage. 2. Operational status indicator 3. Speaker. 4. Start button. 5. Microphone (when available). 1 - Indicative LEDs of the care stage. Visual accompaniment LEDs of the care stage: light up in sequence. -
Page 16: Operational Status Indicator
Quick reference guide | The equipment 2 - Operational status indicator *Check availability for daily, weekly or monthly auto-test configuration. VISUAL INDICATOR Indicates that the equipment is operational and ready for use. Indicates that the device HAS NO SUFFICIENT CHARGE IN BATTERY TO OPERATE or presents another internal fault. -
Page 17: Speaker
Quick reference guide | The equipment 3 - Speaker The Ion/Ion PRO is a highly complex equipment which, from the moment of activation, assesses the steps of the operation and the general state of the patient. Based on this analysis, the device guides the user through verbal commands which may be warnings, instructions or status messages. -
Page 18: Microphone (Optional)
ATTENTION: disposable pads have defined expiration date. Check the enclosure for limit date for use and, if it is not used within this time, replace them with a new pair. ATTENTION: only use original pads, supplied by Instramed. Failure to do so may result in malfunction. -
Page 19: Rear Connectors
1. Battery compartment. 2. USB connector. ATTENTION: in case of battery replacement, use original replacements from Instramed supplied by its authorized distributors. Charging the battery To recharge the rechargeable battery, only remove it from the equipment and connect it to the charger, using the input indicated below. - Page 20 Quick reference guide | The equipment VISUAL INDICATOR Visual indicators of the charging process may be found in the charger. 1. BATTERY LED. On: indicates that the internal battery is being charged. Off: indicates complete charge. 2. MAINS LED. On: indicates that the equipment is connected to the mains supply.
-
Page 21: Operating In Aed Mode
Operating in AED mode When in AED mode (Automated External Defibrillator), the Ion/Ion PRO identifies arrhythmias and selects the energy charge automatically. Ion/Ion PRO, on AED mode, is in accordance with American Heart Association 2015 Guidelines. Equipment analyzes patient’s condition. Place pads on Analysis is patient. - Page 22 ATTENTION: the pads are disposable and can be used in only one patient at a time. Remember to always keep extra ones with the equipment. For replacements, please contact Instramed. ATTENTION: the user must not touch the patient or conductive surfaces in contact with him/her during shock delivery, under risk of suffering a powerful electric discharge.
-
Page 23: Operating In Manual Mode
Operating in manual mode The Ion/Ion PRO enables manual mode operation, as a conventional defibrillator. In this situation, the device does not interfere with the treatment, and the user is responsible for choosing the energy, charging the charge and delivering the shock. -
Page 24: Step 1
Quick reference guide | Operating in manual mode Step 1 Before starting the operation, please call the emergency service. If the disposable pads have not been connected to the Ion/Ion PRO yet, attach the connector to the plug on the right side of the equipment. After disposing of used pads, always leave a replacement pair already connected to the equipment, avoiding having to replace them at the moment of the emergency. -
Page 25: Step 2
Quick reference guide | Operating in manual mode Step 2 Remove pads from their wrapping and peel off the film protecting the adhesive. Place pads on the patient according to the picture above, keeping adhesive area in contact with the skin. This position allows the electric current to circulate from one pad to the other, thus reaching the whole thoracic cage. -
Page 26: Step 3
Quick reference guide | Operating in manual mode Step 3 Analyzing heart rhythm... Press “START” button. Press the MANUAL button on the device’s screen. Confirm this choice on the following screen. The Ion/Ion PRO will switch to manual mode. Step 4 buttons to select the desired charge. -
Page 27: Simplified Diagram Of Procedure In Adults
Quick reference guide | Operating in manual mode Simplified diagram of procedure in adults Healthcare professional. Unconscious - Conscious Check patient’s condition - Panting Not breathing Wait for emergency Call emergency team service No pulse Place victim on a dry, flat and steady area - Place pads - Activate the Ion/Ion PRO... - Page 28 Quick reference guide | Operating in manual mode Layperson Unconscious Call emergency service - Conscious Check patient’s condition - Panting Not breathing Wait for emergency team Place victim in a dry flat steady area - Place pads - Activate the Ion/Ion PRO Restarts the cycle Restarts the cycle The Ion/Ion PRO analyzes...
-
Page 29: Ecg Monitoring
ECG monitoring ECG monitoring is available with the use of the 3-leads ECG cable (optional) on models with an LCD display. The Ion/Ion PRO monitors only the DII ECG derivation. The ECG sweep speed is fixed at 25 mm/s. The device may operate in 3 distinctive ways: •... -
Page 30: Cpr Maestro
CPR Maestro The CPR Maestro is an accessory from Ion/Ion PRO, created to help rescuers perform compressions in accordance with the latest CPR recommendations. Its sensors measure the frequency and depth of chest compressions, providing the user with real-time feedback. These information are displayed on CPR Maestro and Ion/Ion PRO screens and through sound recommendations. -
Page 31: Using The Cpr Maestro
Quick reference guide| CPR Maestro Using the CPR Maestro 1 - Connect the CPR Maestro to Ion/Ion PRO, using the input indicated below, located on the side of the equipment. 2 - Place the device on the patient’s chest, according to the image on the side. -
Page 32: Pc Connection
USB connector into the product and PC. The product will use the USB power to turn on. • The location of the device drivers to be installed will be required. They can be found in this folder: C:\Program Files\Instramed\SoftDEA\DRIVERS. • Start the SoftDEA application. - Page 33 Quick reference guide | PC connection • On the language selection screen, choose among Spanish, English or Portuguese. You only have to select a language the first time you start the software. • After the software reads the Ion/Ion PRO data (see following section), the ECG and the events list will appear on the software’s screen.
-
Page 34: Care And Maintenance
Remember to check the status of the operational status indicator at least every 30 days. Corrective Maintenance If the equipment needs repair, this can only be done by INSTRAMED or its authorized representative, otherwise this Warranty certificate may no longer be valid. -
Page 35: Warranty Certificate
This also applies in case of alterations made to this contract, the fiscal receipt, or to the equipment’s serial number. Instramed Indústria Médico Hospitalar Ltda. is not responsible for the improper use of this equipment, by people who are not familiar with its function or the techniques recommend for its proper use. - Page 36 AUTOMATED EXTERNAL AUTOMATED EXTERNAL DEFIBRILLATOR DEFIBRILLATOR WITH MANUAL FUNCTION www.instramed.com.br +55 (51) 3073 8200...
