Introduction

1
The LM5017 Fly-Buck™ evaluation board provides multiple isolated outputs. By default
it has 4 isolated outputs, while it is designed to be easily reconfigured as a dual output
supply by changing the transformer.
The board's specifications are as follows:
Arrow.com.
Downloaded from
LM5017 Fly-Buck™ Quad/Dual Isolated
Input voltage range: 17V to 32V, nominal 24V
Isolated outputs:
o Quad output configuration: +/-15V@50mA, +/-5V@100mA
o Dual output configuration 1: +/-5V@250mA
o Dual output configuration 2: +/-15V@75mA
Switching frequency: ~260kHz
Board size: 2.2 inch x1.69 inch

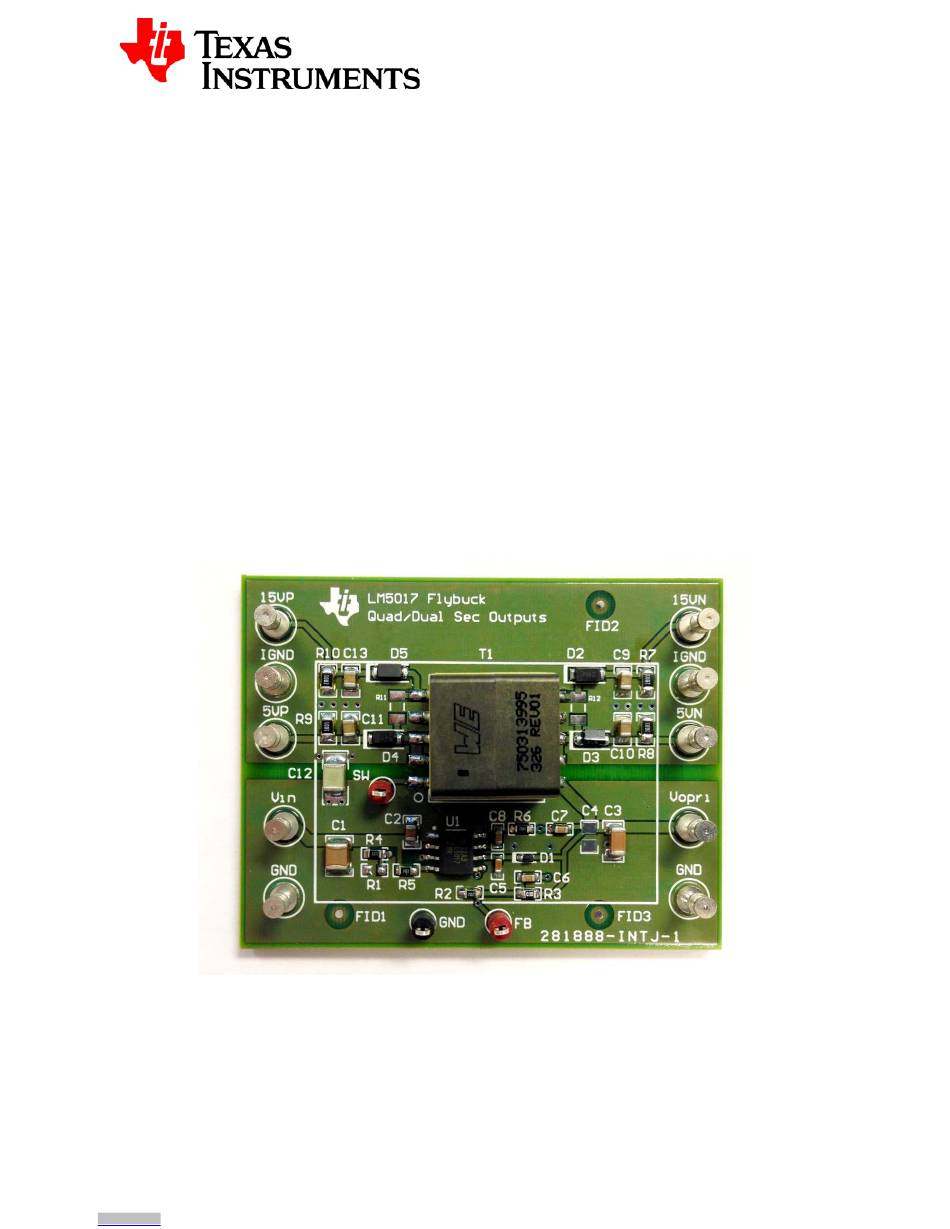

Figure 1 LM5017 Fly-Buck™ Evaluation Board
Supply Evaluation Board
User's Guide
