Program XBee Gateway using Python
The desc element displays the meaning of the error identifier. The hint element provides an
explanation with the cause of the received error.
Example: Turn on an LED on the XBee interface board
To turn on the User LED 4 (DS4) of the XBee Interface Board (XBIB):
1. Ensure the XBee node you are going to configure is attached to an XBIB device. You will change
the status of the User LED 4 (DS4) of the board by modifying the value of the DIO4 of the XBee
node because they are connected each other.
2. From a web browser, go to the Home page of your XBee Gateway
3. Under Configuration, click XBee Network. The XBee Configuration page appears.
4. Click the Discover XBee Devices button to locate the remote XBee devices that are in the
same network as XBee Gateway.
5. Click the XBee device that you want to configure.

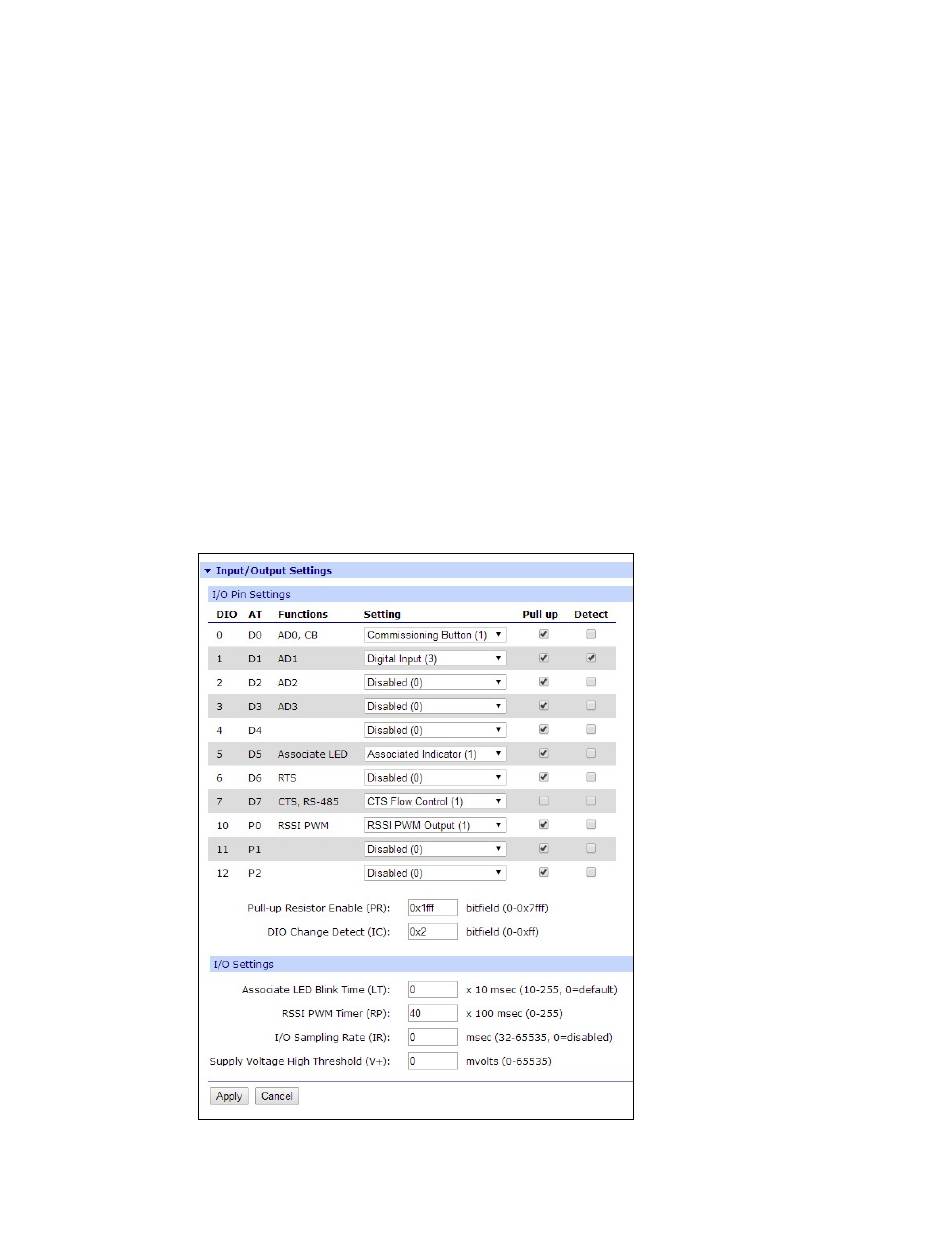

6. From the XBee Configuration page, click Input/Output Settings.
7. Under I/O Pin Settings, configure I/O Pin 4 (AT setting D1) to Digital Output High (5). This
way, the DIO4 is configured as output and its value is set to high turning the User LED 4 (DS4)
OFF because the LED in the board is using an inverted logic.
