MAINTENANCE AND STORAGE
Inspect and tighten all parts of the PROFORM 770S
regularly. The 770S can be cleaned with a soft, damp
cloth. To prevent damage to the console, keep liquids
away from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console does not function properly, the batteries
should be replaced. To replace the batteries, see
assembly step 4 on page 7.

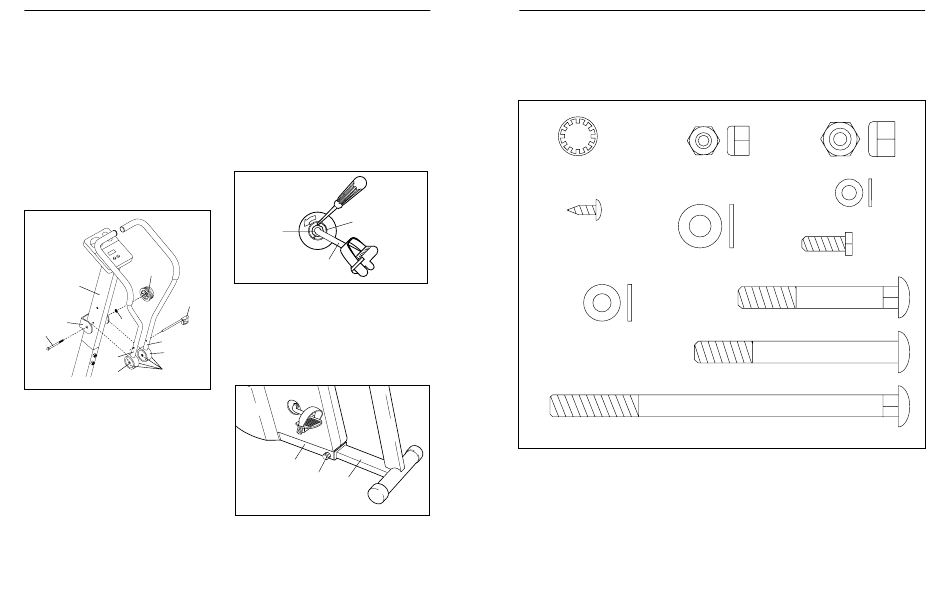

HANDLEBAR LUBRICATION
If a squeak is heard when the Handlebars (5, 6) are
moved, a small amount of grease should be applied.
11
4
53
10 14
16
6
72
5
Lubricate
72
Remove the Lock Pin (53). Turn the Resistance Dial
(11) counterclockwise and remove it. Remove the
M10 Star Washer (14). Using pliers, grip the head of
the 3/8" x 6" Carriage Bolt (16) and remove it. Apply a
thin film of grease to both sides of the Handlebar
Housings (72). Reattach all parts, making sure that
they are in the positions shown.
CRANK ADJUSTMENT
If the arms of the Crank (17) become loose, they
should be tightened in order to prevent excessive
wear. Loosen the Crank Nut (24) on the left arm of the
Crank. Place the end of a standard screwdriver in one
of the slots in the Slotted Crank Nut (22). Lightly tap
the screwdriver with a hammer to turn the Slotted
Crank Nut counterclockwise until the arms are no lon-
ger loose. Do not overtighten the Slotted Crank
Nut. When the Slotted Crank Nut is properly tighte-
ned, tighten the Crank Nut.
22
24
17
HOW TO STORE THE PROFORM 770S
When the 770S is not in use, it can be folded for com-
pact storage. Refer to the drawing below. Loosen the
Lock Knob (38). Slide the Handlebar Frame (2) into
the Frame (1) as far as it will go. Tighten the Lock
Knob. Store the 770S indoors, away from moisture
and dust.
1
38
2
12

ONDERDELEN IDENTIFICATIE KAART

Gebruik de kaart hieronder om u te helpen met de
identificatie van de kleine onderdelen die in montage
worden gebruikt. De nummer tussen haakjes geeft het
ondredeel nummer aan. Het tweede getaal geeft het
aantal gebruikt in montage. Aandacht: Sommige
M8 Nylon Locknut (46)—4
M10 Star Washer (14)—1
(May be attached to seat)
Console Screw (12)—4
(May be attached to console)
M10 Flat Washer (57)—2
5/16" Flat Washer (26)—4
(May be attached to seat)
onderdelen zijn al gemonteerd om het verzenden
te vergemakkelijken. Als u niet een onderdeel in
de zak met onderdelen knut vinden. Bekijk dan
het apparaat om te zien of dat onderdeel al
gemonteerd is.
3/8" Nylon Locknut (56)—4
M12 OD Flat Washer (73)—2
1/4" x 1" Screw (54)—2
3/8" x 2 3/4" Carriage Bolt (63)—2
3/8" x 3 1/2" Screw (55)—2
3/8" x 6" Carriage Bolt (16)—1
5
