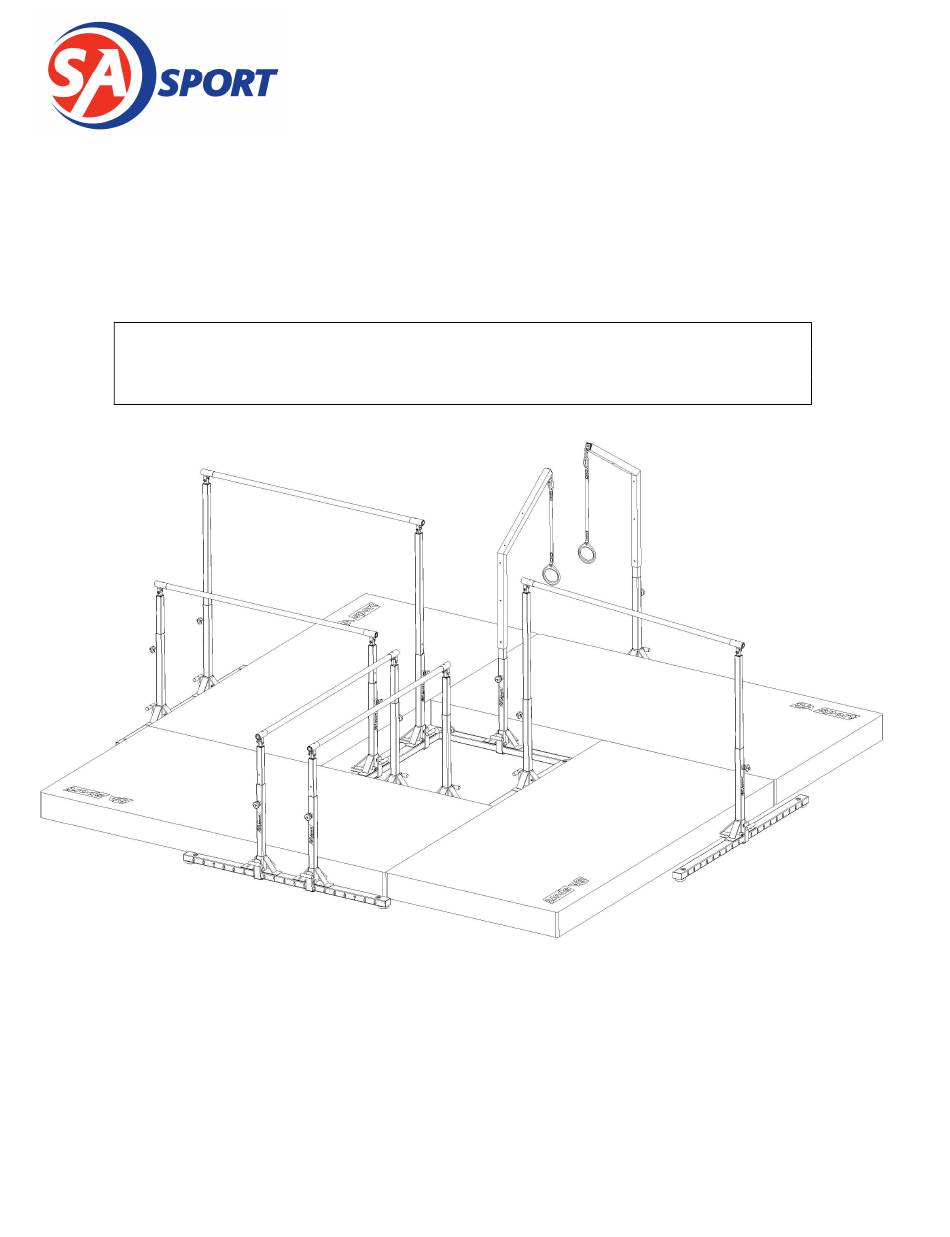

Be sure to read and follow all Safety Instructions in Section III of this booklet before attempting to use the apparatus! For information on Replacement Parts, please see Section IV of this booklet. Pg. 2 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Just for Kids - Attaching Rings to Ring Frame Assembly Changing Just for Kids Apparatus Configurations Height Adjustments Horizontal Adjustments of Uprights SECTION III Safety Safety Instructions SECTION IV Spare Parts Spare parts Pg. 3 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Assembled c/w Rings & mounting hardware 1 pr. • 4 Station Circuit Base (#355-154) o Complete with tie-down hardware 1 ea. • 4 pcs set Circuit Mat (#355-230) 1 set Pg. 5 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Assembly includes the following items: • Ring Frame Adjusting Tubes (#355-306) o Complete with ring mounting hardware 2 ea. • Rings Assembly (#355-110) o Assembled c/w straps & Quick Link 1 pr. Pg. 6 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
HEAD SCREW JFK Upright Assembly Part #355-05. (Fig. 2) Ensure the assembly is stable before proceeding. Note: Refer to the Main JFK Assembly literature for complete details on Base fastening and assembly of all other CONNECTION BLOCK related components for the particular Just For Kids Apparatus.
FIG 2 (FIG 2). When securing equipment to floor anchors using bolts, a torque value of 20 ft lbs is recommended. Pg. 9 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Ensure that the numbers on the side of the bases, the adjustment scale face away from centre. 2. Install 1 or 2 JFK upright assemblies (355-05) between the 2 (355-01) Base Assemblies (FIG 1), Tighten the clamp (FIG 1A) on the lower section of each side of the “JFK” (355-05) Uprights by turning Clockwise, this will assist in maintaining the correct width and alignment.
Page 11
8. Reposition the apparatus over the floor anchor and bolt down the Base Assemblies (see FIG 1) loosely. Ensure that Base assemblies are Parallel to each other and install 1 or 2 “JFK” upright assemblies (355-05) on to the 2 Bases (355-01), this will assist in maintaining the correct width between the bases as well as maintaining them parallel to each other.
Page 12
FIG 4A FIG 4 Note: Never place a floor anchor into a crack, or an area within 9” from a crack or into the edge of the concrete. Pg. 12 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Page 13
Assemblies (see FIG 4) loosely. Ensure that Base assemblies are Parallel to each other by installing 1 or 2 “JFK” upright assemblies (355-05) on to the 2 Bases (355-01), this will assist in maintaining the correct width between the bases as well as maintaining them parallel to each other.
Assembly at the opposite end of the Rail. FIG 7 7. If you are assembling Just for Kids Parallel Bars or Uneven Bars, repeat Steps 1 through 6 with the other Rail and Inner Tube assemblies. Pg. 14 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Page 15
JFK - Rail & Inner Tube Assembly to Uprights Assembly This procedure will require at least two (2) qualified persons. At no time should children or other unqualified personnel undertake any part of this procedure. 1. Locate one (1) Upright Assembly (#355-05).
Page 16
Assembly is either mounted & locked to the Base Assemblies or well clear of the working area and cannot be accidentally tipped over. UPRIGHT END BASE TUBE 3/8” FLAT HEAD SCREW CONNECTION BLOCK Pg. 16 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
1. Locate the Ring Assemblies (#355-110). FIG 10 2. Open the quick links on the Ring Assemblies and mount them to the Ring Frames. Close the quick links securely. (See FIG 10) Pg. 17 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
Note: Ensure that the Snap Lock Devices are fully engaged in a locking hole. 6. With the Snap Locking Devices fully engaged, tighten the Spin Lock Portion securely, by turning the round disc clockwise. Pg. 18 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
7. Always inspect this equipment for loose fittings and parts. Replace any worn, defective or missing parts. 8. Always inspect this equipment for improper or unsafe installation. If in doubt, do not use this equipment. Pg. 19 JFK Product & Installation Instructions #8920100 Feb 2, 2015...
