eControls Comfort365 C365W21 User Manual

Comfort

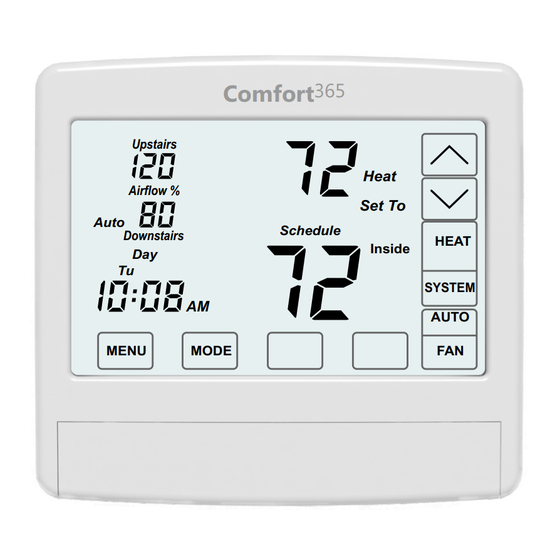

The Comfort365 is a touch screen programmable
thermostat that controls heating, cooling and airflow.
The thermostat monitors the upstairs temperature
sensor and automatically adjusts the upstairs and
downstairs airflow to provide uniform comfort.
The energy saving nighttime option uses the upstairs
temperature sensor to control heating and cooling
calls and increases the upstairs airflow.
The user can manually adjust the airflow on
occasions when more airflow is needed upstairs or
downstairs.
User Options and Settings
Quick Reference
Set Time and Day
Set System Mode
Set Fan Mode
Factory Set Schedule
Change Factory Set Schedule
Temperature Override
Set Thermostat Mode
Changing Setpoint Temperature
Quick Reference
Displays the Thermostat Mode
HOLD, SCHEDULE or VACANT
Displays the upstairs airflow
and downstairs airflow.
Displays the Airflow Mode
AUTOMATIC or MANUAL
Displays time, day and schedule
MORNING, DAYTIME, EVENING
or NIGHT
MENU Key
Display and Set Schedule
Set Nighttime Airflow Option On or Off
Set Nighttime Airflow in Heating
Set Nighttime Airflow in Cooling
Clean Touch Screen
THERMOSTAT MODE Key
SCHEDULE
Setpoint temperature changes at scheduled times
HOLD
Setpoint temperatures are set by user, not schedule.
VACANT
Setpoint temperatures are kept at the vacant
temperatures set by the installer.
365
Displaying Upstairs Temperature
Overriding Automatic Airflow
Terminating Automatic Airflow
Turning Nighttime Airflow Option On or Off
Setting the Nighttime Airflow in Heating
Setting the Nighttime Airflow In Cooling
Selecting Manual or Auto Airflow
Cleaning the Touchscreen
Changing Batteries
Upstairs
Airflow %
Auto
Downstairs
Day
Tu
AM
MENU MODE
Upstairs
Airflow %
Auto
Downstairs
Day
Tu
AM
MENU MODE
Heat
Set To
Schedule
HEAT
Inside
SYSTEM
AUTO
FAN
ENTER Key
Used to save options
and return to thermostat
operation
NEXT Key
Used to advance through options
User Manual
Model C365W21
Rev A Nov 2016
365
Comfort
Heat
Set To
Schedule
HEAT
Inside
SYSTEM
AUTO
FAN
Wireless Sensor Locations
If two wireless upstairs temperature
sensors have been installed, there
are removable labels on the sensors
indicating the sensor number. Enter
the location, for example master
bedroom, for sensor #1 and sensor
#2 below for future reference.
Sensor #1
Sensor #2
Displays the heating or cooling
setpoint temperature
Displays the downstairs (Inside)
or upstairs (Inside2) temperature.
UP/DOWN Keys.
SYSTEM MODE Key
OFF Heating/cooling systems are off.
HEAT Controls heating system only.
COOL Controls cooling system only.
AUTO Controls heating or cooling
depending on indoor temperature.
FAN MODE Key
AUTO Fan runs only when the heating
or cooling system is on.
ON Fan is continuously on.
