FAIRCHILD T6100 Electro-Pneumatic Transducers
Installation, Operation and Maintenance Instructions
INSTALLATION

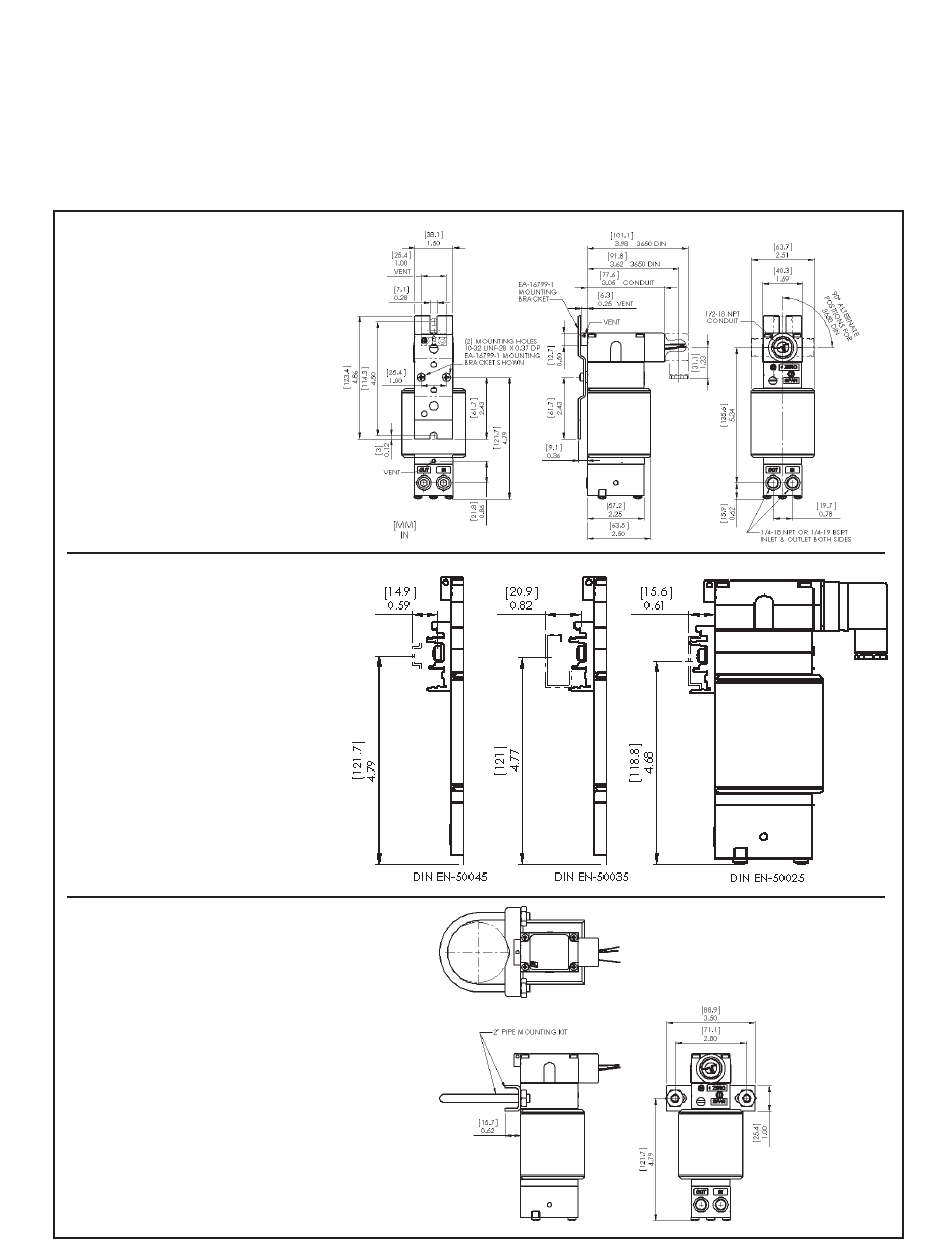

The Model T6100 is supplied with mounting kit 16799-1 for panel mounting. See Figure 1.
DIN Rail mounting kit 16893 is available for mounting on three different DIN rails. See Figure 2.
Mounting kit 19254 is available for mounting the unit on a 2" pipe. See Figure 3.
Figure 1. T6100 Mounting Kit 16799-1
(included with unit)
Figure 2. DIN Rail Mounting Kit 16893
(sold separately)
Figure 3. Pipe Mounting Kit 19254-1
(sold separately)
Advertisement
Related Manuals for Fairchild T6100
Summary of Contents for Fairchild T6100
- Page 1 Installation, Operation and Maintenance Instructions INSTALLATION The Model T6100 is supplied with mounting kit 16799-1 for panel mounting. See Figure 1. DIN Rail mounting kit 16893 is available for mounting on three different DIN rails. See Figure 2. Mounting kit 19254 is available for mounting the unit on a 2″ pipe. See Figure 3.
- Page 2 Figure 1. T6100 Standard Calibration Configuration Model For Electrical Connections TA6100 see Figure 8. Orifice Assembly Model TD6100 Outlet Port (front & rear) Inlet Port (front & rear) FULL RANGE OPERATION CALIBRATIONS / ADJUSTMENTS CAUTION: Over-ranging the Zero Screw can Equipment Required for Calibration: damage unit.
- Page 3 Remove the Orifice Assembly from the unit. For sure possibly causing personal injury or detailed information see Figure 1 “T6100 Calibration damage to equipment. Configuration on page 1. Clean with alcohol and dry with compressed air.
- Page 4 OM-5T6100 Litho in USA...
