ELECTRO-PNEUMATIC TRANSDUCER
Installation, Operation and Maintenance Instructions
The Model T5220 can be mounted directly onto a flat surface
using the two 10-32 tapped mounting holes in the base of the
housing. For more information, see Figure 1. "T5220 Outline
Dimensions" above.
FAIRCHILD T5220 SERIES

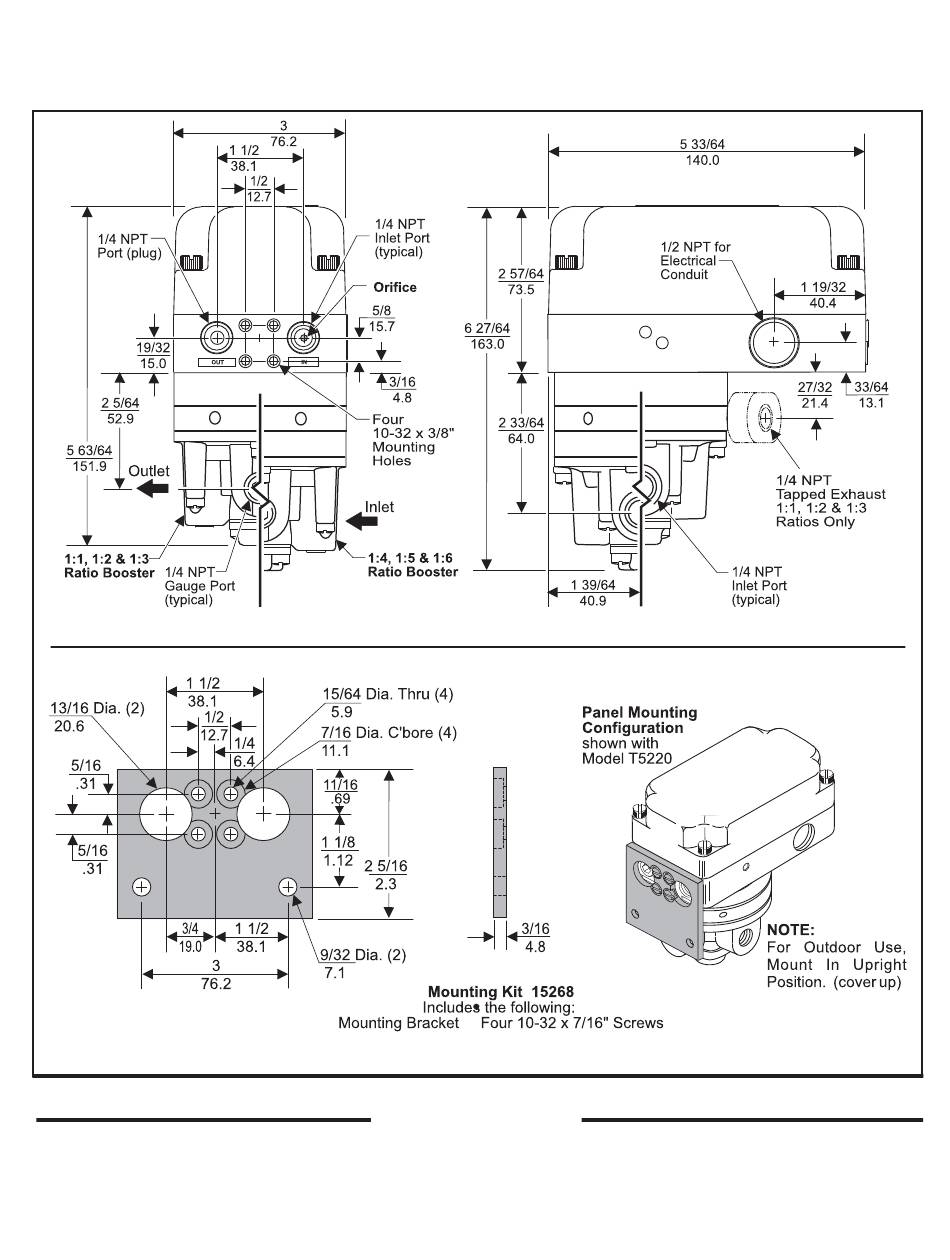

Figure 1. Model T5220 Outline Dimensions
Figure 2. Mounting Kit 15268. (Sold Separately)
INSTALLATION
The Model T5220 can be Panel Mounted using the
mounting bracket supplied in Mounting Kit 15268. For
more information, see Figure 2. above.
1
