6.2.4.1 PROGRAMMING

- Move monitor to starting point of pattern.
- Press and hold OSC button (~5 seconds) until LED blinks. Release button. LED will continue to blink while in program mode.
- Move monitor to second point, press OSC button. LED will blink rapidly to acknowledge position.
- Repeat until pattern is complete (up to 65 points).
- Press and hold OSC button until LED turns off. Release button.
TO OSCILLATE:
Press & release OSC button.
( Pattern must be programmed first.)
OSCILLATE PATTERN PROGRAMMING:
1)
Move monitor to starting point of pattern.
2)
Press & hold OSC button until LED blinks. LED will continue to blink in program mode.
3)
Move monitor to 2nd point, press OSC button. LED will blink rapidly to acknowledge position.
4)
Repeat until pattern is complete.
5)
Press & hold OSC button until LED turns off.
NOTE: PATTERN WILL BE CLEARED UPON POWER LOSS.
6.2.4.2 OSCILLATE PATTERN RETAIN FEATURE (DIP #4)
The monitor can be configured so that upon power up, the OSCILLATE
pattern is retained. The OSCILLATE pattern will need be programmed at
least one time (see section 6.2.4.1). To enable the OSCILLATE pattern retain
feature on a monitor follow these steps:
1. Remove lid from monitor operator station.
2. Locate DIP switches on communication board.
3. Slide DIP switch #4 to the ON position.
4. Replace lid. Verify rubber seal is clean and undamaged. Verify that
no wires are caught between lid and box.
5. Program OSCILLATE pattern.

6.2.5 OPERATOR STATION PANELS

The operator stations are all equipped with the same monitor movement functions. From the operator stations, the operator can
command the monitor up, down, left, right and command the nozzle pattern shaper from fog to straight stream. Operator stations
supplied with the membrane switch, shown on the left below, allow the operator to program and perform the oscillate and stow features.
HOLD TO
PROGRAM
®
OSC STOW
HOLD TO
PROGRAM
POWER
FOG STRAIGHT
STREAM
800-348-2686 AUX 2
AUX 1 AUX 2
www.tft.com
WARNING
Read manual before use.
Y5700

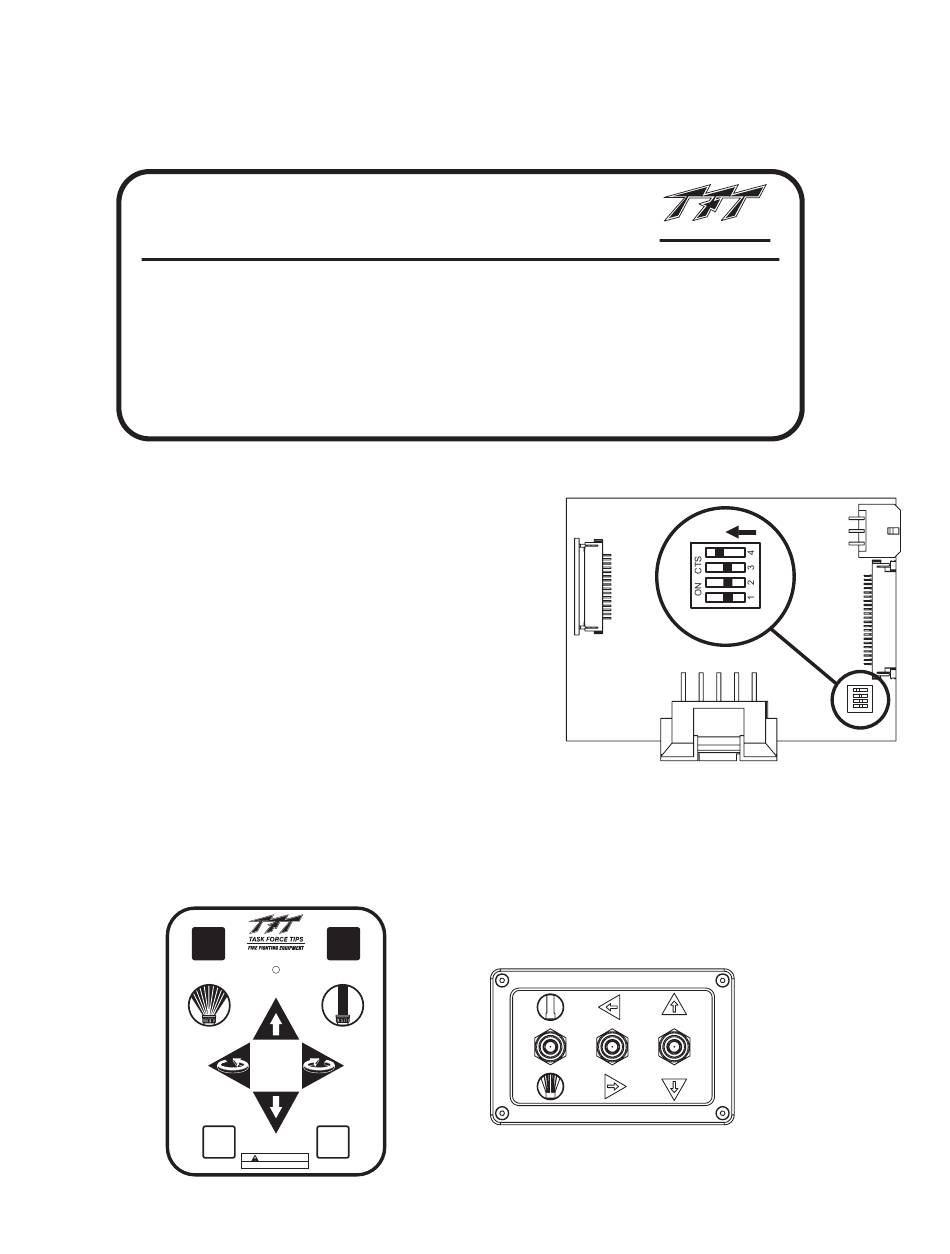

Operator Station Button Layouts
TO STOW:
Press & release STOW button.
(Programmable, refer to manual.)
Figure 6.2.4.1
Operator Station Label
Fig 6.2.5
31
®
TASK FORCE TIPS
FIRE FIGHTING EQUIPMENT
800-348-2686
www.tft.com
Y5705
Figure 6.2.4.2
Oscillate Pattern Retain Setup
