4.2 INLET FITTING OR EXTEND-A-GUN RC INSTALLATION

The Extend-A-Gun manual override knob may be mounted in any of four possible orientations (90 degrees apart) relative to the Straight

Ahead Reference Mark on the monitor.

NOTE: Monsoon monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the wire

additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fitting is also supplied and is to be used where the

nylon tubing and wire pass though the deck.

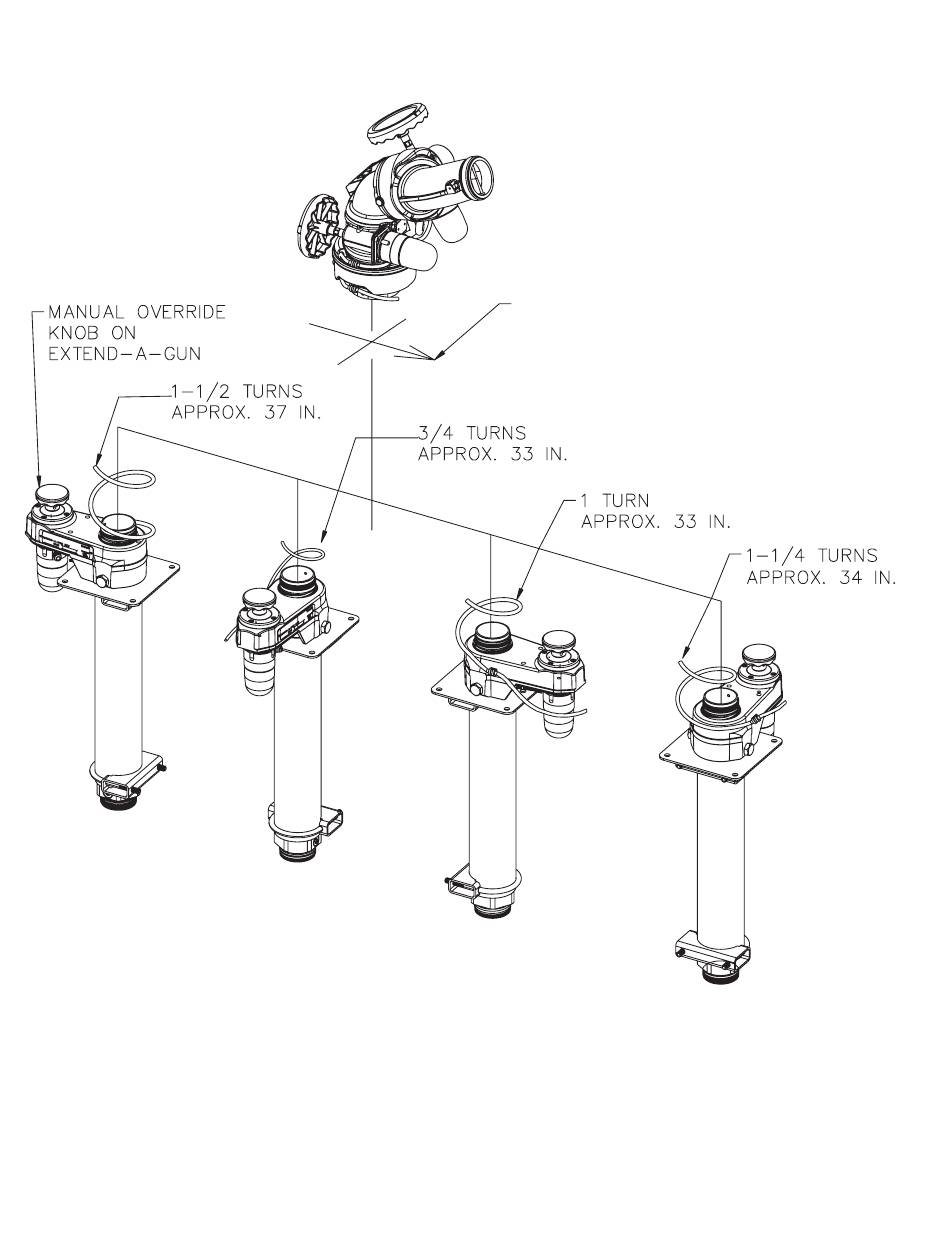

Fig 4.2C Possible Extend-A-Gun RC Mounting Orientations

STRAIGHT AHEAD

REFERENCE MARK

SEE FIGURE 4.2B
