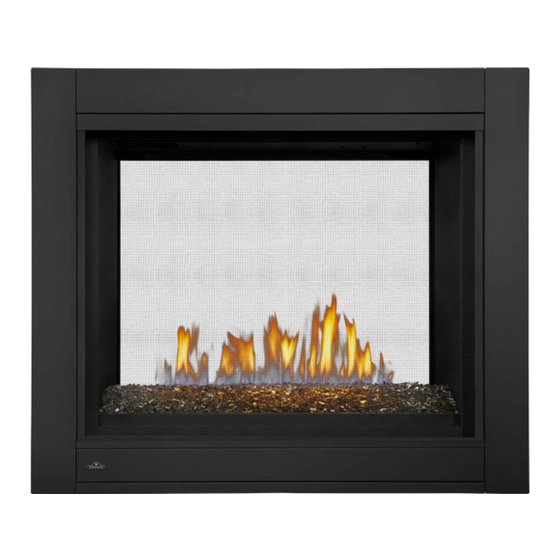

ASCENT MULTI-VIEW DIRECT VENT GAS FIREPLACE
TM

Specifications

Model BTU
BHD4ST 30,000
BHDP 30,000

Overview

Dimensions

Width
Actual Framing Actual
45 45 1/2 38 1/4
43 1/4 42 1/2 38 1/4
Mantel, see "MINIMUM
MANTEL CLEARANCES"
section
Door, see " END DOOR
INSTALLATION" section
Door, see "DOOR REMOVAL/
INSTALLATION" section
34 3/16"
SAFETY BARRIER
868mm
43 1/4" 1099mm
BHD4P ILLUSTRATED
SAFETY BARRIER 34 3/16"
868mm
45" 1143mm
BHD4ST ILLUSTRATED
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
Height Depth
Framing Actual Framing
46 1/2 25 1/8
46 1/2 25 1/8
COMBUSTIBLE MATERIAL
Framing, see
"FRAMING" section
Venting, see
"VENTING"
section
Rating plate, see "RATING
PLATE INFORMATION"
section
8"
203mm 5"
127mm
RIGHT
SIDE
38 1/4"
841mm
2 1/16"
53mm
7 9/16"
7 9/16"
192mm
192mm
GAS INLET
ELECTRICAL
INLET
8"
203mm 5"
127mm
RIGHT
SIDE
38 1/4"
841mm
2 1/16"
53mm
7 9/16"
7 9/16"
192mm
192mm
GAS INLET
ELECTRICAL
INLET
Glass
22 5/8
28 1/2 X 35 1/2 (Main)
27 1/8 X 17 (End)
22 5/8
25 1/8"
638mm
12 13/16"
325mm
LEFT
SIDE
25 1/8"
638mm
12 13/16"
325mm
LEFT
SIDE
05/2015
