Napoleon ASCENT SERIES Installation Instructions

BATTERY BACK-UP INSTALLATION INSTRUCTIONS
ALLOW SAFETY SCREEN TO COOL COMPLETELY BEFORE ANY MAINTENANCE, AS IT WILL REMAIN HOT
ENSURE THE UNIT IS COMPLETELY COOL BEFORE STARTING INSTALLATION.
TO AVOID DANGER OF SUFFOCATION KEEP THE PACKAGING BAG AWAY FROM BABIES AND
CHILDREN. DO NOT USE IN CRIBS, BED, CARRIAGES OR PLAY PENS. THIS BAG IS NOT A TOY.
NOTE: In the event of a power failure your appliance can be operated using the battery back-up supplied.
A. Remove the safety screen by lifting it up and off of the four shoulder screws.
B. Locate your battery holder, this would have been supplied in the manual baggie.

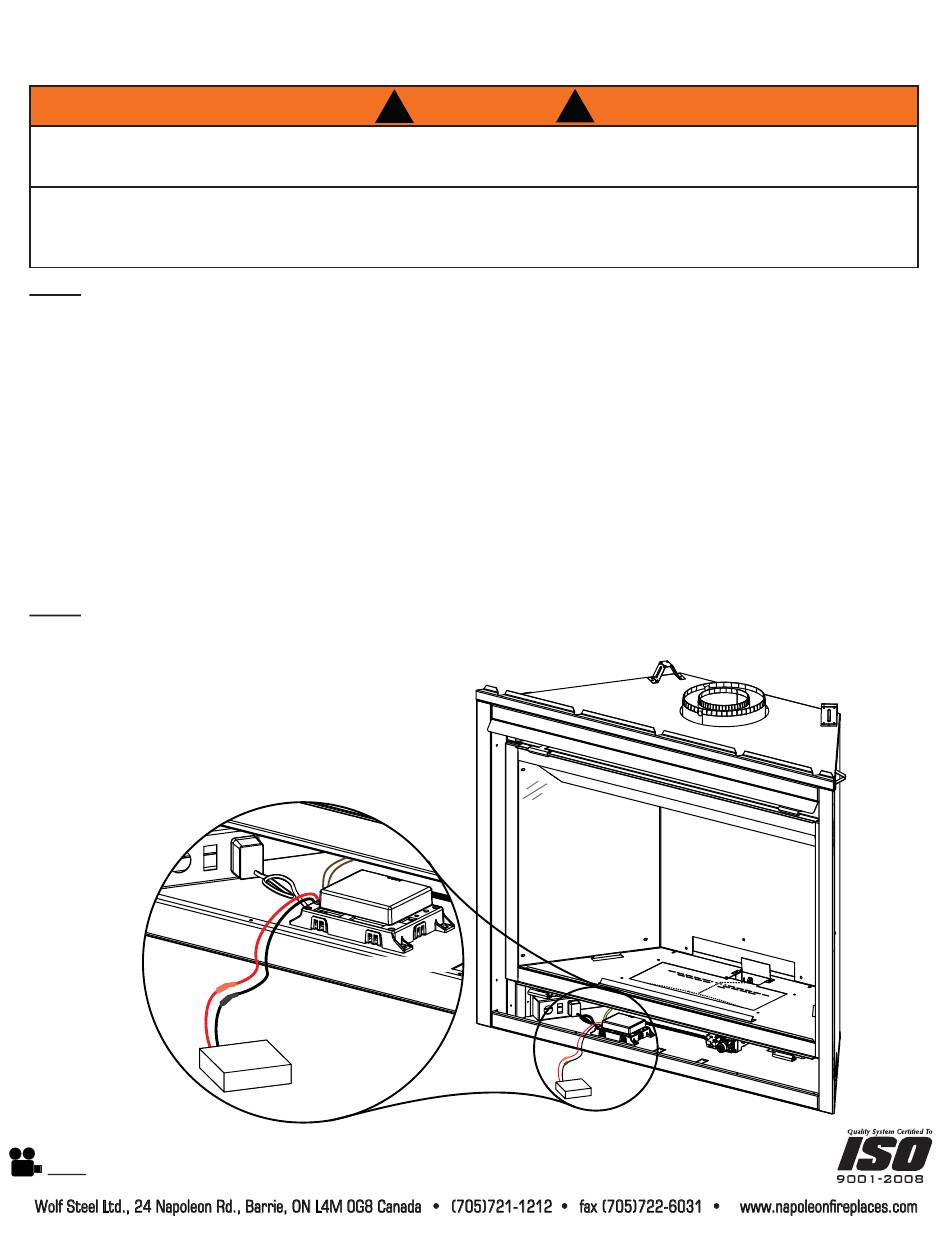

C. Locate the red and black wires from the control module to connect to the battery holder, as shown below.
D. Connect the red wire from the control module to the red wire of the battery back-up. Ensure the protective sleeve
covers the connections, as shown below.
E. Connect the black wire from the control module to the black wire of the battery back-up. Ensure the protective
sleeve covers the connections, as shown below.
F. Install two "D" size batteries, ensure the positive and negative ends correspond with those identifi ed on the holder.
G. Place the battery holder either onto the hearth, or in the front left corner of the control area, for the duration of the
power failure, as shown below.
H. Ensure the safety screen is reinstalled onto the appliance during operation.
NOTE: Once the power has been restored, you must disconnect the battery back-up or remove the batteries from
the holder. The system will drain the batteries if they are left in the battery holder.
RED WIRE
TO VIEW A VIDEO OF THIS INSTALLATION VISIT OUR WEBSITE AT: www.napoleonfi replaces.com/productsupport/
NOTE: FOR MORE DETAILED INSTRUCTIONS REFER TO YOUR INSTALLATION MANUAL.
ASCENT SERIES
!
DO NOT TOUCH SAFETY SCREEN UNTIL COOLED.
AFTER APPLIANCE IS NO LONGER OPERATING.
KNOT BEFORE THROWING AWAY.
CONTROL MODULE
BLACK WIRE
BATTERY
HOUSING
WARNING
!
11.07.14
