1.1.2 FRONT-SIDE
13

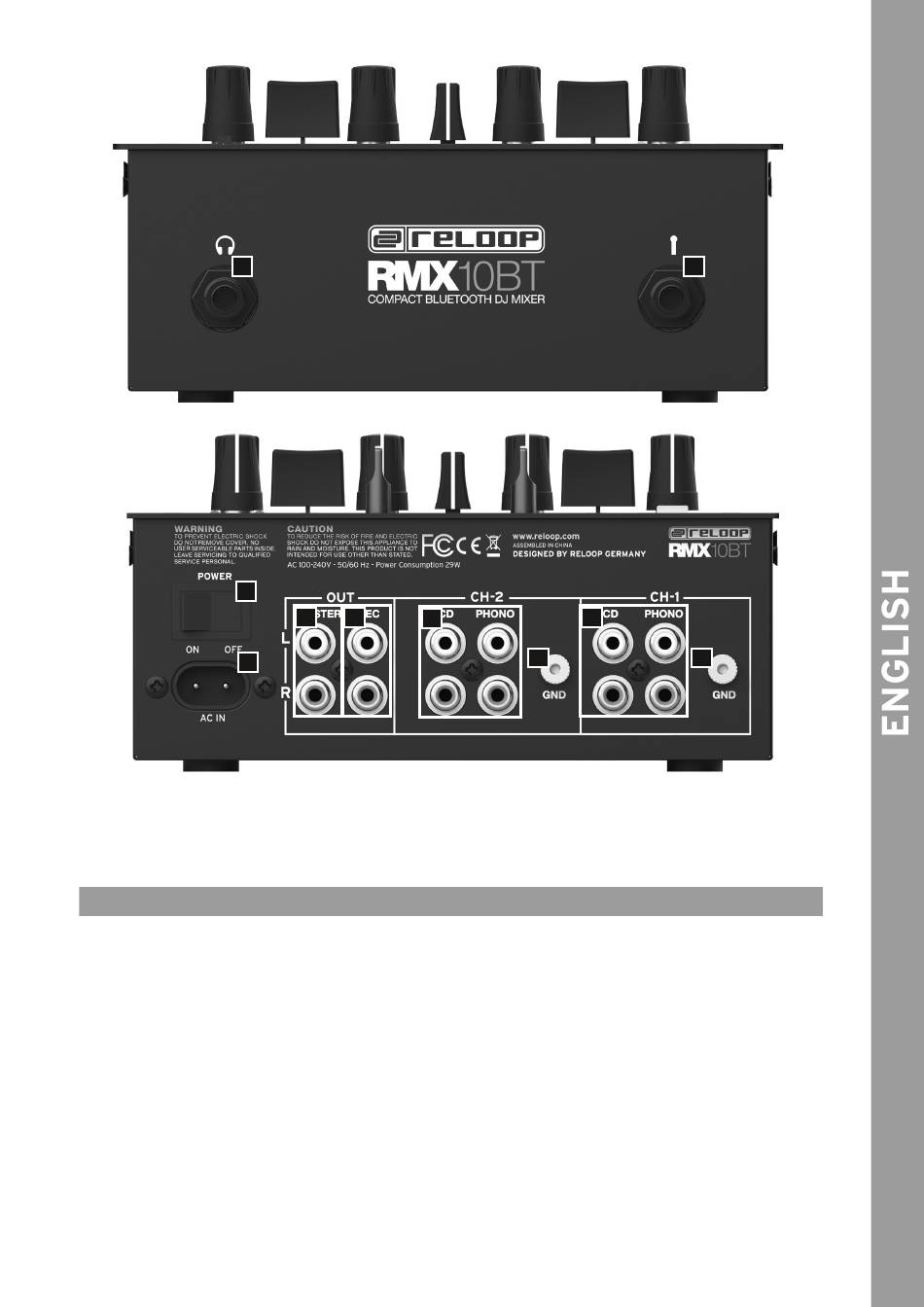

1.1.3 BACKSIDE
15
16
1.2 DESIGNATIONS
1. Signal Input Switch
2. Gain Knob
3. 3-Band Equalizer
4. Linefader
5. Crossfader
6. Bluetooth Button
7. Mic Level Encoder
8. Cue Level Encoder
9. Cue Mix Encoder
10. Cue Select Switch
11. Master Volume Encoder
12. Master Signal LED
13. Headphones Output
14. Microphone Input
15. On/Off Switch
16. Mains Connection
17. Master Out RCA
18. Rec Out RCA
19. Channel Inputs
20. GND Grounding Screw
17 18
19
14
19
20 20
11
