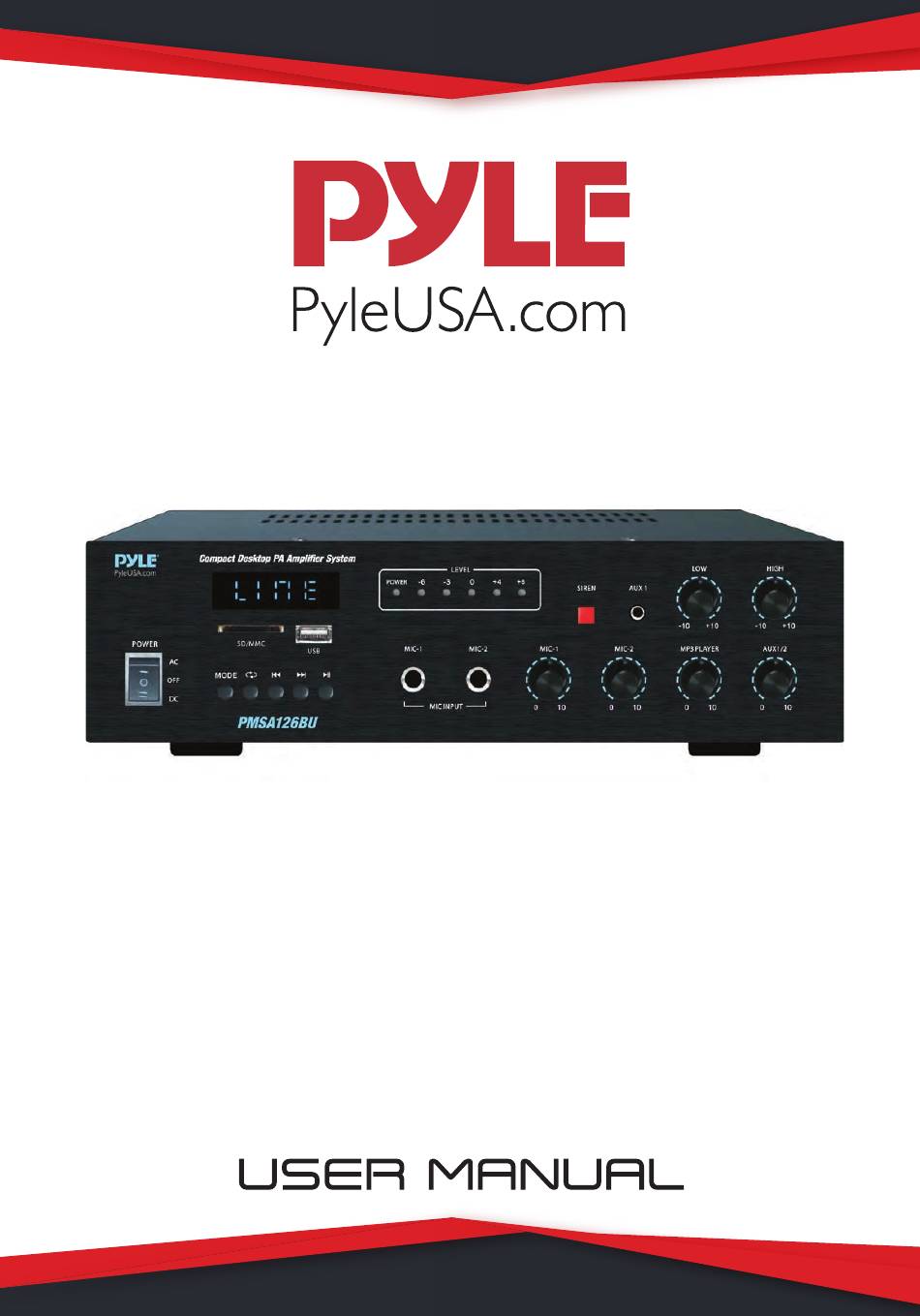

- Page 1 PMSA126BU Wireless BT Streaming Public Address Amplifier Compact PA Speaker & Microphone Receiver System with 70V/100V Output, MP3/USB/SD Readers, FM Radio (500 Watt)
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
-
Page 3: Front & Back Panel
Introduction To get the most from our PMSA126BU, it is recommended that you review all of the information provided in the instruction manual before operating the equipment. FRONT & BACK PANEL... -
Page 4: Control Buttons
Bluetooth name - PYLEUSA 3. Select the PYLEUSA Bluetooth name and wait for the device to pair. 4. The PMSA126BU will emit a noise con rming that the devices have successfully paired 5. Once paired you can play music from your Bluetooth device. You can also use the control buttons on the unit to select the tracks from your Bluetooth device. - Page 5 B. REPEAT BUTTON: This button allows you to play the music in repeat mode (All or Single mode) ALL - All tracks in the USB or SD CARD will be repeated in order without interruption. SINGLE - Repeat the track that was current playing. C.
-
Page 6: Speaker Connection
18. AUDIO INPUT: Connect the audio input RCA jacks of other devices, to these RCA jacks 19. SPEAKER TERMINALS: Com/4-ohm/8-ohm/16-ohm/70V/100V, To Connect speaker wires to the selected terminals. 20. BLUETOOTH ANTENNA: Please pull the antenna out when using Bluetooth input 21. - Page 7 SYSTEM 2: Two (or more) Speakers in Series NOTE: Connect the speaker (+) to the ampli er’s 4-Ohm, 8-Ohm or 16 -Ohm terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance of 8-Ohm, the total speaker impedance in this series con guration is 16 ohms.
- Page 8 SYSTEM 4: Four Speakers in series and Parallel NOTE: Although the description above is for connecting two series pairs of 8 Ohms speakers in a parallel hook up, you many also select to combine a series pair and a parallel pair in a parallel hook up, simply be sure you have calculated the total impedance, and attach the speaker (+) circuit wire to the proper amp terminal.
- Page 9 PMSA126BU Wireless BT Streaming Public Address Ampli er Compact PA Speaker & Microphone Receiver System with 70V/100V Output, MP3/USB/SD Readers, FM Radio (500 Watt) Features: • PA Public Address Ampli er Receiver • Compact Desktop Audio Source System • Provides Convenient Microphone & Speaker Control •...
Need help?
Do you have a question about the PMSA126BU and is the answer not in the manual?
Questions and answers
How to connect 3 speakers
To connect 3 speakers to the Pyle PMSA126BU, you must ensure the total speaker impedance matches the amplifier's supported range (4–16 ohms in standard mode or use 70V/100V line with transformers).
Here are two options:
1. Standard Connection (4–16 ohms total impedance):
- Connect two 8-ohm speakers in parallel (resulting in 4 ohms), then connect the third 8-ohm speaker in series with this parallel pair:
- Total impedance = 4 ohms (parallel pair) + 8 ohms (series) = 12 ohms (acceptable).
- Connect the combined setup to the amplifier's speaker output.
2. 70V/100V Line System:
- Use line-matching transformers on each speaker.
- Connect all 3 transformers in parallel to the amplifier’s 70V or 100V output.
- Ensure transformer settings match the amplifier's power rating.
Always confirm total impedance is within the amplifier's supported range.
