Closing the node canister
After installing options in a node canister, you must close the canister cover and
install the canister in the control enclosure.
Procedure
To close the canister, complete the following steps.
1. Reinstall the cover as shown in Figure 16.
a. Align the four hook slots on the cover with the pins on the canister.
b. Slide the cover toward the latch and release levers until it locks into place.

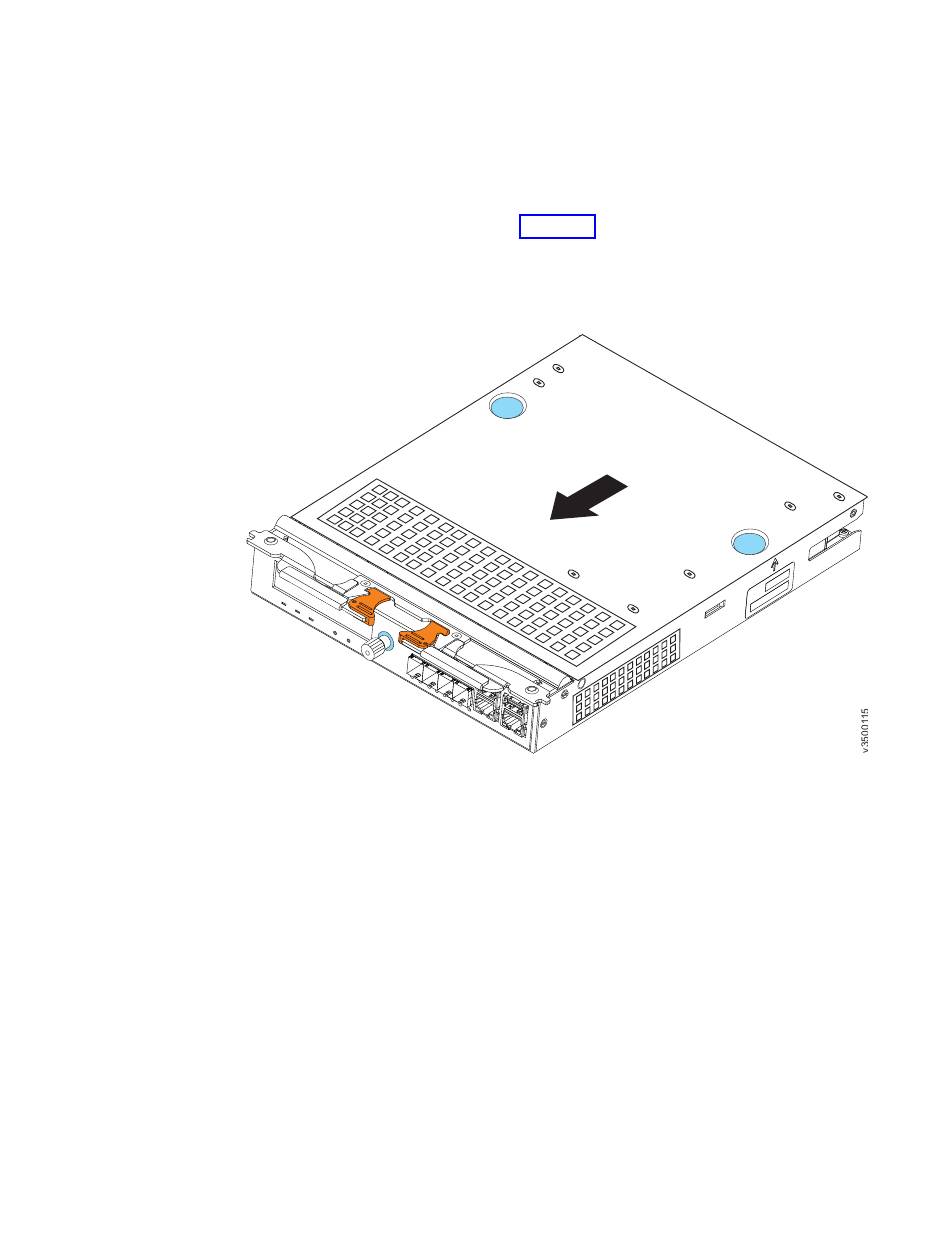

Figure 16. Reinstalling the canister cover
Chapter 2. Installing the hardware
21
