Duct type air conditioner
DLV 007 DLV 009
DLV 012 DLV 015
DLV 018 DLV 021
DLV 024
SAFETY PRECAUTIONS
● Read the following "SAFETY PRECAUTIONS" carefully before installation.
● Carry out test running to confirm that no abnormality occurs after the installation. Then, explain to user the operation, care and maintenance as stated in
instructions. Please remind the customer to keep the operating instructions for future reference.
WARNING
This indication shows the possibility of causing death or serious injury.
CAUTION
This indication shows the possibility of causing harm or damage the equipment.
1) Use qualified installer and follow carefully this instructions. Otherwise it will cause electrical shock, water leakage, or esthetic problem.
2) Install at a strong and firm location which is able to withstand the set's weight. If the strength is not enough or installation is not properly done, the set
will drop and cause injury.
3) For electrical work, follow the local national wiring standard, regulation and this installation instruction. An independent circuit and single outlet must
be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.
4) Use the specified cable and connect tightly for indoor connection. Connect tightly and clamp the cable so that no external force will be acted on the
terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection.
5) Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause heat-up
at connection point of terminal, fire or electrical shock.
6) When carrying out piping connection, take care not to let air substances other than the specified refrigerant go into refrigeration cycle. Otherwise, it
will cause lower capacity, abnormal high pressure in the refrigeration cycle, explosion and injury.
7) Do not damage or use unspecified power supply cord. Otherwise, it will cause fire or electrical shock.
8) This equipment must be earthed. It may cause electrical shock if the grounding is not perfect.
9) Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may
cause fire.
10) Please diconnect the power supply when install or maintenance or sevice this system.
1) Selection of the installation location.
Select a installation location which is rigid and strong enough to support or hold the unit, and select a location for easy maintenance.
2) Do not release refrigerant.
Do not release refrigerant during piping work for installation, reinstallation and during repairing a refrigeration parts. Take care of the liquid refrigerant.
it may cause frostbite.
3) It may need two people to carry out the installation work.
4) Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.
5) Carry out drainage pipes as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the furniture.

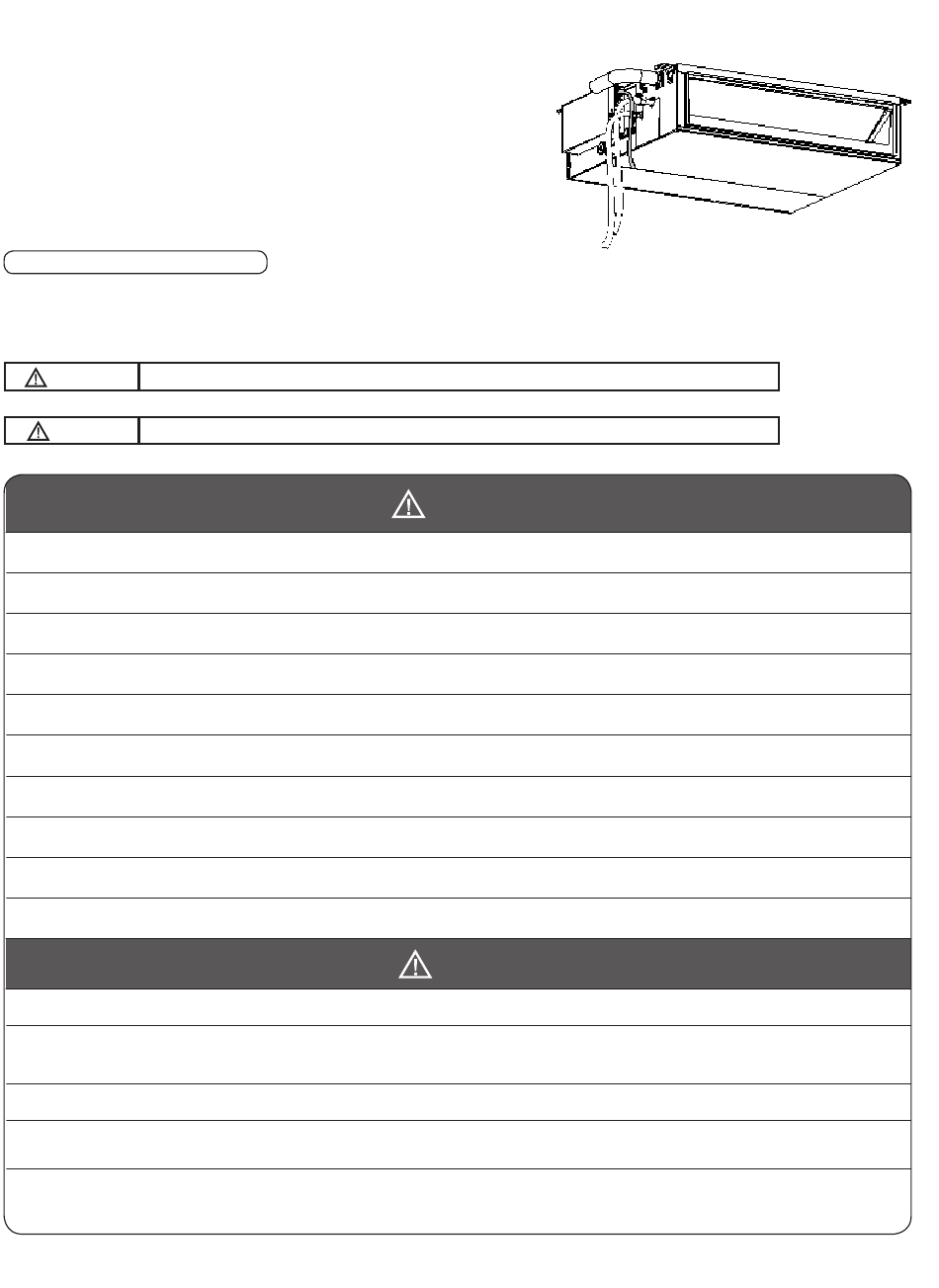

INSTALLATION MANUAL
WARNING
CAUTION
Part NO. IM.DLV 1_A.1 GB
Advertisement
Table of Contents
Related Manuals for Airwell DLV 007
Summary of Contents for Airwell DLV 007
-
Page 1: Installation Manual
INSTALLATION MANUAL MODELS Duct type air conditioner DLV 007 DLV 009 DLV 012 DLV 015 DLV 018 DLV 021 DLV 024 SAFETY PRECAUTIONS ● Read the following "SAFETY PRECAUTIONS" carefully before installation. ● Carry out test running to confirm that no abnormality occurs after the installation. Then, explain to user the operation, care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference. WARNING This indication shows the possibility of causing death or serious injury. CAUTION This indication shows the possibility of causing harm or damage the equipment. WARNING 1) Use qualified installer and follow carefully this instructions. Otherwise it will cause electrical shock, water leakage, or esthetic problem. 2) Install at a strong and firm location which is able to withstand the set's weight. If the strength is not enough or installation is not properly done, the set will drop and cause injury. 3) For electrical work, follow the local national wiring standard, regulation and this installation instruction. An independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire. 4) Use the specified cable and connect tightly for indoor connection. Connect tightly and clamp the cable so that no external force will be acted on the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection. 5) Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause heat-up at connection point of terminal, fire or electrical shock. 6) When carrying out piping connection, take care not to let air substances other than the specified refrigerant go into refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high pressure in the refrigeration cycle, explosion and injury. 7) Do not damage or use unspecified power supply cord. Otherwise, it will cause fire or electrical shock. 8) This equipment must be earthed. It may cause electrical shock if the grounding is not perfect. 9) Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may cause fire. 10) Please diconnect the power supply when install or maintenance or sevice this system. CAUTION 1) Selection of the installation location. Select a installation location which is rigid and strong enough to support or hold the unit, and select a location for easy maintenance. 2) Do not release refrigerant. Do not release refrigerant during piping work for installation, reinstallation and during repairing a refrigeration parts. Take care of the liquid refrigerant. - Page 2 Required tools for installation works Tool Tool Tool Screw driver Pipe cutter Torque wrench Electric drill, hole core 18 Nm (1.8 kgf.m) Reamer drill ( 60 mm) 45 Nm (4.5 kgf.m) 65 Nm (6.5 kgf.m) Hexagonal wrench Knife 75 Nm (7.5 kgf.m) Spanner Measuring tape Attached accessories Accessories part Qty. Accessories part Qty. Accessories part Qty. Central control Drain tube+clips Unit operation manual display (optional) Installation manual Tie-Waps Screws washer Gas tubing insulation dowels SELECT THE BEST LOCATION While selecting a place for the indoor unit Allow max. air flow to the desire space. ‰...
- Page 3 Horizontal drainage ● The unit includes a drain pump, which can elevate condensate water up to 120 cm from the unit lowest level. The drainage tube is connected to the upper drainage nozzle. ● The lower drainage nozzle role is to empty the drain pan before servicing the unit. ● Install on the drain tube with 5-10 mm thickness thermal insulation sleeve to prevent drippings. Drainage test For VRF system please do drainage test after finishing all installations, wiring and piping included, and doing ITEST (Installation test ) sucessfully: (1) Power on the system, and runs cooling mode. (2) Check whether the pump sound is normal. (3) Slowly inject about 1,000 cc of water into the drain pan.Check the drainage through the transparent drain port to see if any drain leakage happens. (4) When the check is finished, do not forget to cut off the power supply. 3.UNIT DIMENSIONS Unit:mm Model DLV007-DLV015 DLV018-DLV024 1050 1090 4.ACCESS TO THE UNIT 5.UNIT INSTALLATION Insert 4 M10 or 3/8 threads rods into the ceiling. Introduce the rods through the slots of unit suspension brackets. Φ Liquid Pipe Φ Gas Pipe Position the shock absorbers, add washers and screw the nuts until the DLV007 1 /4"...
- Page 4 6.AIR FILTER LOCATION The air filter is located in the rear side of the unit (default from factory) but can be easily relocated in the bottom of the unit if it is required. 7.AIR FILTER CLEANING For cleaning the filter remove it by pushing up toward the back of the unit and pull it out as described below. 8.AIR FILTER RELOCATION Remove air filter from the unit. Remove panel4. Remove filter trails 2-3. Insert filter trails 2-3 on the opposite side of the unit. 5.Close panel 4 in the rear side of the unit. Insert the filter into the trails. DISPLAY CONTROL UNIT 1.LOCATION CRITERIA ● It is recommended to install the Display Control Unit close to a ceiling in a central and neutral zone at typical conditions. In addition, the aesthetic aspect should be considered. ● The Display Control Unit is connected to the main control board on the air conditioner (the indoor unit) by a communication cable. Cable is connected to the Display Control Unit by a quick-connector. (8 pin plug) 2.INSTALLATION OF DISPLAY CONTROL UNIT ON WALL ● Drill a 12 mm diameter hole on the wall, for routing the communication cable. ● Open the unit cover, drill 3 holes in the wall to match the holes in the Display Control Unit, install the inserts and fasten the unit to the wall with 3 screws. ● The Display Control Unit is provided of a special communication cable, 7 meters long, terminated by a plug, connected in the housing itself to a distribution box, which enables the control of the air conditioner from several different rooms, each one from its own Display Control Unit. ● Connect the quick connector to the appropriate socket on the main control board in the indoor unit electrical box. 3.CONSIDERATIONS IN LOCATING THE REMOTE CONTROL UNIT a) Locate the Remote Control Unit in such a way that when mounted on its support on the wall, it will be in line sight with the Display Control Unit (at less than 8 m). b) It is recommended to establish the final location of the Remote Control Unit only after the first operation, assuring proper transmission and reception between the Remote Control Unit and the Display Control Unit. COLOR CHART Conn. Point Wire Color Conn. Point Wire Color Blue Purple...
- Page 5 ELECTRICAL WIRING CONNECTION 1.POWER SUPPLY WIRING ● Unscrew and remove the electrical box. ● Connect the power supply wirings to the power supply terminal block. ● When doing this, press the power supply wiring under the wire clip. UNOCCUPIED DRY CONTACT WINDOWS DRY CONTACT Power Supply Main Bus R/C Wiring COMMUNICATION WIRE PROWER SOURCE WIRE ELB:Electricity Leakage Breaker. AH :Assistant heater. 2.MAIN BUS AND R/C COMMUNICATION WIRING ● Unscrew and remove the electrical box. ● Connect the R/C wirings to R1,R2 terminal block and the mainbus wirings to F1,F2 terminal block. ● Press the wirings under the wire clip tightly. 3.TIGHTENING TORQUE FOR THE TERMINAL SCREWS ● Use the correct screwdriverfortightening the terminal screws. ● If the blade of screwdriver is too small, the head of the screw might be damaged, And the screw will not be properly tightened. If the terminal screws are tightened too hard, screws might be damaged. ● Refer to the table below for the tightening torque of the terminal screws. Terminal Size Tightening torque Terminal block (total 9 pins)
- Page 6 5.SPECIFICATIONS FOR FIELD SUPPLIED ELB AND WIRE Remote controller wiring Transmission Power supply wiring wiring Model Field ELB Wire and Size wires Size DLV007 DLV009 Must comply DLV012 with maximum DLV015 Twisted-pair Wire ≥1.0mm currentandlocal DLV018 codes (≥0.75mm DLV021 DLV024 6.HEIGHT COMPENSATION SETTING The Compensation setting according to installation height can be done by using the dip switch 11 and 12 on controller PCB. Installation Height Height Code DS11 DS12 2.3-2.7(m) 2.7-3.1(m) 3.1-3.5(m) 3.5(m) Note: Please disconnect the power supply when change this setting. If you feel too noisy, please set DS11 and DS12 to lower height code level. CHECK ITEMS BEFORE POWER ON ⿌ Is there any gas leakage at flare nut connections? ⿌ Has the heat insulation been carried out at flare nut connection? ⿌...
