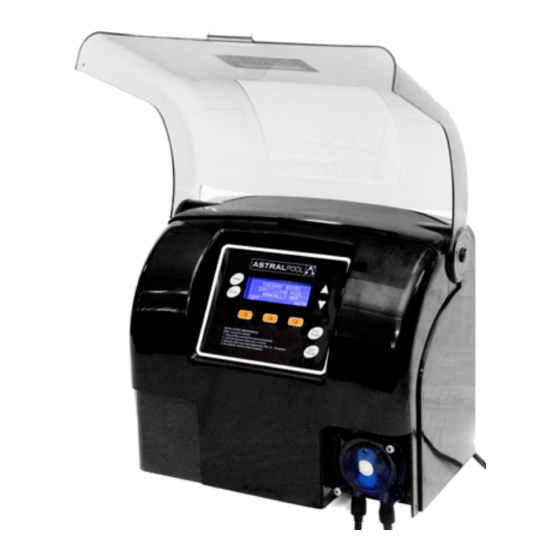

Salt chlorinator with bluetooth

Advertisement

INSTALLATION MANUAL
FOR YOUR SAFETY - This product must be installed and serviced by a licensed electrician in accordance with the
latest, enforced version of AS/NZS 3000 and any other local applicable regulations. Before installing this product,
read and follow all warning notices and instructions that accompany this product. Failure to follow warning
notices and instructions may result in property damage, personal injury, or death. Improper installation and/or
operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury,
property damage, or death.
Viron EQ
Salt Chlorinator
with bluetooth
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viron EQ and is the answer not in the manual?

Questions and answers

Summary of Contents for Astralpool Viron EQ

  • Page 1 INSTALLATION MANUAL Viron EQ Salt Chlorinator with bluetooth WARNING FOR YOUR SAFETY - This product must be installed and serviced by a licensed electrician in accordance with the latest, enforced version of AS/NZS 3000 and any other local applicable regulations. Before installing this product, read and follow all warning notices and instructions that accompany this product.
  • Page 2 Viron e-Quilibirum Series Chlorinator Installation Manual EQUIPMENT INFORMATION RECORD DATE OF INSTALLATION INSTALLER INFORMATION INITIAL PRESSURE GAUGE READING (WITH CLEAN FILTER) PUMP MODEL HORSEPOWER FILTER MODEL CONTROL PANEL MODEL SERIAL NUMBER...
  • Page 3: Table Of Contents

    Viron e-Quilibirum Series Chlorinator Installation Manual Table of Contents Section 1. Important Safety Instructions ... 4 Section 7. Pool Chemistry and Balance ....14 pH Regulation Principle ............14 Section 2. System Overview ........6 Chlorine Output and Filtration Time ......14 Overview ..................6 Water Chemistry ..............
  • Page 4: Section 1. Important Safety Instructions

    This product is NOT suitable for use on Spa Pools UNLESS the OPTIONAL pH sensor has been purchased and installed When used on Spa Pool applications, AstralPool strongly recommend the purchase and installation of a chlorine sensor in addition to the pH sensor.
  • Page 5 Viron e-Quilibirum Series Chlorinator Installation Manual WARNING People with infectious diseases should not use a spa or hot tub. Children should not use spas or hot tubs without adult supervision. To avoid injury, exercise care when entering or exiting the spa or hot tub. Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.
  • Page 6: System Overview

    Viron e-Quilibirum Series Chlorinator Installation Manual Section 2. System Overview Components a. eQ Controller b. Controller Mounting Plate Overview c. Chlorinator Cell and Electrodes d. Screws for Mounting Plate The Viron e-Quilibrium Chlorinator incorporates a e. 50mm Injection Mixing Cell controller with inbuilt acid pump, an electrode cell for f.
  • Page 7: Mounting The Controller

    Viron e-Quilibirum Series Chlorinator Installation Manual Figure 5. Correct Cell Installation Before installing the unit in position on the wall or Figure 3. Equipment Configuration, Acid Dosing and post, the length of the PVC tubing provided should Optional Sensor Probes be measured and taken into consideration.
  • Page 8: Connecting The Pvc Acid Tube

    Viron e-Quilibirum Series Chlorinator Installation Manual Connecting the PVC Acid Tube 3.3.3 Install the PVC Tube To avoid loss of water from the system, close all stop 3.3.1 Placement of Chemicals valves before cutting any lines. • Clear Tube - 4m to be cut to required length (installation WARNING dependant) •...
  • Page 9: Ph Sensor (Optional, Part No. 525147)

    Viron e-Quilibirum Series Chlorinator Installation Manual Make a small 2mm breather hole in the cap to allow air influencing the efficiency of the chlorine. Water pH, to fill the void created by the acid. the use of sunscreens (cyanuric acid), Hardness and Connect the other end of the PVC tube to the inlet of other items can all influence the reading of the ORP the acid pump on the front of the controller.
  • Page 10: Initial Startup

    NOTE: ARC setting is for service replacement only • CELL REVERSAL PERIOD – Do not change this setting without consulting with your local AstralPool dealer or service department. Standard setting is 4 hours. Figure 9. Chlorinator menu screen - Dose •...
  • Page 11: Acid Dosing

    Viron e-Quilibirum Series Chlorinator Installation Manual 4.4.1 Acid Dosing without Sensors Press DOSE and up/down arrows to: a. Shock Chlorinate the Pool: Provide a shock dose of The base model Viron e-Quilibrium is supplied without chlorine production or sanitise until the first timer any pH or Chlorine sensors (sensors can be ordered tomorrow morning.
  • Page 12: Day To Day Operation

    Viron e-Quilibirum Series Chlorinator Installation Manual NOTE: The RUN time represents the number of hours you Section 5. Day to Day Operation want the unit to operate. If a variable speed pump is enabled, you can then set the pump speed for For regular operation, make adjustments via the SET this timer.
  • Page 13: Adjust Chlorine Output

    Viron e-Quilibirum Series Chlorinator Installation Manual Section 6. Bluetooth Setup Adjust Chlorine Output In summer (or other heavy bathing times), chlorine Connect via Bluetooth output should be set between 6 and 8. Check chlorine level in your swimming pool regularly to determine The INSTALL function allows the unit to be set up if the output should be increased or decreased.
  • Page 14: Basic App Functions

    7,45 • Pool or Spa Mode 7,40 Factory Set Point = 7,4 pH • Set pump speed (if a compatible AstralPool pump is installed) 7,35 • pH and ORP readings (if pH and ORP probes are fitted) 7,30 • Lights - on, off (if a compatible Connect LITE or Connect LITE+...
  • Page 15: Water Chemistry

    Stabiliser (also referred to as Sunscreen or Cyanuric pool. Acid) AstralPool do not recommend the addition of At most, CyA should be managed and kept within stabiliser in a pool controlled with an e-Q chlorinator a range of 10 to 20 ppm when used in conjunction with chlorine probe fitted.
  • Page 16 Viron e-Quilibirum Series Chlorinator Installation Manual Chlorine Level Cyanuric Acid 2ppm 3ppm 4ppm Level 700 mv 725 mv 750 mv 550 mv 600 mv 625 mv 500 mv 525 mv 550 mv >50 350 mv 400 mv 450 mv NOTE: Contants - pH at 7.6 and TA at 180 ppm Table 4.
  • Page 17: Chlorine Dosing And Orp

    Viron e-Quilibirum Series Chlorinator Installation Manual Chlorine Dosing and ORP ORP remains the best method to measure the sanitiser’s (chlorine’s) effectiveness in the water. At The Viron e-Quilibrium uses an ORP sensor to measure a reading of 750mv a virus kill time is as low as one and control the chlorine levels in your swimming pool second! or spa.
  • Page 18: Lubricate The Acid Pump Squeeze Tube

    Otherwise water put the probe in a calibration solution. Calibration loss may occur. solution is available via AstralPool as a spare part. To replace the tube, remove controller drawer, remove Press MAINT and then next until CAL is displayed. The retaining screws from the pump head and pull the unit will ask CHANGE PH CALIBRATION, select YES.
  • Page 19: Ai Mode Connection

    Viron e-Quilibirum Series Chlorinator Installation Manual Ai Mode Connection • Water is turned over 1.5 times (on a 50,000 litre pool, the pump will move 75,000 litres of water to ensure all of the water is Connect your Viron eVo pump to the Viron filtered) •...
  • Page 20 Viron e-Quilibirum Series Chlorinator Installation Manual When chlorine is low, Ai mode will change the Viron For further information on the set up and operation of Pump (if installed and connected) to High Speed. The the Viron e-Quilibrium go to Youtube on the following high speed can be adjusted up or down in the set up links: and commissioning stage.
  • Page 21: Section 10. Troubleshooting

    Viron e-Quilibirum Series Chlorinator Installation Manual Section 10. Troubleshooting When there is an error condition, a message is displayed on the screen and the “INFO” LED flashes. When an error is linked to conductivity (low conductivity) the “SALTS” LED is ON. When the error situation is corrected, the error message and LED illumination ends automatically.
  • Page 22: Section 11. Exploded Diagram

    Viron e-Quilibirum Series Chlorinator Installation Manual Section 11. Exploded Diagram and Parts List Item Description Part Number Quantity Label LABEL371 Trans Grey Plastic Visor 950903 Visor Hinge Pins 520160 Screws Long - for Pump 221117 Screws Short - for Pump 221118 Main PCB SP71404...
  • Page 23: Section 13. Warranty

    For full warranty terms and conditions and to register your warranty, visit www. astralpool.com.au/warranty and complete your details. Or scan the QR code to go directly to the registration page Record your equipment details here for quick reference: Model No.
  • Page 24 Fluidra Group Australia Pty Ltd 219 Woodpark Road Smithfield NSW2 2164, Australia 1 300 186 875 www.astralpool.com.au ©2019 Fluidra S.A. All rights reserved. This document is subject to change without notice.
