Summary of Contents for Astralpool ATLAS 36596
- Page 1 Disclaimer ELITE español S I G N A T U R E...
-
Page 2: Table Of Contents
S I G N A T U R E CONTENTS 1. Product specifications and technical characteristics. 1.1. Table of technical characteristics 1.2. Packaging 1.3. General measurements 2. Checklist of quality controls passed. 3. Certificates available for the product, production process and systems implemented in production. 4. Detailed certificate of guarantee. 5. Characteristics and design standards. 6. Exploded View. 7. Recommendations to be considered: 7.1. Packaging 7.2. Storage 7.3. Transportation 7.4. Location 7.5. Starting up process 7.6. Installation 7.6.1. Install the filter in its final location 7.6.2. Loading sand... -
Page 3: Product Specifications And Technical Characteristics

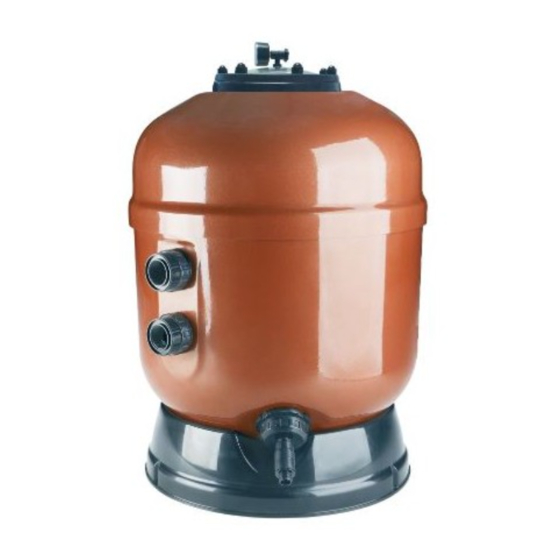

S I G N A T U R E 1. Product specifications and technical characteristics ATLAS FILTER Reinforced polyester sand filters. • • Made with polyester resins and fibre- Interior piping reinforced with PN-6 glass. tubes. • • Excellent Gel-coat finish in the RAL 2 1/2” sand release. 8029 colour. -
Page 4: Packaging
S I G N A T U R E 1.1. Table of characteristics ATLAS FILTER Code 36596 36597 36598 36599 Ø (mm) Connection (inches) ” ” ” Surface filtration ( m 0,9 0,30 0,44 0,64 Filtration speed (m /h/m Flow rate (m Service pressure (bar) Sand load (0,4-0,8 mm) (kg) Net weight (Kg) 1.2. Packaging... - Page 5 S I G N A T U R E 1.3. Measurements ” sand drain and ” water drain With security valve COD. A (mm) B (mm) D (mm) H (mm) M (mm) N (mm) K (mm) P (mm) 36596 ” 36597 ” 36598 040 ” 36599 5 ” * Approximate measurements...
-
Page 6: Checklist Of Quality Controls Passed
S I G N A T U R E 2. Check list of quality controls passed ENTRY Resin quality certificates Upper cover control MATERIALS INTAKE Neck frame control Security valve control SM: Weight control LAMINATED POLYESTER MANUFACTURING TANK QC: Fibre and resin percentage QC: Screw tightening control QC: Body union connection tightening control INTERIOR MECHANISATION SM+ QC: Linear outlets ASSEMBLY SM: Body thickness in the neck zone SM+ CQ: Interior - visual assembly SM+ CQ: Water tightness control FINISHED QC+ QC: Finished visual appearance PRODUCT FINAL SM: 100% SELF-MONITORING INTEGRATED IN THE MANUFACTURING PROCESS ITSELF. QC: PAPERWORK CONTROLS BY THE QUALITY DEPARTMENT. - Page 7 S I G N A T U R E POLTANK. SAU. HEREBY CERTIFIES THAT: The Atlas sand filters manufactured by POLTANK, SAU, have been designed in accordance with the requirements of the NSF International Standards: • Hydrostatic pressure 1.5 times the maximum working pressure over 5 minutes. •...
-
Page 8: Certificates Available For The Product, Production Process And Systems Implemented In Production
S I G N A T U R E 3. Certificates available for the product, production process and systems implemented in production... - Page 9 S I G N A T U R E 4. Certificate of Guarantee GENERAL ASPECTS 1.1. In accordance with these provisions, the seller guarantees that the product that corre- sponds to this guarantee shows no compliance deficiency at the time of delivery. . 1.2. The Product Guarantee Period is 10 YEARS, and starts from the moment it is delivered to the buyer, understood as AstralPool’s direct customer.
- Page 10 S I G N A T U R E 2.5. If the product is to be replaced, all freight charges and expenditures to and from the factory, to move or reinstall the product or installation of the replacement, are the responsibility of the buyer. 2.6.
-
Page 11: Characteristics And Design Standards
S I G N A T U R E 5. Characteristics and design standards The tank thickness and resistance were calculated in accordance with the BS-4994 regulation. The filter operation standard was based on the NSF for a maximum working pressure of 2.5 bars.The filter was only designed for use in pools with a maximum temperature of 40ºC with pH and disinfectant levels within the limits stated in the corresponding regulations. -
Page 12: Exploded View
S I G N A T U R E 6. Exploded View 4404900 /4” Unnamed drain cap 44048008 Flat filter gasket 4404900 Premium cover + gasket 440404008 Air relief valve 44049003 Set, premium cover 44040405 O’ring D. 60X8 44049004 Set, neck frame 4404040 O’ring D. -
Page 13: Packaging
S I G N A T U R E 7. Recommendations 7.1. PACKAGING: The ATLAS filter is delivered adequately packed in a sealed cardboard box on which positioning and stacking logistic information for palleting is indicated. Any failure to comply with this information can result in damage to the product. Due to the dimensions and weight, the 900 diameter filter is supplied on its own pallet so that it can be handled with a forklift truck or pallet jack. -
Page 14: Starting Up Process
S I G N A T U R E 7.5. STARTING UP PROCESS Selector valve The water is drawn in from the bottom of the pool through the drain and from the surface using the skimmers , and is carried through the pump to the filter by separate conduction pas- sages fitted to their corresponding valves and returned to the pool through distributors (... -
Page 15: Installation
S I G N A T U R E 7.6. INSTALLATION: 7.6.1. INSTALL THE FILTER IN ITS FINAL LOCATION Install the selector valve in the filter, ensuring that the gaskets between the valve and the filter are correctly positioned. Make the three connections needed for the selector valve: pump tubing to the valve, from the valve to the drainpipe and from the valve to the side of the pool. -
Page 16: Loading Sand
S I G N A T U R E 7.6.2. LOADING SAND To get maximum performance out of this filter, it must be filled with silica sand with a particle size from 0.4 to 0.8 mm. With the quantity indicated in the table of characteristics, proceed as follows: Carry out the loading once the filter is placed in its location and the joining tubing is installed. -
Page 17: Filtration
S I G N A T U R E Afterwards, stop the pump and place the selector valve handle in the “FILTRATION” position In this position, the filter is preparing to work, the water from the pool enters via the diffuser, leaves through the collector and is returned to the pool. -
Page 18: Wash
S I G N A T U R E These pressures are guidelines for typical installations; the working pressure may vary depend- ing on the design. It is important to remember that the working pressure depends on whether the sand is clean. An increase to this pressure of 0.5 bars would indicate the need to carry out a wash. -
Page 19: Rinse
S I G N A T U R E DRAINING 7.7.5. RINSE After having carried out a filter “WASH” and put the installation in the “FILTRATION” position, the water will be cloudy for a few seconds as it flows to the pool. Use the “RINSE” function on the selector valve to avoid the cloudy water from circulating to the pool. -
Page 20: The Winter Period
S I G N A T U R E 7.8.1. THE WINTER PERIOD To avoid damaging the filter over the winter period the following operations must be carried out: Do a wash and rinse according the previous instructions. Empty the water from the filter. Remove the filter cover to keep it ventilated during the inactive period. - Page 21 S I G N A T U R E 8. Chemical resistance table Product Concentration Resistant Free residual chlorine ,8 mg/l Combined chlorine 0,7 mg/l Total bromine 3,5 mg/l Isocyanuric acid 90 mg/l Ammonia 0,6 mg/l Nitrates mg/l Aluminium 0,35 mg/l Copper ,5 mg/l Silver ,5 mg/l...
- Page 22 S I G N A T U R E 10. “DO AND DO NOT” DO NOT Check the state of the packaging Do not leave the box in bad weather con- and accompanying information about ditions or in a very humid warehouses. Transportation stacking Do not roll the filter. and warehouse Always transport inside the box Do not drag the filter...
