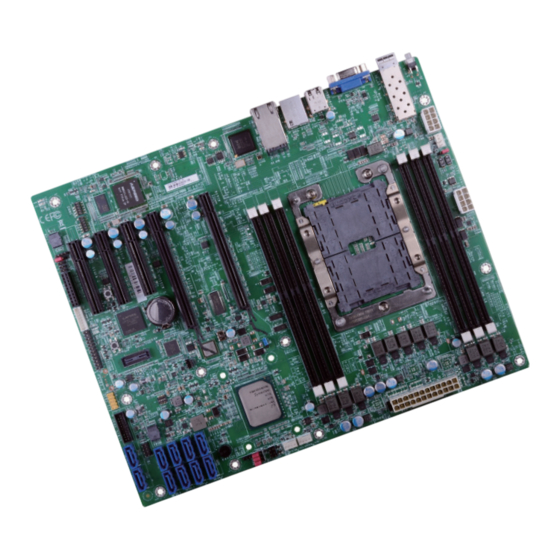

- Page 1 PL610-C622 ATX Industrial Motherboard User’s Manual A48100952...
-
Page 2: Copyright
Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be re- This equipment has been tested and found to comply with the limits for a Class B digital produced in any form or by any means or used to make any transformation/adaptation without device, pursuant to Part 15 of the FCC rules. -
Page 3: Table Of Contents
Table of Contents Copyright ....................2 COM (Serial) Ports ................20 Cooling Fan Connectors ..............21 Trademarks ....................2 Power Connectors ................21 FCC and DOC Statement on Class B ............2 Front Panel Connector ..............22 Warranty ....................4 LEDs ....................23 Static Electricity Precautions ...............4 Expansion Slots ................23 PLD Update Connector ..............25 Safety Measures..................4 Battery ..................25... -
Page 4: Warranty
Warranty Static Electricity Precautions 1. Warranty does not cover damages or failures that arised from misuse of the product, It is quite easy to inadvertently damage your PC, system board, components or devices even inability to use the product, unauthorized replacement or alteration of components and before installing them in your system unit. -
Page 5: About The Package
The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. • One PL610-C622 motherboard • One COM port cable (Length: 400mm, 2 x COM ports) •... -
Page 6: Chapter 1 - Introduction
Storage: 5 to 90% RH 1 x Fiber 10 GbE MECHANICAL Dimensions ATX Form Factor 2 x USB 2.0 305mm (12") x 244mm (9.6") PS/2 1 x PS/2 (mini-DIN-6) COOLER Heatsink Narrow ILM LGA 3647 (optional) Display 1 x VGA Chapter 1 Introduction www.dfi.com... -
Page 7: Features
USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power consumption, and is backward compatible with USB 2.0. It is a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible exter- nal Plug and Play peripherals. Chapter 1 Introduction www.dfi.com... -
Page 8: Chapter 2 - Hardware Installation
USB 4/5 USB 5/6 SATA 5 SATA 4 JTAG Update Panel USB 2.0 USB 3.0 (from left to right) BMC UART5, RSVD CPLD UPDATE (JP11), Enable eSI (J14), UART Debug Select (JP2), BMC Password Clear Chapter 2 Hardware Installation www.dfi.com... -
Page 9: Installing The Dimm Module
4. Make sure the notch on memory card is aligned to the key on the socket. Features • Six 288-pin DDR4 DIMM • Up to 1TB 3DS LRDIMM or 192GB RDIMM DDR4 DIMM • 2600/2400/2133/1866/1600MHz Notch Socket Top View Eject Tab Eject Tab Socket Side View Step 1 Step 2 Chapter 2 Hardware Installation www.dfi.com... -
Page 10: Removing The Dimm Module
Hold the card by its edges and remove it from the slot. Socket Side View Socket Side View Step 1 Step 1 Step 1 Step 1 Step 2 Step 2 Step 2 Step 2 Step 3 Step 3 Step 3 Step 3 Chapter 2 Hardware Installation www.dfi.com... -
Page 11: Cpu
2. Insert the CPU into the CPU carrier. The gold triangular mark on the CPU must align with Protective the triangular corner of the CPU carrier shown on the photo. Protective Triangular mark Gold triangular mark CPU Carrier Chapter 2 Hardware Installation www.dfi.com... - Page 12 Mounting hole #1 (bottom view) Triangular hole 6. Connect the CPU fan’s power cable to the CPU fan connector on the sys- tem board. 4. Slide the protective caps open and detach them from the board. Chapter 2 Hardware Installation www.dfi.com...
-
Page 13: Jumper Settings
3. Plug the power cord and power-on the system. ▲ 1-2 On: BMC SMB Host ▲ 2-3 On: PCH SMB Host (default) 1 2 3 1 2 3 ▲ 1-2 On: Normal (default) ▲ 2-3 On: Clear CMOS Chapter 2 Hardware Installation www.dfi.com... -
Page 14: Me Firmware Update
▲ 2-3 On: 10G LAN + PCIe x4 ▲ 1-2 On: Disable (default) ▲ 2-3 On: ME Force Update Note: Please also refer to the BIOS settings in Chapter 3 to enable 10G LAN on PCIE3. Chapter 2 Hardware Installation www.dfi.com... -
Page 15: Enable Espi
▲ No Cap: LPC Mode (default) ▲ Cap On: eSPI Mode ▲ No Cap: UART1 as BMC ▲ Cap On: UART5 as Console Port BMC Console Port Chapter 2 Hardware Installation www.dfi.com... -
Page 16: Rsvd Cpld Update
J13 is used to clear the existing BMC password. Put on or remove the cap as illustrated below neighboring pins as illustrated below: to switch between signals: ▲ 1-2 On: RSVD CPLD update ▲ 2-3 On: Normal (default) ▲ No Cap: Normal (default) ▲ Cap On: Clear BMC Pasword Chapter 2 Hardware Installation www.dfi.com... -
Page 17: Rear Panel I/O Ports
Configure the display devices in the “Advanced” menu (“Video Configuration” submenu) of the BIOS. Refer to the chapter 3 for more information. Driver Installation Install the graphics driver. Refer to the chapter 4 for more information. Chapter 2 Hardware Installation www.dfi.com... -
Page 18: Lan Ports
Configure the onboard LAN ports in the “Advanced” menu (“ACPI Configuration” submenu) of the BIOS. Refer to the chapter 3 for more information. USB 5/6 Driver Installation Install the LAN drivers. Refer to the chapter 4 for more information. ▲ USB 3.0 Chapter 2 Hardware Installation www.dfi.com... -
Page 19: I/O Connectors
ATA data cable to a SATA connector and the other end to your Serial ATA device. BIOS Setting Configure the Serial ATA drives in the Advanced menu (“SATA Configuration” submenu) of the BIOS. Refer to the chapter 3 for more information. Chapter 2 Hardware Installation www.dfi.com... -
Page 20: Com (Serial) Ports
COM 1 is fixed at RS232. Please refer to the pin assignment listed below. The serial port is asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices. Chapter 2 Hardware Installation www.dfi.com... -
Page 21: Cooling Fan Connectors
Insufficient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements. Chapter 2 Hardware Installation www.dfi.com... -
Page 22: Front Panel Connector
Power CONT PWR-LED STAT Signal Signal HD Power Power HD-LED Signal Signal CONT STAT AMBER Power SMB PWR SEQ DAT 8 RESET Front Panel RST Signal SMB PWR SEQ CLK 8 Case open ATX-SW Signal Chapter 2 Hardware Installation www.dfi.com... -
Page 23: Leds
M.2 more suitable in application for solid-state storage. The on- ARM running on Flash (instruction fetch from flash) 10Hz board socket is reserved for a 22mm-by-80mm M key module with a standoff. Chapter 2 Hardware Installation www.dfi.com... - Page 24 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. Chapter 2 Hardware Installation www.dfi.com...
-
Page 25: Pld Update Connector
JTAG PLD EN N • Replace only with the same or equivalent type recommended by the manufacturer. JTAG PLD RST N JTAG PLD TMS • Dispose of used batteries according to local ordinances. JTAG PLD TCK Chapter 2 Hardware Installation www.dfi.com... -
Page 26: Smbus Connector
JTAG BMC TDI 3V3 AUX JTAG BMC TMS JTAG BMC TCK SMB HOST STBY LVC3 SCL SMB HOST STBY LVC3 SDA JTAG BMC RTCK PU PCH TLS ENABLE STRAP JTAG BMC TDO MISC IBMC SRST N Chapter 2 Hardware Installation www.dfi.com... -
Page 27: Lpc Debug Connector
33MHz LPC bus clock. For more information about LPC bus refer to the Intel Low Pin Count Interface Specification Revision 1.1’. The table below indicates the ® pin functions of the LPC connector. Assignment Assignment LAD1 RST# LAD0 FRAME# LAD3 LAD2 SERIRQ 48MHz Chapter 2 Hardware Installation www.dfi.com... -
Page 28: Phy I2C Sda/Scl 1P8V Debug Connector
Clock Gen Clock Ref Connector ▲ PHY I2C SDA/SCL 1P8V Debug ▲ Clock Gen & Clock Ref Assignment Assignment SFFP0 EEPROM I2C SCL CLK 100M PE CLKREF P SFPP0 EEPROM I2C SDA CLK 100M PE CLKREF N Chapter 2 Hardware Installation www.dfi.com... -
Page 29: Chapter 3 - Bios Setup
“Reset” button. You may also additional options are available for that field. To display the submenu, move the highlight to restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. that field and press <Enter>. Chapter 3 BIOS Setup www.dfi.com... -
Page 30: Main
00 to 59. Second displays seconds from 00 to 59. System Date The date format is <month>, <date>, <year>. Month displays the month, from 01 to 12. Date displays the date, from 01 to 31. Year displays the year, from 2000 to 2099. Chapter 3 BIOS Setup www.dfi.com... -
Page 31: Acpi Configuration
Automatically power the system on at a particular time every day from the Real-time clock bat- tery. Wake up time When Wake On RTC is set to enabled, specify the wake up time of the day: <hour> (00~23), <minute> (00~59), <second> (00~59). Chapter 3 BIOS Setup www.dfi.com... -
Page 32: Cpu Configuration
Enable or disable Hyper-threading. When it is enabled, a physical core will perform as two logical processors, and the user may experience better computational efficiency of the system. Please make sure that the OS operating on your system is optimized for Hyper-Threading, e.g. Windows and Linux. Chapter 3 BIOS Setup www.dfi.com... -
Page 33: Sata Configuration
Hot Plug <Disabled> Hot Plug Help ↑/↓ Select Item F5/F6 Change Values Setup Defaults Exit ←/→ Select Item Enter Select SubMenu Save and Exit Enable or disable the Hot-pluggable function of the SATA port. Chapter 3 BIOS Setup www.dfi.com... -
Page 34: Usb Configuration
JP14 is set to “1-2 on”, PCIE3 will be performing at x8 bandwidth without on-board 10G LAN. Enable or disable to clear XHCI controller ownership change SMI bit by BIOS. Note: Please refer to Chapter 2 to set up Jumper settings. Chapter 3 BIOS Setup www.dfi.com... -
Page 35: Debug Configuration
Select the speed of the PCI Express Root Port: Auto, Gen1 (2.5 GT/s), Gen2 (5 GT/s) or Gen3 (8 GT/s). Hot Plug This field is used to enable or disable the PCI Express Hot Plug. Chapter 3 BIOS Setup www.dfi.com... -
Page 36: Uefi Manager
Enter the numeric value for EFI debug print level. The default is 0x8000004F. EFI debug serial port Enter the serial port to output EFI debug message. The default is 0x3F8. EFI debug baud rate Enter the baud rate to output EFI debug message. The default is 115200. Chapter 3 BIOS Setup www.dfi.com... -
Page 37: Sio Ast2500
Case Open Alert Enable or disable buzzer beep when case is open. When disabled, system will clean case open status. Clean Case Open Status Select this field and press Enter, system will clean the case open status. Chapter 3 BIOS Setup www.dfi.com... -
Page 38: Insydeh2O Setup Utility Rev
Enter the number of minutes the system firmware has to boot the OS before it takes the time- out action. Valid values are from 2 to 8 minutes. Watchdog Timer Action Select timeout action: No Action, Hard Reset, Power Down, or Power Cycle. Chapter 3 BIOS Setup www.dfi.com... -
Page 39: Esc
Enter the LAN channel number for BMC. The valid LAN channel number is 1, 2, or 3. Privilege Select the privilege: Reserved, Callback, User, Operator, Administrator, or No Access. Add current setting to list Select this field and press Enter to add current setting to list. Chapter 3 BIOS Setup www.dfi.com... - Page 40 Change Values Setup Defaults Exit ←/→ Select Item Enter Select SubMenu Save and Exit Exit ←/→ Select Item Enter Select SubMenu Save and Exit Scroll down to see the rest of the list. Chapter 3 BIOS Setup www.dfi.com...
-
Page 41: Console Redirection
Select data bits: 7 bits or 8 bits. Parity Select parity bits: none, even or odd. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: none, RTS/CTS or XON/XOFF. Chapter 3 BIOS Setup www.dfi.com... -
Page 42: Security
Power on Password When a supervisor password is installed, this field will appear for configuration. Disable Input of password is required when accessing the BIOS Setup Utility. Enable Input of password is required during Power-on Self-test (POST). Chapter 3 BIOS Setup www.dfi.com... -
Page 43: Boot
If you select “Legacy Boot Type”, “PXE Boot to LAN”, “USB Boot” and “Quiet Boot” will show Note: If the boot type is set to UEFI, the method for RAID volume creation will be differ- ent. Please refer to Chapter 5 ˗ RAID for more information. Chapter 3 BIOS Setup www.dfi.com... -
Page 44: Exit
BIOS with the flash utility. For updating InsydeH2O BIOS in UEFI mode, you may refer Main Advanced Security Boot Exit to the how-to video at https://www.dfi.com/tw/knowledge/video/31. Exit system setup and save your changes. Exit Saving Changes Load Optimal Defaults Discard Changes Save Setting to file ►... -
Page 45: Chapter 4 - Supported Software
You may acquire the software from your sales representa- tives, from an optional DVD included in the shipment, or from the website download page at https://www.dfi.com/DownloadCenter. Intel Chipset Software Installation Utility The Intel Chipset Software Installation Utility is used for updating Windows INF files so that ®... - Page 46 We recommend that you skip this process by disabling this function then click “Next”. 2. Read the license agreement then click “Yes”. 5. Click “Yes, I want to restart this computer now” then click “Finish”. Restarting the system will allow the new software installation to take effect. Chapter 4 Supported Software www.dfi.com...
- Page 47 2. Click “I accept the terms in the license agreement” then click “Next”. 3. Select the program features 6. After completing installa- you want installed then tion, click “Finish”. click “Next”. Chapter 4 Supported Software www.dfi.com...
- Page 48 To install the reader, download “PL610 Driver Package” iso file at our website. Click “Adobe Acrobat Reader 9.3”. 1. Click “Next” to install or click “Change Destination Folder” to select another folder. 4. Click “Finish” to exit installation. 2. Click “Install” to begin instal- lation. Chapter 4 Supported Software www.dfi.com...
- Page 49 “Change to choose another destination folder”. 2. Read the license agree- ment and click “I accept the terms in the License Agreement”. Then, click “Next”. 5. Confirm the installation and click “Next”. Chapter 4 Supported Software www.dfi.com...
- Page 50 Chapter 4 6. Click “Yes, I want to restart this computer now” to complete the installation and then click “Finish”. Chapter 4 Supported Software www.dfi.com...
-
Page 51: Chapter 5 - Raid
Single Drive Failure Disk mirroring Block-level data striping with RAID 5 Single Drive Failure distributed parity 1 Disk Per Mirrored Combination of RAID 0 (data striping) RAID 10 Stripe (not same mirror) and RAID 1 (mirroring) Chapter 5 RAID www.dfi.com... - Page 52 5. Press <Enter>. 6. Use the up or down arrow keys to select the strip size and press <Enter>. 7. Enter the volume size and press <Enter>. 8. At the prompt, press <Y> to confirm volume creation. Chapter 5 RAID www.dfi.com...
- Page 53 RAID volume and/ or SATA drives. It enables enhanced performance and power management for the storage subsystem. To install the driver, download “PL610 RSTe Driver” zip file at our website. Please refer to Chapter 4 for more information. Chapter 5 RAID www.dfi.com...
