LUXTRAN
™
Luminaires for Tunnel Applications
TLR4 SERIES
When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED. CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D'INSTALLATION
PERTINENT, PAR UNE PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET SON FONCTIONNEMENT
AINSI QUE LES RISQUES INHÉRENTS. DISCONNECT POWER TO ALL CIRCUITS BEFORE WIRING FIXTURE. INSTALL IN
ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT TO AN UNGROUNDED SUPPLY. READ ALL
FIXTURE MARKINGS AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE. SUPPLEMENTAL INSTRUCTIONS MAY BE
LOCATED ON THE FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING ORIENTATION, OR MOUNTING RESTRICTIONS.
INSTALLATION INSTRUCTIONS
1. After removing existing wireway gasket and cleaning surface, install provided gasket and seal joints with RTV.
2. Wire provided socket assemblies to existing 277VAC input wiring.
Black- 277VAC input
White- Neutral
Green- Ground
3. Place latch brackets over wireway. See Figure 1. Connect green ground wire from cover to ground connection in
wireway. Feed connector with Red and Blue wires from master fixture through wireway and connect to satellite
fixture. Master fixtures on segments with one fixture will have long leads.
277VAC INPUT
MASTER FIXTURE
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS

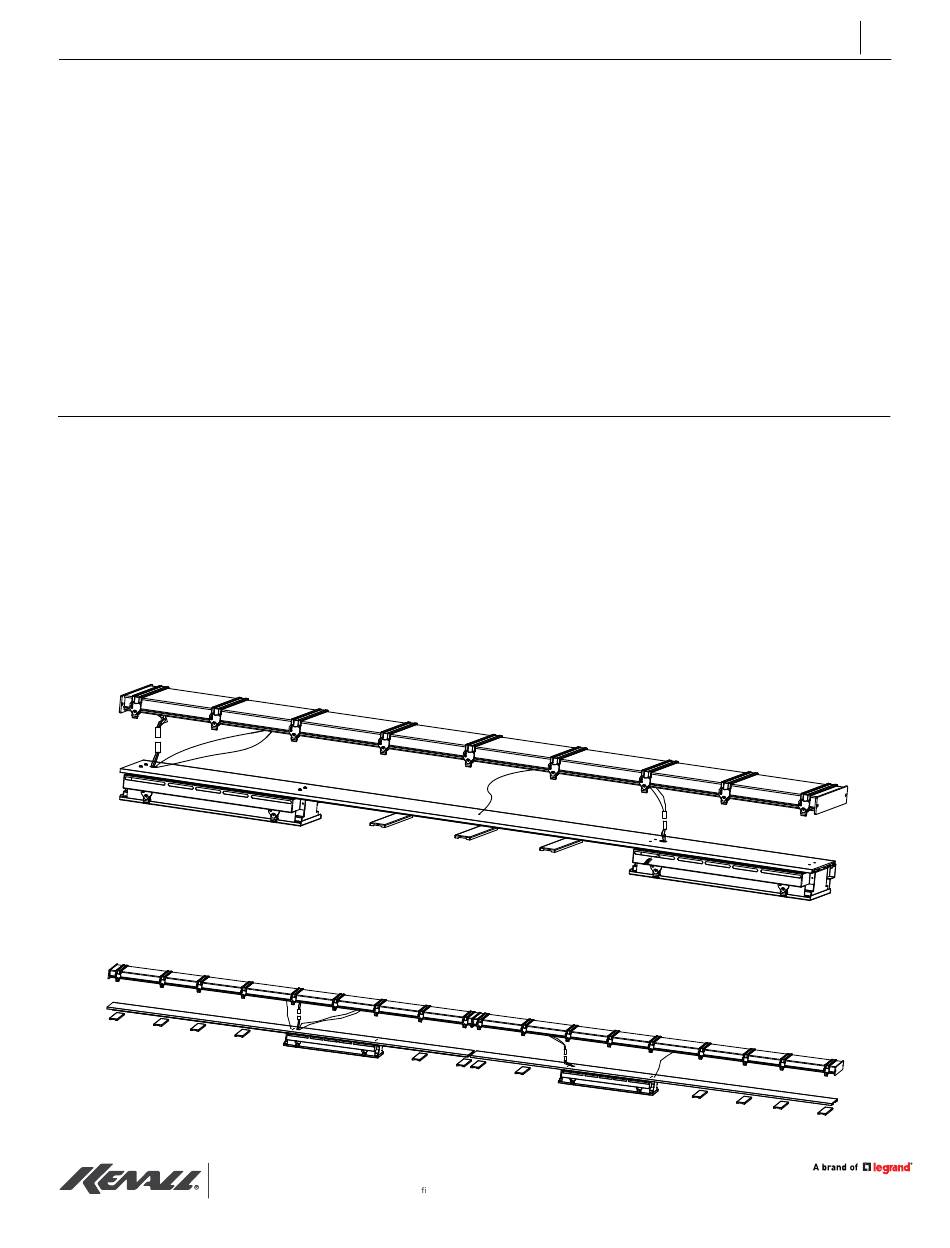

Figure 1
MASTER FIXTURE
Figure 2
INSTALLATION INSTRUCTIONS
GROUND WIRE
SATELLITE FIXTURE
SATELLITE FIXTURE
1
TLR4_F-5474_091118
Advertisement
Table of Contents
Related Manuals for LEGRAND Kenall LUXTRAN TLR4 Series
Summary of Contents for LEGRAND Kenall LUXTRAN TLR4 Series
- Page 1 LUXTRAN ™ INSTALLATION INSTRUCTIONS Luminaires for Tunnel Applications TLR4 SERIES IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, including the following: THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- Page 2 INSTALLATION INSTRUCTIONS 4. Connect socket to fixture receptacle and push wiring back into wireway. 5. Raise fixture and secure using rotary latches on latch brackets. See Figure 3. Figure 3 6. Drivers and led modules attached to door assembly for easy replacement. 7.
-
Page 3: Customer Service
INSTALLATION INSTRUCTIONS CUSTOMER SERVICE For technical assistance, call 1-800-4KENALL (1-800-453-6255). WARRANTY For warranty information visit www.kenall.com/Resources/Certified-Performance-Warranties www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents found at www.kenall.com/patents.
