SHHA10000
ABUS Z-Wave Wireless Socket
Important information and FAQs about this product and other
products can be found on the website
www.abus.com
Version 1.3
Original operating instructions in English.
Keep for future use!

Advertisement

Table of Contents
loading

Related Manuals for Abus SHHA10000

Summary of Contents for Abus SHHA10000

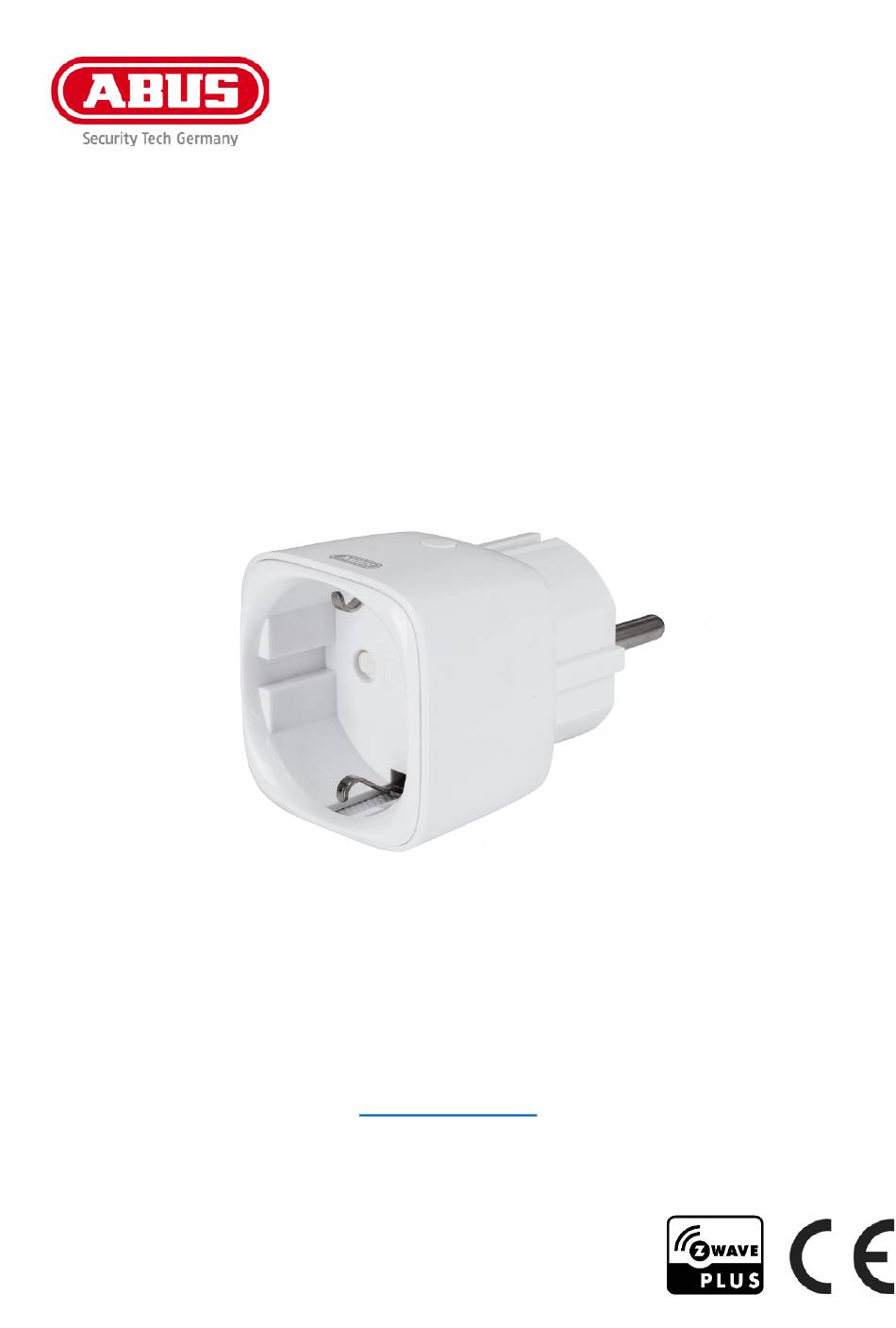

  • Page 1 SHHA10000 ABUS Z-Wave Wireless Socket Important information and FAQs about this product and other products can be found on the website www.abus.com Version 1.3 Original operating instructions in English. Keep for future use!
  • Page 2 ABUS Security Center is limited to the purchase price of the product.
  • Page 3 English Important Safety Informations Intended Use Only use the device for the purpose for which it was built and designed. Any other use is considered unintended. All guarantee claims are invalid in the event of damage caused by non-compliance with this safety information.
  • Page 4 English Information on handling batteries  Make sure that batteries are kept away from small children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. If this happens, consult a doctor immediately. ...

  • Page 5: Table Of Contents

    English Table of Contents Product introduction ......................... 6 1.1. Scope of Delivery........................6 1.2. Device features ........................6 1.3. Operating principle ........................6 1.4. Performance Features ......................7 1.5. Use in systems of different manufacturers ................7 Overview of functions ........................8 2.1.

  • Page 6: Product Introduction

    Status-LED 1.3. Operating principle The SHHA10000 was developed for use in home automation systems that use the Z-Wave wireless standard. The power outlet enables you to switch a large number of your electronic devices - conveniently and directly via the gateway's app or automatically according to an individual schedule.

  • Page 7: Performance Features

    English 1.4. Performance Features The ABUS Z-Wave SHHA10000...:  …is a wireless socket  …is Z-Wave PLUS compatible & certified  …supports the Z-Wave S2 Standard (Security 2)  … measures your (current) consumption values reliably over any period of time ...

  • Page 8: Overview Of Functions

    English 2. Overview of functions 2.1. Inclusion / Add Device Plug the Wireless-Socket into an outlet. The Status- LED is flashing. Click the + (Add) button in your Z-Wave App and follow the further instructions Press the Network-Button on the Socket once The App will show if the Add device process was successful The Status LED does not flash anymore but indicates...

  • Page 9: Operating

    English 2.2. Operating Switch the Wireless Socket either via the integrated button or once connected to a Z-Wave Gateway via Status-LED is on = Wireless Socket is switched on Status-LED is off = Wireless Socket is switched off Never connect wireless Sockets in series! The Wireless-Socket must be easily accessible.

  • Page 10: Reset (Factory-Reset)

    English 2.4. Reset (Factory-Reset) Keep pressing the Button on the socket for more than 5 seconds (the flash interval of the Status LED is now accelerated) The wireless socket is now restored to factory settings Note: This procedure should only be used if the primary gateway is not capable of acting.

  • Page 11: Overview Configuration Parameter

    English 3.2. Overview Configuration Parameter Z-Wave products can be used in the network immediately after inclusion. Through configuration settings, however, the behaviour of the device can be adapted even better to the requirements of the application and additional functions can be activated. Para- Byte- Default-Value...
  • Page 12 English The threshold value serves as an additional condition for the time-based report. If the threshold value was not exceeded, the Power report time-based report is not sent. (Threshold The value 0 deactivates the power report value in percent) threshold. ...

  • Page 13: Command Classes

    English 3.3. Command Classes Supported: 1. Association Group Information V1 2. Association V2 3. Basic V1 4. Binary Switch V1 5. Configuration V1 6. Device Reset Local V1 7. Firmware Update MD V4 8. Manufacturer Specific V2 9. Meter V3 10.

  • Page 14: Technical Specifications

    English 4. Technical Specifications Parameters Unit SHHA10000 Dimensions 45 x 45 x 70 Weight Operating Temperature °C 0 – 25 Max. Humidity IP Class Radio frequency 868,42 (Z-Wave PLUS, Europe) Material ABS, polished Power Supply 220 – 240 V Power consumption Measuring range / tolerance 220 –...
