MDADZHMS/E
Multi-Source Audio Hub/Expansion Hub
for Honeywell Structured Wiring
MDADZHMS
Installation Manual
Models:
MDADZHMS
Multi-Source Audio Hub for Honeywell QuickNetwork Panel
MDADZHMSE
Multi-Source Audio Expansion Hub for Honeywell QuickNetwork Panel
HBADZHMS
Multi-Source Audio Hub for Honeywell SuperPro Panel
HBADZHMSE
Multi-Source Audio Expansion Hub for Honeywell SuperPro Panel
Distribution Panel
Multi-Source Audio Hub
!
!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Abus MDADZHMS
Summary of Contents for Abus MDADZHMS
-

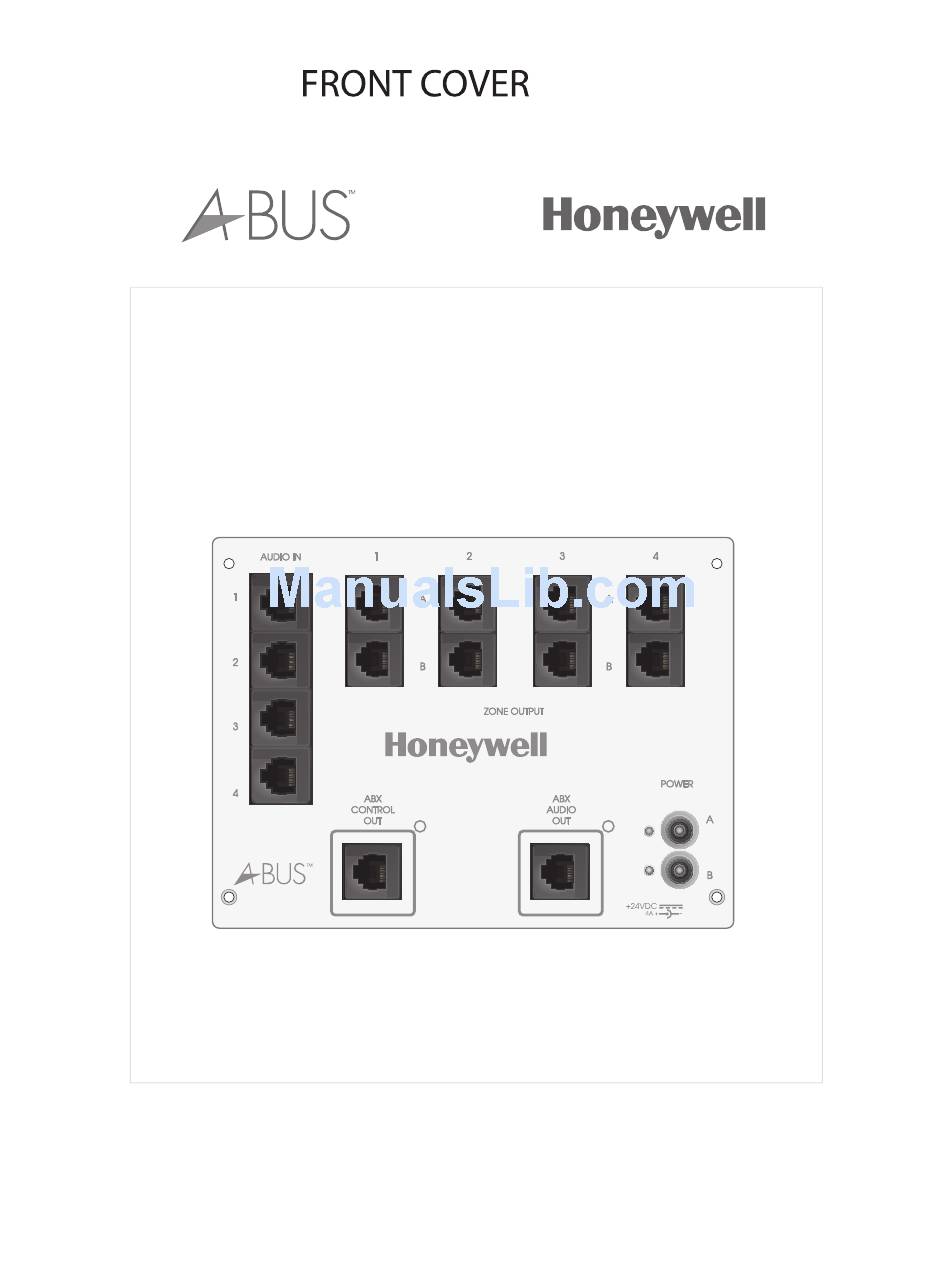

Page 1: Installation Manual
MDADZHMS/E Multi-Source Audio Hub/Expansion Hub for Honeywell Structured Wiring Distribution Panel Multi-Source Audio Hub MDADZHMS Installation Manual Models: MDADZHMS Multi-Source Audio Hub for Honeywell QuickNetwork Panel MDADZHMSE Multi-Source Audio Expansion Hub for Honeywell QuickNetwork Panel HBADZHMS Multi-Source Audio Hub for Honeywell SuperPro Panel... - Page 2 A-BUS components are simple to service or upgrade, so upgrading your system with components that offer improved features should be easy. The MDADZHMS A-BUS Multi-Source Audio Hub is the core of your A-BUS system. It will accept up to four AUDZBX75 Source Input Modules to connect the Hub to a maximum of four source components.
- Page 3 – At least one AUDZ41RC A-BUS IR Remote Control is needed with the MDADZHMS Multi-Source Audio Hub. This Remote Control includes a dedicated A-BUS bank and includes keys for most standard functions. The Remote Control has a code library built in; however, all keys have learning capability and can also learn multiple commands (macros) including the mode keys.
- Page 4 The MDADZHMSE Multi-Source Audio Expansion Hub is similar to the MDADZHMSE Multi-Source Audio Hub and connects directly to it. The MDADZHMS Multi-Source Hub has two ABX Outputs for connection to the MDADZHMSE Expansion Hub; one for Audio [2] and one for Control [4]. The MDAD- ZHMSE has corresponding ABX Inputs and Outputs for accepting inputs from an MDADZHMS Multi- Source Hub and extending outputs to an adjacent MDADZHMSE Expansion Hub.
- Page 5 allows for up to four sources to be heard in up to sixteen zones simultaneously. Dining Room (Listening to CD) Kitchen (Listening to FM Radio) AUDZ45 AUDZ45 AUDZBX75 A-BUS Remote IR Remote Source Equipment AUDZBX75 Source Input Module Status Indicator [3] - The green status light indicates when the system is turned on.
- Page 6 MDADZHMS/E Multi-Source Audio Hub by pointing an A-BUS IR Remote at the Volume Control Module, which will repeat the IR commands to the MDADZHMS/E Hub. A-BUS is a very flexible system, it allows for many variations not normally possible in traditional multi-room systems.
- Page 7 Module be installed in an area where the built-in infrared sensor will not get flooded by direct sunlight. The AUDZ45 Volume Control may be located up to 100ft (30m) away from the MDADZHMS/E Hub. The A-BUS System uses Cat 5/5e wiring following the TIA 568A color code (see A-BUS Color Code).
-
Page 8: Specifications
MDADZHMSE A-BUS Multi-Source Audio Expansion Hub Inputs ABX Input 1 x RJ-45 Control In, 1 x RJ-45 Audio In from MDADZHMS Power 2 x 2.5 mm DC Sockets +V Centre (Banks A and B) A-BUS 2 x 4 Zones (RJ-45) (Bank A and B)
