Hydrel 4400 Series Installation Instructions

INSTALLATION INSTRUCTIONS

1. Remove screws—remove lens & gasket.
2. Remove socket yoke assembly.
3. Remove j-box cover hex screws
4. Make electrical connections as required.
5. Push supply wiring and splices back into j-box.
6. Seal conduit entry.
7. Mix potting compound as described on package and fill j-box with mixed compound.
8. Re-install j-box cover with hex screws.
9. Re-install socket yoke assembly
10. Install lamp
11. Aim lamp assembly
12. Re-install lens and gasket.
13. Install door and tighten screws evenly, as shown.
NOTE:
USE LAMP WITH
CORRECT ANSI CODE AND
RATED WATTAGE.
INSTALL FIXTURE WITH
FINISH GRADE IN EARTH OR
MASONRY ONLY.
©2006 Hydrel
Rev. 07/25/06
INS-4400 REV_1
TIGHTEN SCREWS
EVENLY USING A
CRISSCROSS PATTERN
TO 50 INCH POUNDS.
(MINIMUM)

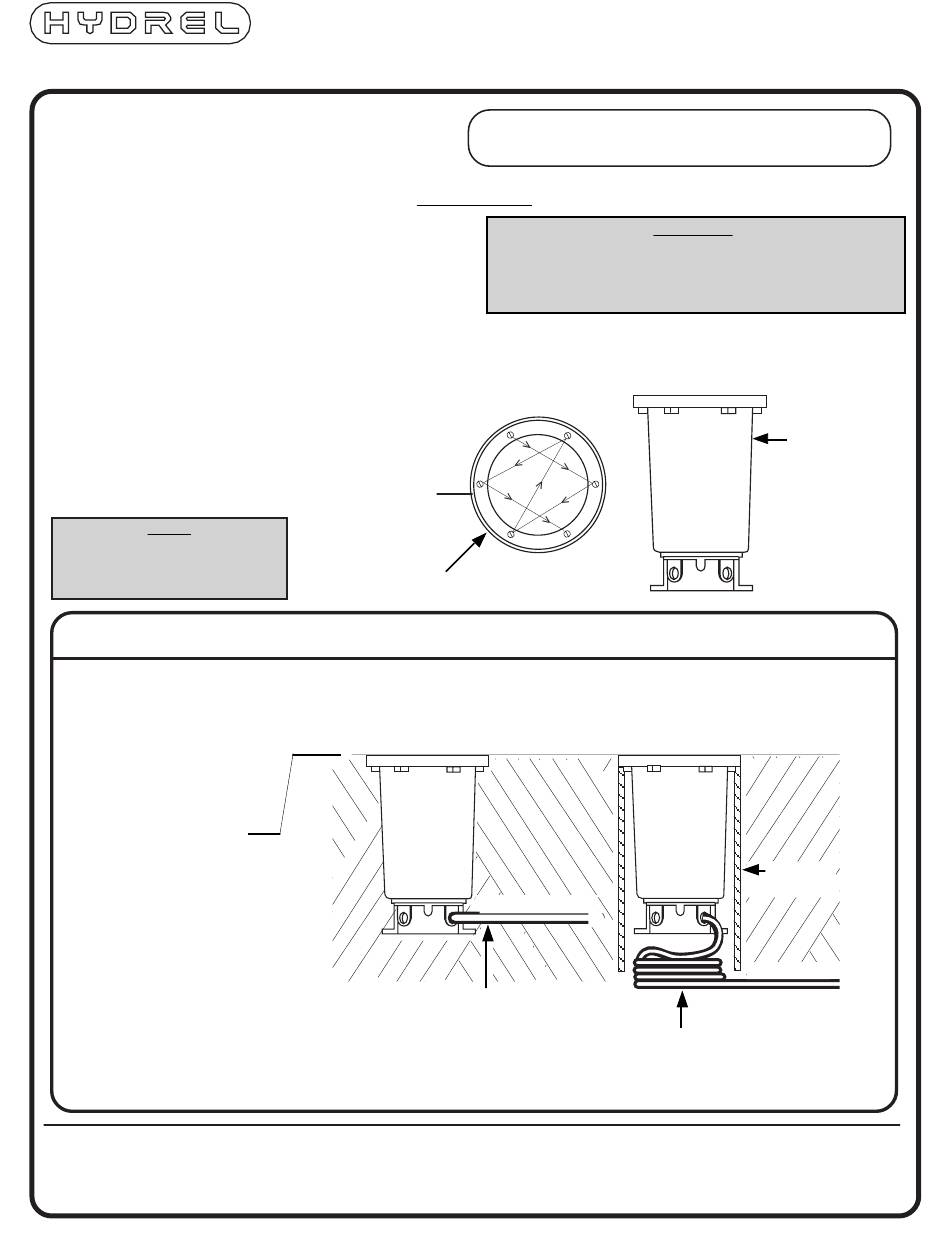

INSTALLATION DIAGRAM
TYPICAL INSTALLATIONS
CONDUIT
CONNECTED
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT
NOTICE. Any dimension on this sheet is to be assumed as a reference
dimension: "Used for information purposes only. It does not govern
manufacturing or inspection requirements." (ANSI Y14.5-1973)
FLUSH MOUNTED UPLIGHTS
Installation should be performed by a qualified
electrician in accordance with the National Electrical Code
LENS DOOR
DUE TO THE HIGH TEMPERATURE OF LENSES, CARE
SHOULD BE TAKEN IN SELECTION OF INSTALLATION
LOCATIONS TO AVOID THE POSSIBILITY OF CONTACT
SUPPLY CONDUIT
USE SUITABLE
THREAD SEALING
COMPOUND WHEN
CONNECTING
CONDUIT.
4400 SERIES
and relevant local codes.
CAUTION:
WITH BARE SKIN.
UF CABLE
CONNECTED
ABS WELL
(BY OTHERS)
SUPPLY
CABLE
LEAVE ENOUGH CABLE TO
REMOVE FIXTURE FOR
MAKING ELECTRICAL
CONNECTIONS.
MOST MODELS
HAVE A PROTEC-
TIVE EXTERIOR
COATING OF
BITUMINOUS PAINT
OR EPOXY. SHOULD
THIS FINISH BE
DAMAGED DURING
INSTALLATION,
ANY EXPOSED
SURFACE SHOULD
BE COATED WITH A
SIMILAR
MATERIAL.
