Hydrel M9000 Series Installation Instructions

INSTALLATION INSTRUCTIONS
Installation should be performed by a qualified electrician
in accordance with the National Electrical Code
and relevant local codes.
NOTICE:
DO NOT INSTALL RETROFIT WHILE SYSTEM
IS ENERGIZED. TURN OFF POWER BEFORE
INSTALLATION.
Remove door assembly.
1.
2. Remove existing lamp module by
unplugging it from the power cord.
3.
Remove existing power module or power
cord by removing the junction box cover &
gasket and undoing the wire nuts (3). Then
loosen the cord seal so you can pull the cord
all the way through. Do not discard the
junction box cover, screws and gasket, you
will need to re-use those.
4. Install the new LED driver module by running
pig tailed supply cord from power module
through cord seal and junction box cover
(provide enough cord for proper splicing
within junction box).
Tighten junction box seal nut around power
cord. Make electrical connection using
silicone-filled wire nuts or fill junction box
with re-enterable potting compound (PC21,
ordered separately) prior to replacing lid and
gasket.
5.
Re-install junction box cover and gasket.
Tighten to ensure proper sealing.
CAUTION: DO NOT OVER TIGHTEN
(20 in-lbs or 2 N-m).
6. Install the new LED lamp module by plugging
it into the driver and positioning it in the
housing to key into the existing mounting
ring to maintain original aiming.
7. Close the fixture by replacing the metal door.
CAUTION: DO NOT OVER TIGHTEN
(20 in-lbs or 2 N-m).
©2014 Acuity Brands Lighting, Inc.
7/30/15
M9000 LED retro
M9000 Series LED Retrofit
NOTE: Hydrel Reserves The Right To Modify Specification Without Notice.
Any dimension on this sheet is to be assumed as a reference dimension:
"Used for information purposes only. It does not govern manufacturing or
inspection requirements." (ANSI Y14.5-1973)
SUITABLE FOR WET LOCATIONS

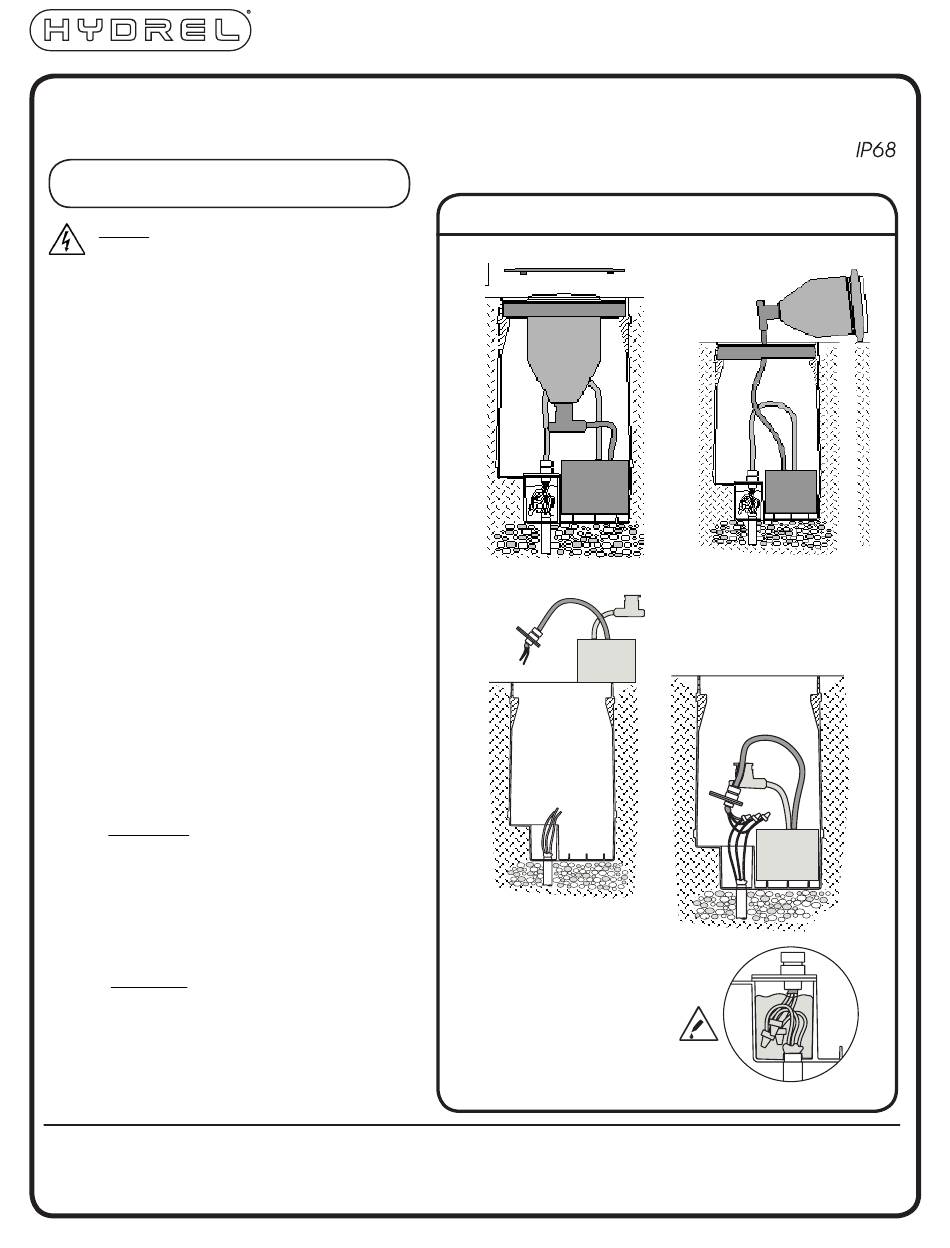

INSTALLATION DIAGRAM
1.
3.
2.
4.
