Summary of Contents for GEZE TSA 160
- Page 1 Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE TSA 160 Swing Door Drive for Automatic Doors Planning document...
- Page 2 This is to certify in accordance with § 22 para.2 No. 2 of the Building Code (Landesbauordnung) for the Land Baden-Württemberg, that the building products: Swing door drive ‘’GEZE TSA 160 ’’ complies with the requirements • set forth by the technical rules in accordance with the Technical Schedule A part 1 (edition 98/2), consecutive number 6.14 of DIN 18 263-4...
-
Page 3: Table Of Contents
Fields of application Product features List of product variants Swing door drive for smoke and fire-proof doors TSA 160 F Accessories for TSA 160 F on fire-proof doors TSA 160 Invers and TSA 160 Z Invers TSA 160 WC-compartments for the handicapped... -
Page 4: Fields Of Application
Hospitals, surgeries Social rooms, toilets Where safety is the first priority: For safety locks and access control For fire prevention purposes (fire and smoke prevention) type TSA 160 F on single-leaf and double-leaf doors Where comfort is the choice: In shops... -
Page 5: Product Features

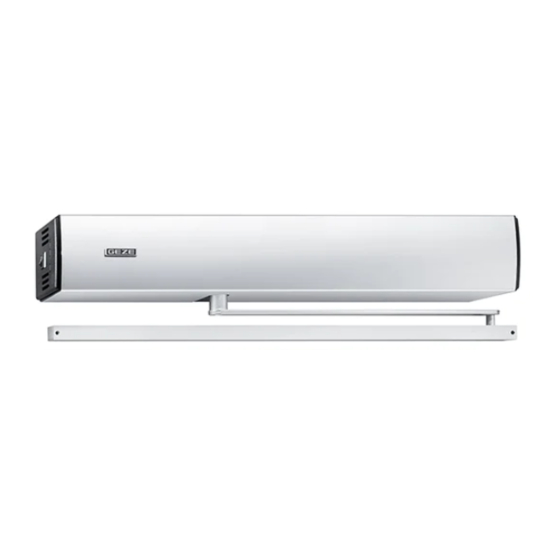

Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE Product features TSA 160 is an electronically controlled, electrohydraulic swing door drive. Opening is effected by a hydraulic pump system.The closing process is effected by a closing spring mechanism and adjustable hydraulic valves. Small exterior dimensions, i.e. the drive can also be installed with limited space conditions. -
Page 6: List Of Product Variants
Hinge side, pulling Opposite hinge side pushing incl. guide rail incl. linkage TSA 160 pulling + TSA 160 pushing for double-motion, double-leaf doors Hinge side pulling incl. guide rail Opposite hinge side pushing incl. linkage TSA 160 - IS pushing or pulling incl. -
Page 7: Swing Door Drive For Smoke And Fire-Proof Doors Tsa 160 F
Swing door drive for smoke and fire-proof doors TSA 160 F The TSA 160 F is a hold-open mechanism in accordance with the guidelines for hold-open systems issued by DIBt *) The drive system is used to automatically open and close fire-proof doors. The system can be actuated via the usual pulse generators. -
Page 8: Accessories For Tsa 160 F On Fire-Proof Doors
Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 Accessories for TSA 160 F on fire-proof doors TSA 160 F TSA 160 F - IS TSA 160 F - IS / TS the following items are required for the use on fire-proof doors: Smoke switch with energy supply e.g. RSZ 6... -
Page 9: Tsa 160 Invers And Tsa 160 Z Invers
Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE TSA 160 Invers and TSA 160 Z Invers Functional description Single or double-leaf doors are kept close by the escape route locking mechanism. The door is monitored via an emergency exit system which controls all safety-relevant functions. The doors are electro- hydraulically closed and opened through spring force. -
Page 10: Tsa 160 Wc-Compartments For The Handicapped
Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 TSA 160 WC-compartments for the handicapped Functional description After the pad switch had been operated, the toilet door opens and closes automatically upon lapse of a presettable hold-open time. By operating the changeover switch inside the toilet cabin, the user activates the illuminated sign “OCCUPIED“... -
Page 11: Description Of Drive
EN size 3 ... 6 (DIN 2 ... 5) Approach delay: 0 – 5 seconds Adjustable hold-open time: 0 ... 60 s (via jumper 0...10; 10...60 s) Door opening angle: max. 115° * not required for TSA 160 Invers, the closing force is generated electrically... - Page 12 Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 TSA 160 maximum leaf width as a function of leaf weight Leaf width [mm] 1400 1200 1000 Leaf width Leaf width Hinge centre [mm] 100 130 160 190 220 250 Leaf weight [kg] Hint: The doors have to be equipped with hinges suitable for automatic function.
- Page 13 Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE TSA 160 minimum and maximum leaf widths, hinge sizes Single-leaf doors minimum maximum door width door width (mm) (mm) TSA 160 pushing 1400 TSA 160 pulling bei AV = 0 mm 1400 bei AV = 60 mm *...
-
Page 14: System Description
Guide rail or standard linkage The possible use depends on the type of application. A pushing-version linkage is required for smoke and fire-proof doors with TSA 160 drive (DIN 18263 part 4). Linkage for reveal depth 0 ... 100 mm - 100 ... -
Page 15: Technical Features
Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE Technical Features Max. leaf width: 1400 mm EN size: EN 3 to EN 6 (DIN size 2 ... 5) Max. leaf weight: 250 kg Dimensions: Length 690 mm Height 100 mm (without spindle and lever) -
Page 16: Connection Possibilities For Actuation Elements
Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 Connection possibilities for actuation elements all known approach monitor elements can be connected, e.g.: Radar movement detector for temperature-independent response, even direction sensing Infra-red movement detector Passive infra-red movement detector Pushbuttons of all kind, such as Code-card reader, key-operated switch, radio control unit etc. -
Page 17: Safety Sensors
Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE Safety sensors Field of application Safety sensors are used to monitor the swiveling area of automatic doors. The door stops moving as soon as one or several persons step within the detection range of the sensor. -
Page 18: Side View And Installation Dimensions Tsa 160
Safety sensor AIR 16 (without scales) Spindle extension optional 24, 30, 45 mm not illustrated above Dimensions for direct mounting of drive Further details see installation drawing No 70423-9-9920 (Swing door drive TSA 160 size 2-5 incl. safety and actuation sensor) - Page 19 Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE Dimensions of drive and sensors door DIN right pushing Drive and actuation sensor Safety sensor hinge side opposite hinge side Mounting dimensions drive door DIN right pushing Dimensions for actuation sensor in [brackets] Hinge centre 487.5...
-
Page 20: Side View And Installation Dimensions Tsa 160 And Tsa 160 F-Is
Further details see installation drawing No 70437-9-9910 (Swing door drive TSA 160F / F-IS) 2nd closing leaf = drive TSA 160 F-IS 1st closing leaf = drive TSA 160 or 1st closing leaf closer TS 160 2nd and 1st closing leaf incl. drive TSA 160 F... - Page 21 Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE TSA 160 F-IS incl. integrated closing sequence control B min = 1470 B max = 2800 Drive opposite hinge side TSA 160 F incl. external closing sequence control Drive opposite hinge side Mounting dimensions DIN right pushing...
-
Page 22: Side View And Installation Dimensions Tsa 160 Pulling
Dimensions for mounting of drive with mounting plate (mounting plate not illustrated) ( ) dimensions for safety sensor, [ ] dimensions for actuation sensor Further details see installation drawing No 70423-9-9921 (Swing door drive TSA 160 incl. safety and actuation sensor) - Page 23 Planungsunterlage TSA160 Datei 84338PuTSA160_GB_200999_.p65 GEZE Drive DIN left pulling incl. guide rail and safety sensor DIN right mirror image Mounting of basic drive TSA 160 pulling incl.: AV 60 mm... AV 0 mm Min. leaf width: 890 mm ... 950 mm...
-
Page 24: Side View And Installation Dimensions, 1- And 2- Leafs Tsa 160 Z And Tsa 160 Z-Is
Lever and guide rail, pulling function with guide rollers (without scale) Actuation sensor Safety sensor AIR16 AIR16 Dimensions for direct mounting of drive Further details see installation drawing No 70477-9-9804 (Swing door drive TSA 160 Z-IS incl. safety and actuation sensor) - Page 25 TSA 160 Z-IS incl. integrated closing sequence control B min = 1470 B max = 2800 guide rail 2nd closing leaf = drive TSA 160 Z-IS, hinge side 1st closing leaf = drive TSA 160 Z, hinge side Mounting dimensions DIN left or right pulling: ...mounting plate ...direct mounting...
-
Page 26: Cable Plan Single-Leaf Door
Allow cable to protrude at least 1 m out of the wall Note: Any warranty and service agreements will In addition: be rejected if GEZE products are combined Wiring diagram 70423/9-9750 with third-party products. For the installation and operation of the entire system the... - Page 27 Note: Any warranty and service agreements will be rejected if GEZE products are combined with third-party products. For the installation and operation of the entire system the guidelines (ZH1/494) for power-operated windows, doors and gates (issued by...
-
Page 28: Cable Plan Double-Leaf Door Incl. Integrated Closer Control
Note: Wiring diagram 70423/9-9750 Any warranty and service agreements will be rejected if GEZE products are combined with third-party products. For the installation and operation of the entire system the guidelines (ZH1/494) for power-operated windows, doors and gates (issued by... -
Page 29: Cable Plan Double-Leaf Door Incl. Central Smoke Control Unit
Note: Any warranty and service agreements will be rejected if GEZE products are combined with third-party products. For the installation and operation of the entire system the guidelines (ZH1/494) for power-operated windows, doors and gates (issued by... -
Page 30: Cable Plan Single And Double-Leaf With Door Control Unit Tz 220
= J-Y(ST)Y 2x4x0,6 mm = J-Y(ST)Y 2x2x0,6 mm In addition: = Cable conduit with Ø16 mm Wiring diagram TSA 160 Invers: 70423/9-9758 Wiring diagram TZ 220: 21208-9-0952 = LiYY(ST)Y 2x0,14 mm² = LiYY 4x2x0,25 mm² Allow cable to protrude at least 1 m out of the wall... -
Page 31: Cable Plan Tsa 160 Wc-Compartment For The Handicapped
Wiring diagram TSA 160 WC- the open door compartment for the handicapped Note: single-leaf Any warranty and service agreements will be rejected if GEZE products are combined 230 V 50 Hz with third-party products. - Page 32 100026 Beijing, P.R. China GEZE Finland Reinhold-Vöster-Straße 21-29 Tel. +86 (0)10 65 81 57-32/-42/-43 GEZE Engineering Bari Srl Branch office of GEZE Scandinavia AB 71229 Leonberg Fax +86 (0)10 65 81 57-33 Via Treviso 58 Postbox 20 Tel. +49 (0) 7152 - 203 - 5 94 E-Mail: gezebj@geze.com.cn...
