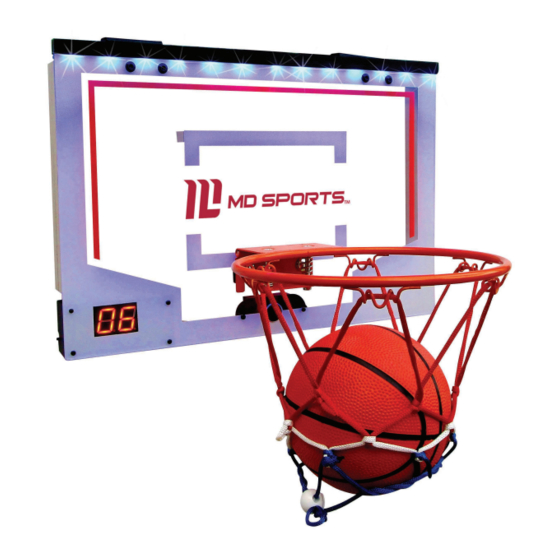

- Page 1 MODEL: BBG015_018M Menards ASSEMBLY INSTRUCTIONS ATTENTION DO NOT RETURN TO THE STORE Contact MD Sports Customer Service * For additional resources and Frequently Asked Questions, please visit us at themdsports.com...
- Page 2 LIMITED 90 DAYS WARRANTY This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during the limited warranty period, a part is found to be defective or breaks, we will offer replacement parts at no cost to you, the customer. The only exceptions to the warranty include mainframes, table tops, playing surfaces, batteries or tools.
- Page 3 TOOLS REQUIRED Phillips Screwdriver - Not Included Power Tools - Set Low Torque Standard (Flat Head Screwdriver) - Not Included Wrench - Included Allen Key - Included High Torque over tightened CAUTION! Electric screwdrivers may be helpful during assembly; however, please set a low torque and use extreme caution.
- Page 4 BBG015_018M PARTS LIST FOR FIG. 1 FOR FIG. 2 FOR FIG. 1 FOR FIG. 1 Mainframe Metal Support Hook M5x5mm Bolt FOR FIG. 2 FOR FIG. 3 FOR FIG. 1 FOR FIG. 2 Rim Net EVA Pad - A EVA Pad - B FOR FIG.
- Page 5 FIG. 1 Note: Tear off the backside papers of the EVA Pads - A (#7). FIG. 2 BBG015_018M (Continued on the next page.) www.themdsports.com...
- Page 6 FIG. 3 Note: Attach the part with larger meshes to the rim. BALL STORAGE BBG015_018M (Continued on the next page.) www.themdsports.com...
-
Page 7: Battery Installation
ELECTRONIC SCORER OPERATION Battery Installation Battery Box: Unscrew the bolt using a screwdriver and open the battery box. Insert 3 “AAA” batteries ( not included) in the order of polarity as shown on the inside cover. Then close the cover using a screwdriver. Reminding: a.
