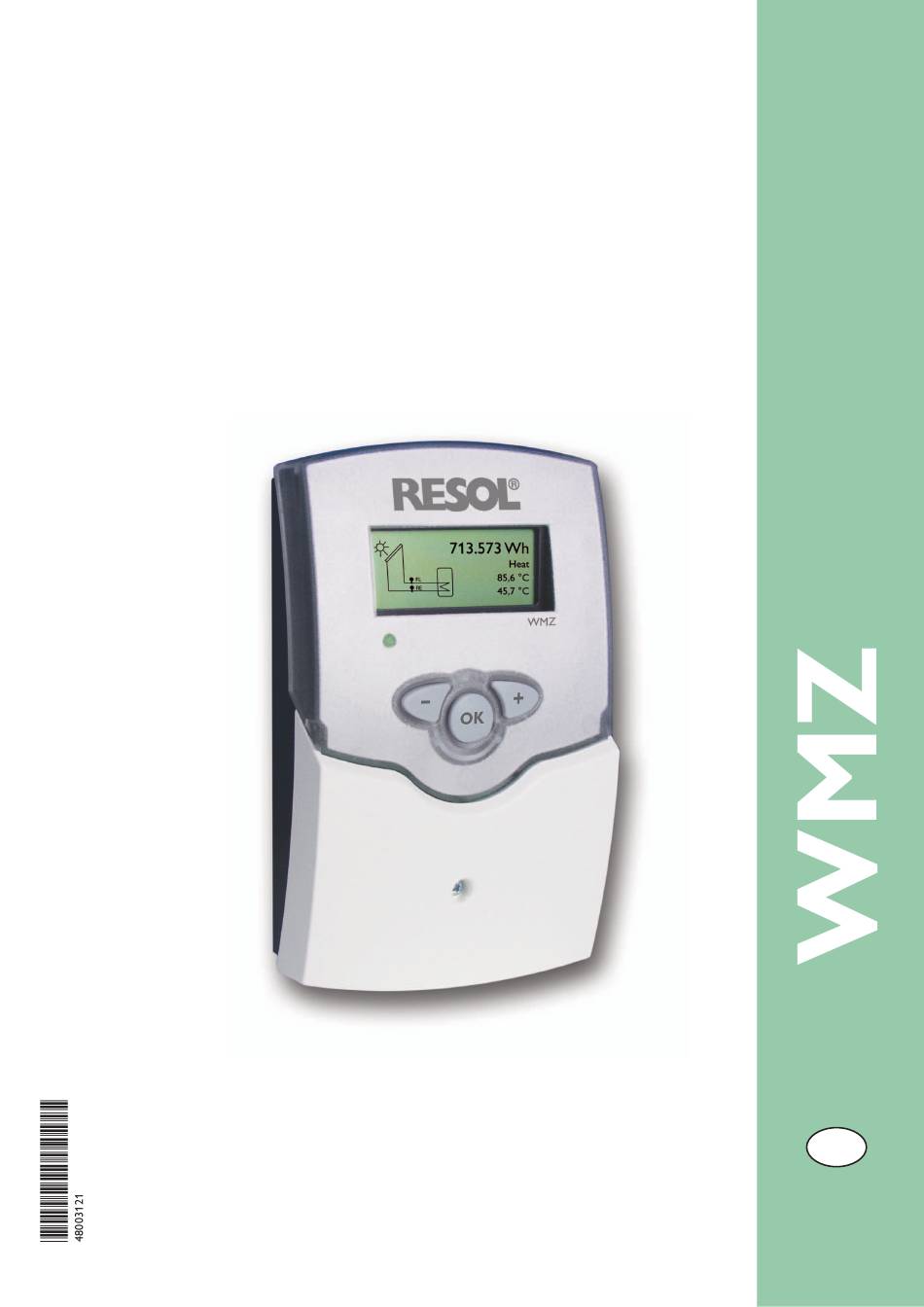

RESOL WMZ
Mounting
Connection
Operation
en
Manual
Thank you for buying this RESOL product.
Read this manual carefully to get the best perfomance from this unit
www.resol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Resol WMZ

Summary of Contents for Resol WMZ

  • Page 1 RESOL WMZ Mounting Connection Operation Manual Thank you for buying this RESOL product. Read this manual carefully to get the best perfomance from this unit www.resol.com...

  • Page 2: Table Of Contents

    Cascade with controller ................11 7. Troubleshooting ................12 Declaration of conformity We, RESOL Elektronische Regelungen GmbH, D-45527 Hattingen, declare un- der our sole responsibility that our product WMZ complies with the following standards: EN 55 014-1 EN 60 730-1 According to the regulations of the above directives, the product is labelled with...

  • Page 3: Technical Data

    1 x accessory bag 1 x spare fuse T0,8A 2 x screw and wall plug The RESOL WMZ is a universal ca- user levels can be changed. In the first 4 x strain relief and screw lorimeter for thermal solar systems...
  • Page 4 280 009 60 VBus board ® Attention! When the WMZ is connected to a controller, the VBus ® master board has to be replaced with the VBus slave board! ® When several WMZ are cascaded and connected to a data- logger or PC (see p.

  • Page 5: Installation

    VBus attached to the housing using the enclosed strain reliefs and 9 10 the respective screws. In order to use the RESOL WMZ along with a flowmeter sensor terminals ® protective earth RESOL V40, the following connection is to be carried out...

  • Page 6: Operation And Function

    Water Flow measurem. Safety prompt: Save? 2.2 Graphic display The WMZ has two display levels. In the 1st level, the heat 15 kWh quantity as well as flow and return temperatures are shown. Furthermore, it contains a system screen. Heat System screen: in the system screen, the system scheme and 85,6 °C...

  • Page 7: Determining The Ratio Of The Glycol-Water Mixture

    Function During the calculation of the transferred heat quantity, the calorimeter RESOL WMZ takes into account that the specific heat capacity c and the density r depend on the temperature and the mixing proportion (access to limited values). Using...

  • Page 8: Indication And Adjustment Channels

    Indication and adjustment channels Display channels Adjustment channels • FL (flow temperature in °C) • antifreeze type • RE (return temperature in °C) • antifreeze • heat quantity (in Wh or kWh respectively) • flow measurement (V40 or VTP) • volumetric flow rate •...

  • Page 9: Antifreeze Type

    5.9 Subaddress Adjustment of the subaddress. An individual module address Adjust. values: for one WMZ can be adjusted. This way it is possible to use Flow measurem. several WMZ with an individual address in one system. If Volume/Imp. 1,0 L/I several WMZ (up to max.

  • Page 10: Bus Mode

    “passive“). Bus mode Cascded Select bus mode “active“, if the WMZ is not connected to a controller and if data are recorded on a PC or datalogger. Select bus mode “cascaded“, if several WMZ are connected to a PC or datalogger.

  • Page 11: Examples Of Connection

    The connection sequence at the VBus is arbitrary. ® WMZ 0 * The maximum number of cascaded WMZ modules is 16. Whether this number can be reached depends on the construction. Disturbing factors can be the following: distances, voltage- carrying lines etc.

  • Page 12: Troubleshooting

    Troubleshooting Please pay attention to the following items, if the calorimeter WMZ is not working properly. fuse T0,8A T1,25A Netz / Mains 115 V ~ VBus 9 10 Operating control lamp flashes red. Operating control lamp off. Sensor defect. An error code instead of a Check the power supply.
