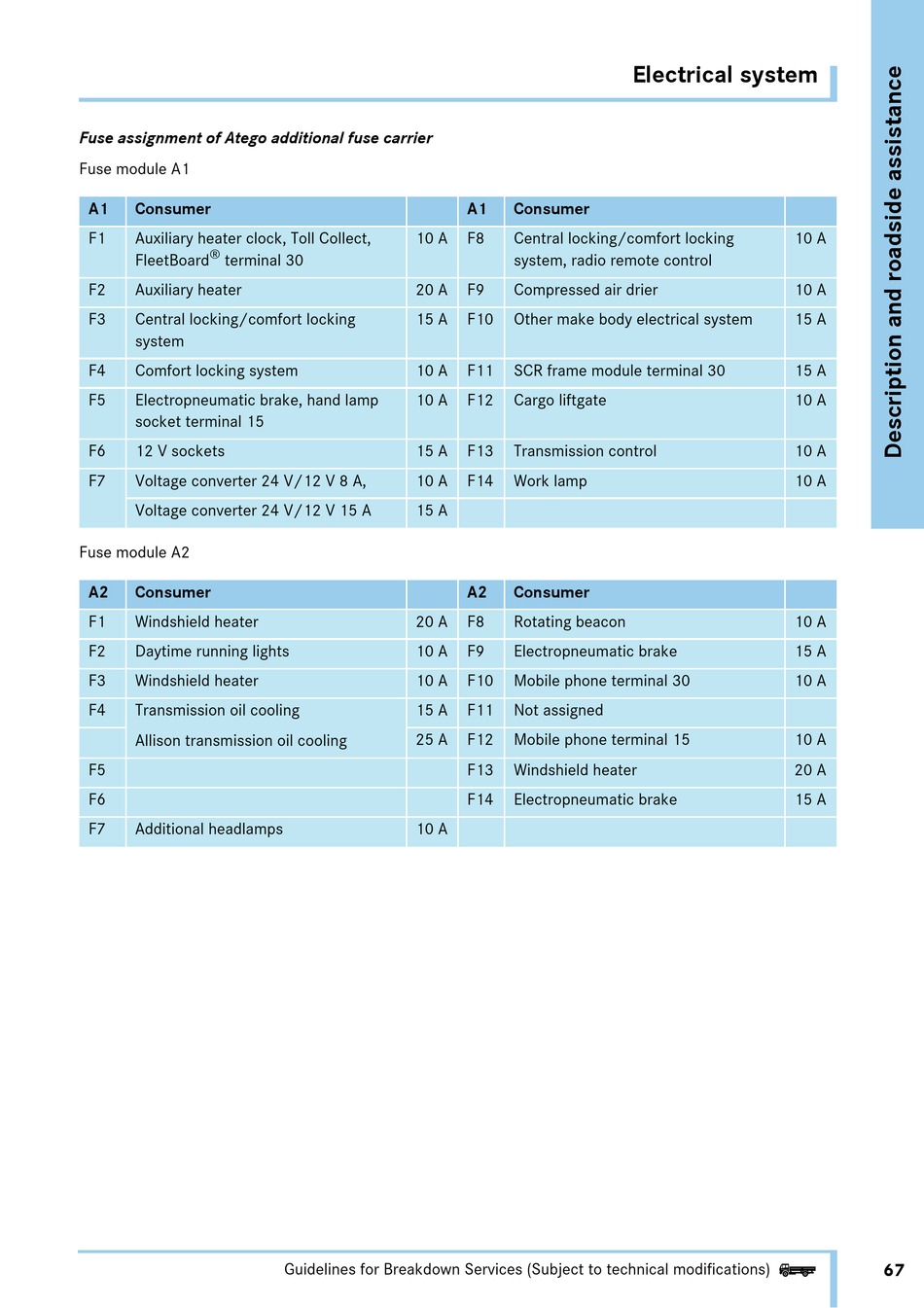

Fuse assignment of Atego additional fuse carrier
Fuse module A1
A1 Consumer
F1 Auxiliary heater clock, Toll Collect,
®
FleetBoard terminal 30
F2 Auxiliary heater
F3 Central locking/comfort locking
system
F4 Comfort locking system
F5 Electropneumatic brake, hand lamp
socket terminal 15
F6 12 V sockets
F7 Voltage converter 24 V/12 V 8 A,
Voltage converter 24 V/12 V 15 A
Fuse module A2
A2 Consumer
F1 Windshield heater
F2 Daytime running lights
F3 Windshield heater
F4 Transmission oil cooling
Allison transmission oil cooling
F5
F6
F7 Additional headlamps
10 A
20 A
15 A
10 A
10 A
15 A
10 A
15 A
20 A
10 A
10 A
15 A
25 A
10 A
