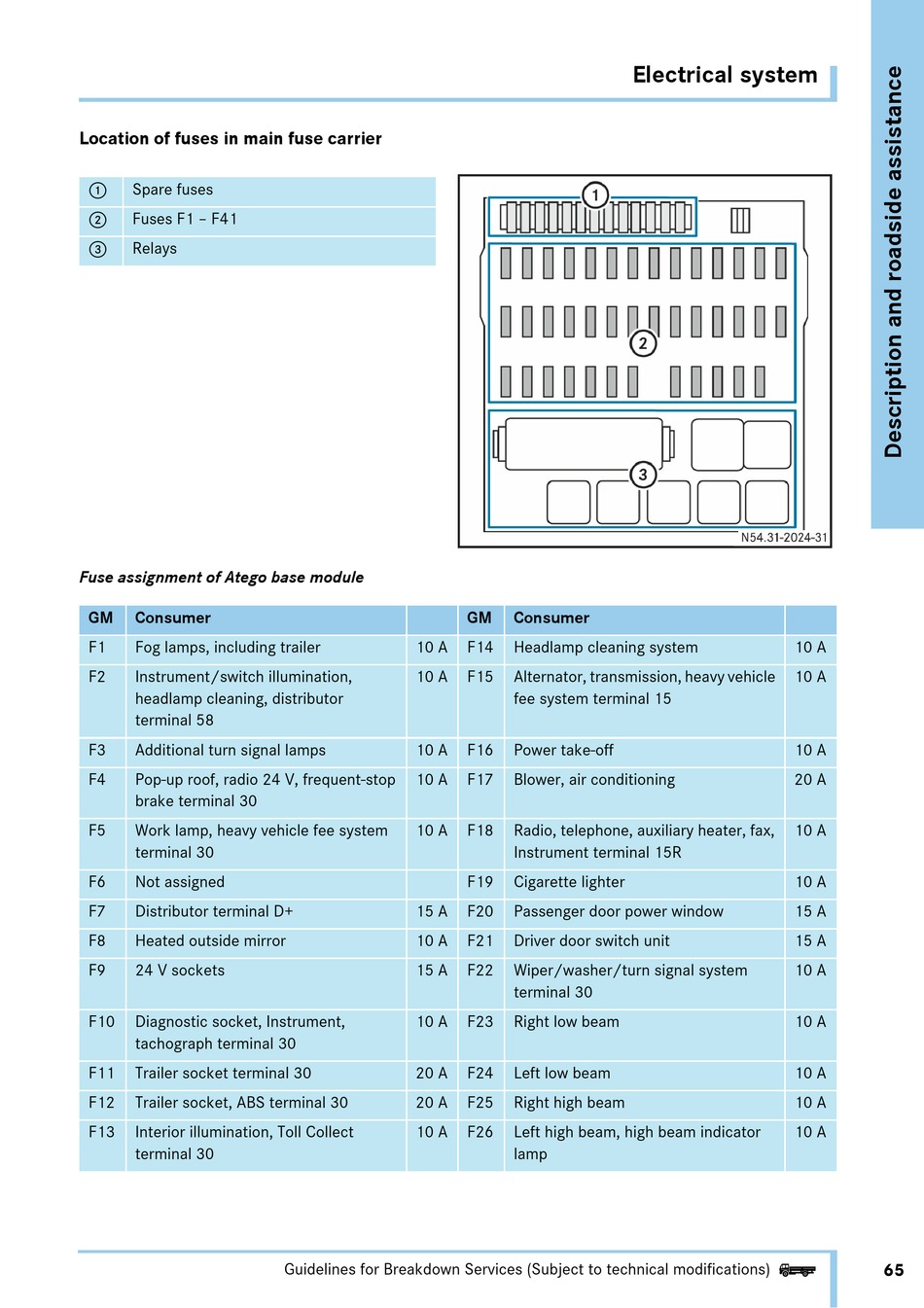

Mercedes-Benz Atego Manual page 67

Location of fuses in main fuse carrier
1
Spare fuses
2
Fuses F1 – F41
3
Relays
Fuse assignment of Atego base module
GM Consumer
F1 Fog lamps, including trailer
F2 Instrument/switch illumination,
headlamp cleaning, distributor
terminal 58
F3 Additional turn signal lamps
F4 Pop-up roof, radio 24 V, frequent-stop
brake terminal 30
F5 Work lamp, heavy vehicle fee system
terminal 30
F6 Not assigned
F7 Distributor terminal D+
F8 Heated outside mirror
F9 24 V sockets
F10 Diagnostic socket, Instrument,
tachograph terminal 30
F11 Trailer socket terminal 30
F12 Trailer socket, ABS terminal 30
F13 Interior illumination, Toll Collect
terminal 30
10 A
10 A
10 A
10 A
10 A
15 A
10 A
15 A
10 A
20 A
20 A
10 A
Guidelines for Breakdown Services (Subject to technical modifications)
Electrical system
GM Consumer
F14 Headlamp cleaning system
F15 Alternator, transmission, heavy vehicle
fee system terminal 15
F16 Power take-off
F17 Blower, air conditioning
F18 Radio, telephone, auxiliary heater, fax,
Instrument terminal 15R
F19 Cigarette lighter
F20 Passenger door power window
F21 Driver door switch unit
F22 Wiper/washer/turn signal system
terminal 30
F23 Right low beam
F24 Left low beam
F25 Right high beam
F26 Left high beam, high beam indicator
lamp
10 A
10 A
10 A
20 A
10 A
10 A
15 A
15 A
10 A
10 A
10 A
10 A
10 A
