Mercedes-Benz Atego Manual page 68

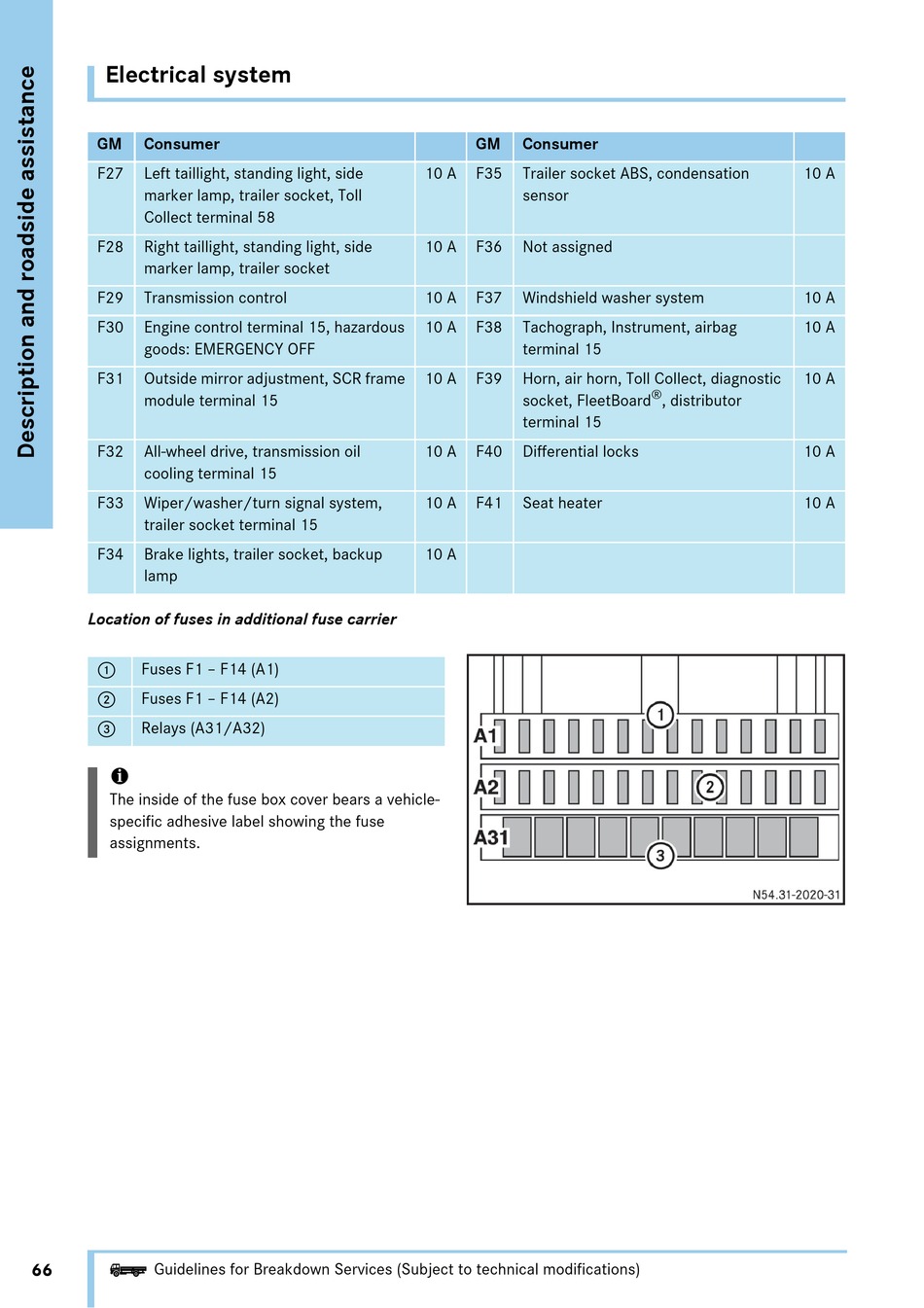

Electrical system
GM Consumer
F27 Left taillight, standing light, side
marker lamp, trailer socket, Toll
Collect terminal 58
F28 Right taillight, standing light, side
marker lamp, trailer socket
F29 Transmission control
F30 Engine control terminal 15, hazardous
goods: EMERGENCY OFF
F31 Outside mirror adjustment, SCR frame
module terminal 15
F32 All-wheel drive, transmission oil
cooling terminal 15
F33 Wiper/washer/turn signal system,
trailer socket terminal 15
F34 Brake lights, trailer socket, backup
lamp
Location of fuses in additional fuse carrier
1
Fuses F1 – F14 (A1)
2
Fuses F1 – F14 (A2)
3
Relays (A31/A32)
i
The inside of the fuse box cover bears a vehicle-
specific adhesive label showing the fuse
assignments.
66
Guidelines for Breakdown Services (Subject to technical modifications)
i
GM Consumer
10 A F35 Trailer socket ABS, condensation
sensor
10 A F36 Not assigned
10 A F37 Windshield washer system
10 A F38 Tachograph, Instrument, airbag
terminal 15
10 A F39 Horn, air horn, Toll Collect, diagnostic
socket, FleetBoard
terminal 15
10 A F40 Differential locks
10 A F41 Seat heater
10 A
10 A
10 A
10 A
10 A
®
, distributor
10 A
10 A
