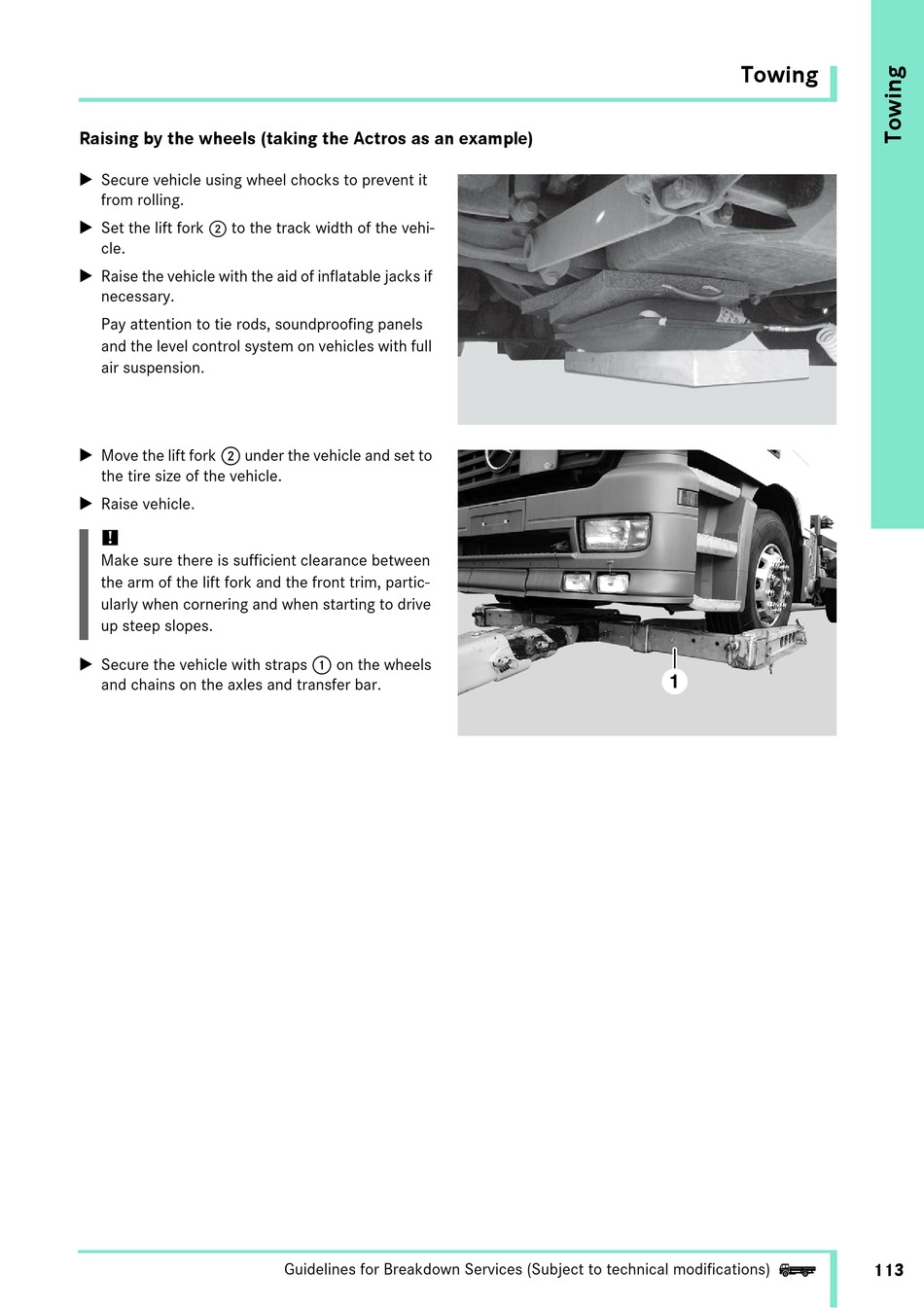

Raising by the wheels (taking the Actros as an example)
Secure vehicle using wheel chocks to prevent it
from rolling.
Set the lift fork 2 to the track width of the vehi-
cle.
Raise the vehicle with the aid of inflatable jacks if
necessary.
Pay attention to tie rods, soundproofing panels
and the level control system on vehicles with full
air suspension.
2
Move the lift fork under the vehicle and set to
the tire size of the vehicle.
Raise vehicle.
!
Make sure there is sufficient clearance between
the arm of the lift fork and the front trim, partic-
ularly when cornering and when starting to drive
up steep slopes.
Secure the vehicle with straps
and chains on the axles and transfer bar.
1
on the wheels
Guidelines for Breakdown Services (Subject to technical modifications)
Towing
113
