GEIST™ S
WITCH
AIRFLOW MANAGEMENT DEVICE
Quick Installation Guide
Models:
SA2-002
Switch Type:
Dual Side or Rear Air Intake - Front
Exhaust 2U Switches
CAUTION: Ensure the required
airflow for safe operation of
equipment is not compromised
when installing the Geist SwitchAir
device.
WARNING: Take precaution to
avoid interference with the switch's
input power cords when installing
behind a live switch.
DETERMINING THE PROPER
INSTALL CONFIGURATION
Two installation configurations are
available for cooling: dual-side air
intake or rear air intake. The
appropriate install configuration is
determined by the design of the air
intake on the switch to be cooled.
Both configurations include
assembling the side channels to
the rack. For rear air intake, the rear
ducts are used and the wipers are
discarded. For side air intake, the
wipers are used and the rear ducts
are discarded.
REAR AND SIDE AIR INTAKE
INSTALL
1. Attaching the rear air
ducts (rear air intake
only)
Orient the rear ducts so their
opposite open ends are tilted
away from the mountable end
of the side channel. Use the
provided pan head screws to
attach the rear air ducts to the
side mounting channels.
2. Installing the side channel
assemblies
For both configurations, insert
the four customer-provided
cage nuts into the four holes on
the front of the channel.
A
IR

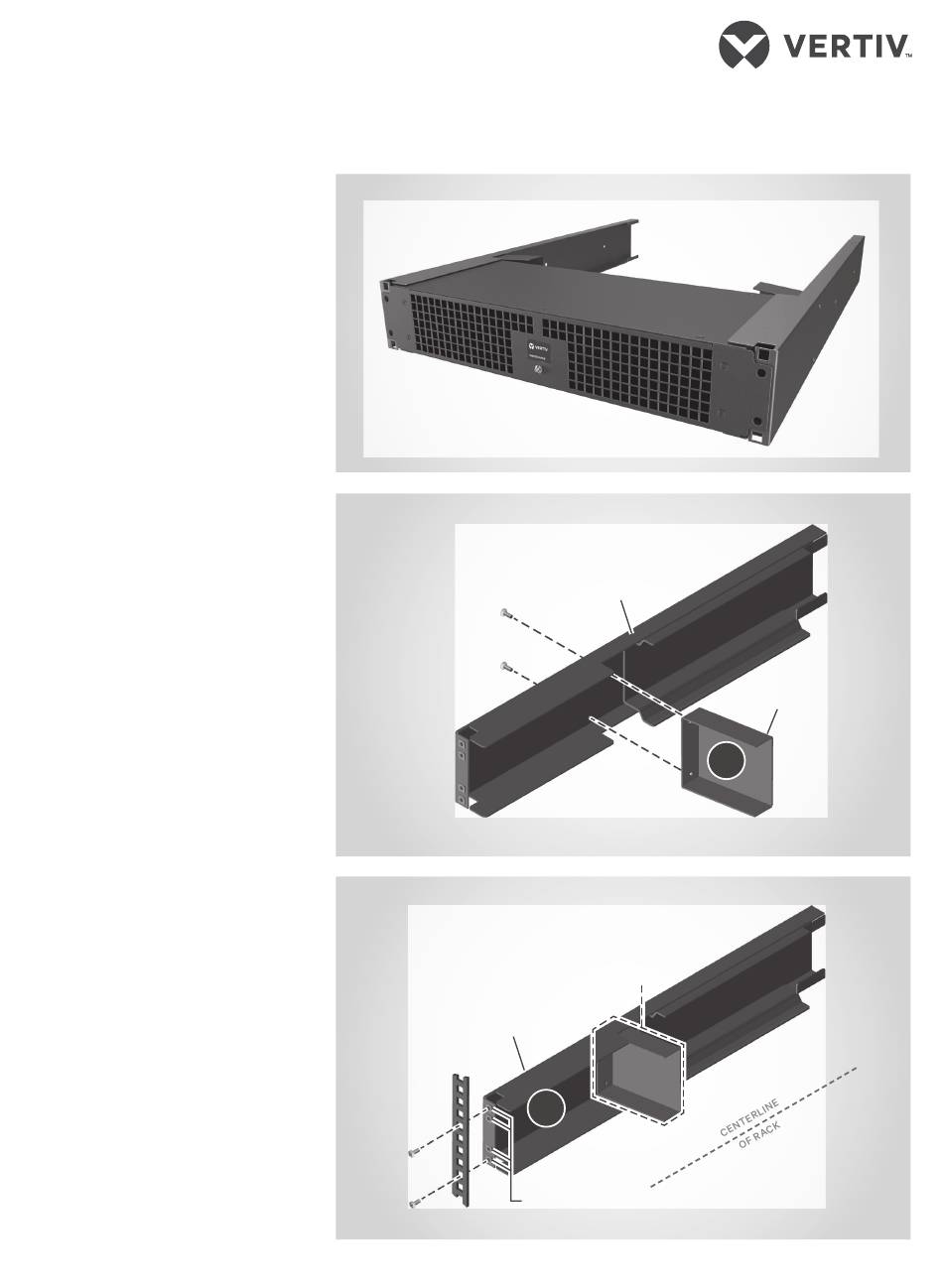

Geist SwitchAir Airflow Management Device
Geist SwitchAir Rear Duct Installation
REAR
AIR INTAKE
ONLY
(Discard wipers.)
Geist SwitchAir Side Channel Installation
Side channel
Side channel
Present only in
rear air intake
installation.
2
Cage nuts x4
Rear duct
1
VM1178/590-2242-501A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vertiv GEIST SwitchAir SA2-002
Summary of Contents for Vertiv GEIST SwitchAir SA2-002
- Page 1 GEIST™ S WITCH AIRFLOW MANAGEMENT DEVICE Quick Installation Guide Models: Geist SwitchAir Airflow Management Device SA2-002 Switch Type: Dual Side or Rear Air Intake - Front Exhaust 2U Switches CAUTION: Ensure the required airflow for safe operation of equipment is not compromised when installing the Geist SwitchAir device.
-
Page 2: Installing The Switch
GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE Quick Installation Guide Select a 2U space in the rack. Geist SwitchAir Wiper Installation With the channel of the side rail facing the centerline of the rack, hold the side rail channel on the inside of the left rack upright. Fasten in place using screws only in the top and bottom holes of the 2U space. - Page 3 GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE Quick Installation Guide to fasten the unit to the front rack Geist SwitchAir Rack Installation Complete uprights. For the side air intake only: SIDE AIR INTAKE AIRFLOW As the SwitchAir device is inserted SHOWN into the space, each wiper acts as a guide to deflect the wiper past the switch’s corner and along it’s side.
- Page 4 To contact Vertiv Technical Support: visit www.VertivCo.com © 2019 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions.
