TEMPERATURE/HUMIDITY
TRANSMITTER-WALL (4-20
Product Specification/Installation Guide

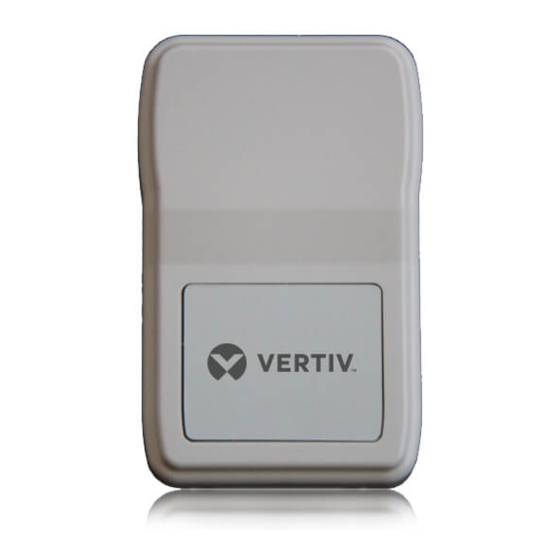

The Liebert THW420 combination
temperature/humidity transmitter is
designed to meet applications that
require local sensing of both
temperature and humidity in a single,
aesthetically pleasing enclosure.
This device incorporates a digital
solid state temperature and
capacitive humidity sensor. The
transmitter requires 24 VDC. The
sensor provides an accurate and
predictable four-wire, 4-20 mA
output signal for temperature and
a second 4-20 mA output signal
for humidity.
Termination
NOTE: Risk of accidental electric
arc. Can cause equipment damage.
Vertiv recommends wiring the
sensor WITHOUT power applied;
accidental arcing may damage the
product and will void the warranty.
The Liebert THW420 transmitter
must be powered from a 24 VDC
supply. The combination
temperature/humidity sensor is
terminated as follows:
• The humidity transmitter
requires a three-wire
termination for the 4-20mA
output using 24 VDC.
• The temperature sensor also
requires a threewire termination.
In most cases, it obtains power
from the analog input to which
it is connected and no external
power is required.
Though interference from external
sources is not a major problem with
current transmitters, Liebert
recommends separating the wiring
from line voltage wiring and from
wiring used to supply highly
inductive loads such as motors,
generators and coils. Vertiv also
recommends making power
connections with twisted pair wire
of at least 22 AWG and crimp-type
connectors.
A)
M
To GND (common) of controller*

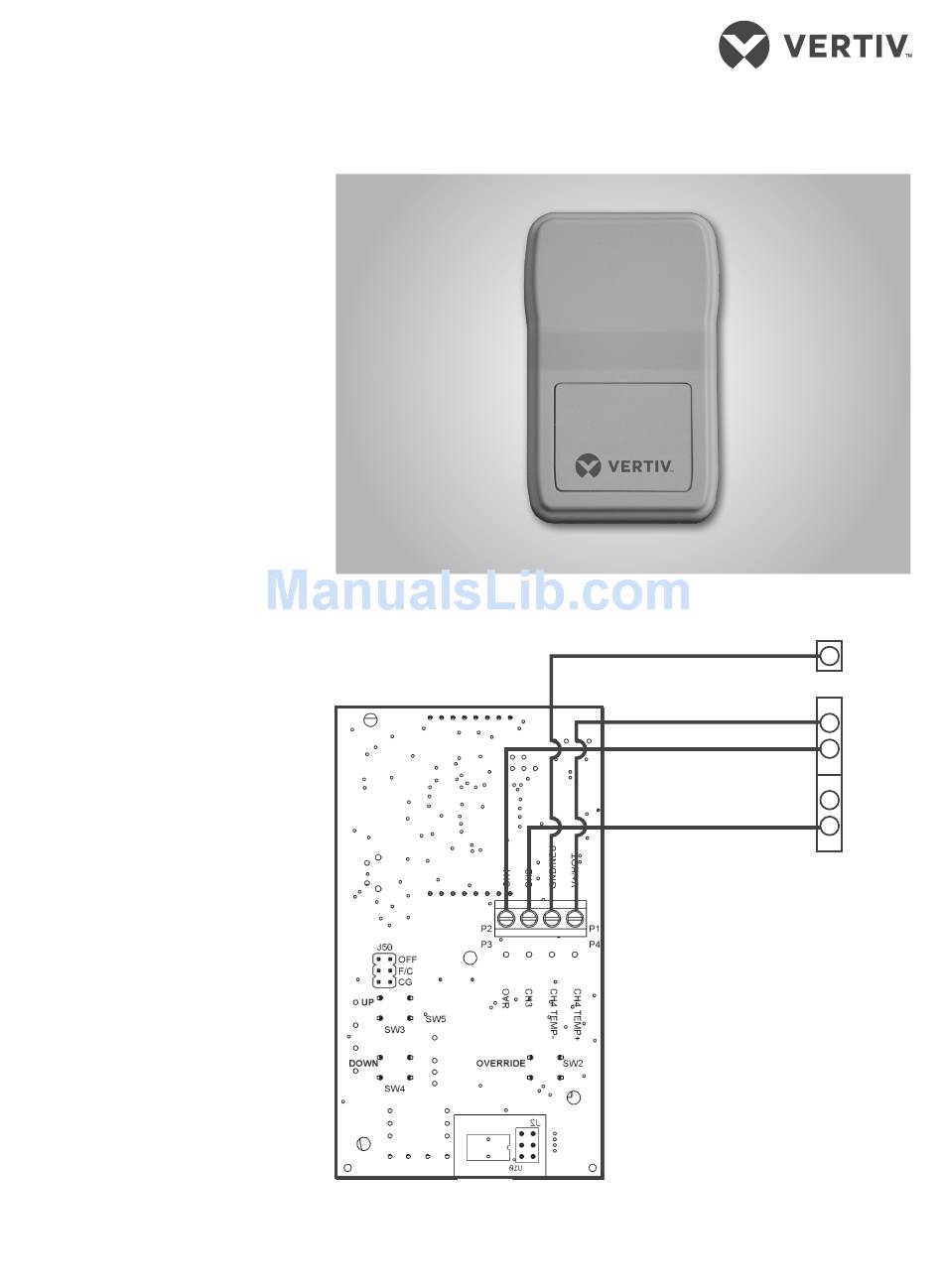

TERMINATIONS
From +24VDC of controller or
power supply
To controller's analog input
(temperature signal, 4-20mA)
To controller's analog input
(humidity signal, 4-20mA)
* NOTE:
The GND (common) terminal
is common between the
Power and Sensor
+ 24VDC should be used
at all times
590-1616-501A \ SL-31080_REV2_11-17
4-20mA
Input #1
+
-
4-20mA
Input #2
+
-
1
