GEIST™ S
WITCH
AIRFLOW MANAGEMENT DEVICE
Quick Installation Guide
Models:
SA2-004
Switch Type:
Front (Port) Air Intake - Rear
Exhaust 1U Switches
CAUTION: Ensure the required
airflow for safe operation of
equipment is not compromised
when installing the Geist SwitchAir
device.
WARNING: Take precaution to
avoid interference with the switch's
input power cords when installing
behind a live switch.
1. Installing the airflow
channel s
Using customer-provided
hardware, insert the cage nuts
into the four holes on the front
of the channel.
Select a 2U space in the rack.
With the channel facing the
centerline of the rack, hold the
channel on the inside of the left
rack upright. Fasten in place
using screws only in the top and
bottom holes of the 2U space.
Repeat the procedure to install
the airflow channel on the
opposite side.
2. Installing the switch
Slide the network switch into
the bottom 1U at the rear of the
rack's 2U space. Using
customer-provided cage nuts
and screws, mount the switch
to the rear rack uprights.
A
IR

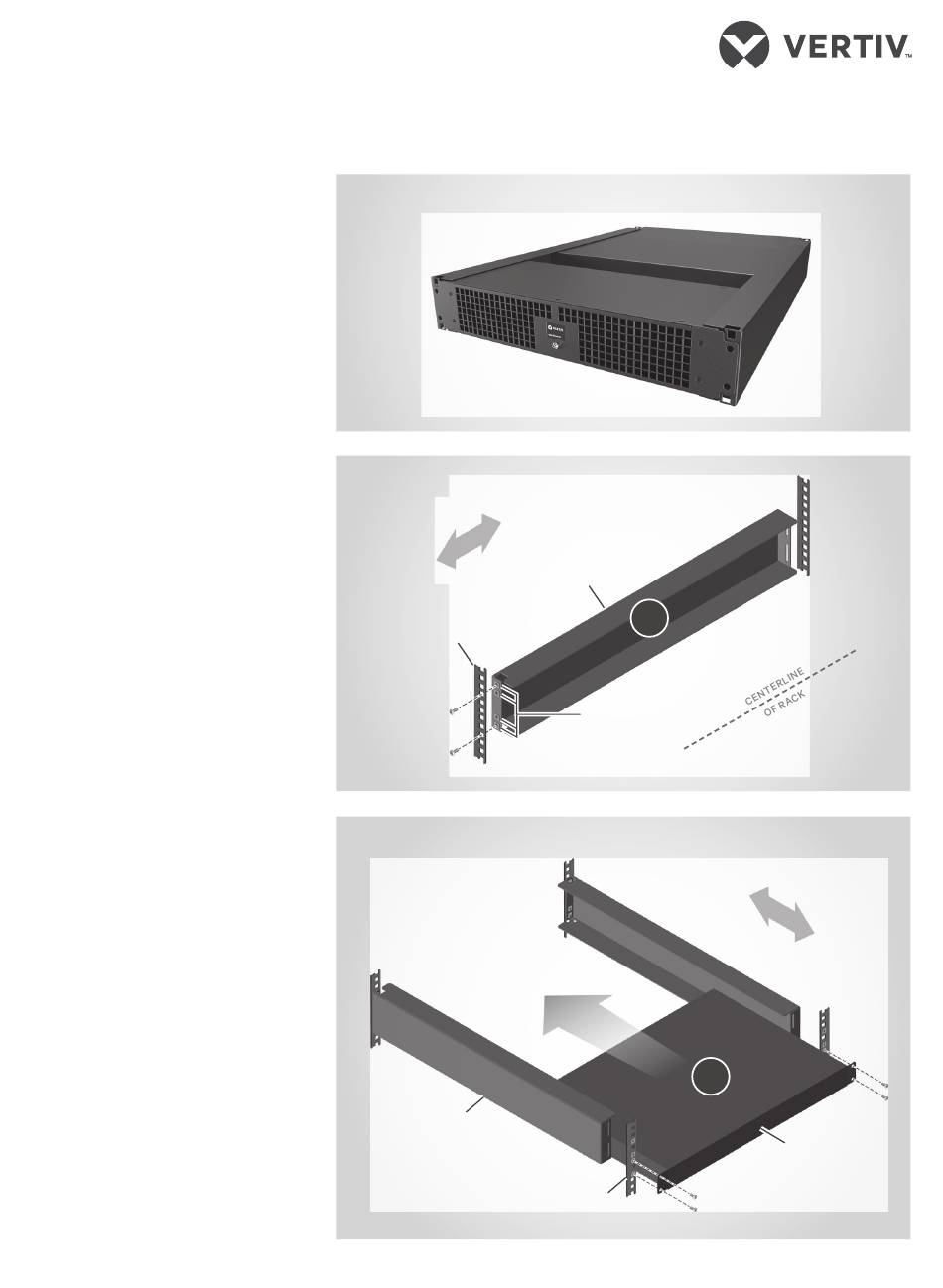

Geist SwitchAir Airflow Management Device
Geist SwitchAir Rack Rail Installation
RACK
FRONT
Left front
rack upright
screws of 2U space
Geist Network Switch Installation
Side airflow
channel
RACK
REAR
Side airflow
channel
1
Cage nuts x4
Top and bottom
Left rear
rack upright
RACK
FRONT
RACK
REAR
2
Network
switch
VM1180/590-2244-501A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vertiv GEIST SwitchAir SA2-004
Summary of Contents for Vertiv GEIST SwitchAir SA2-004
-
Page 1: Installing The Switch
GEIST™ S WITCH AIRFLOW MANAGEMENT DEVICE Quick Installation Guide Models: Geist SwitchAir Airflow Management Device SA2-004 Switch Type: Front (Port) Air Intake - Rear Exhaust 1U Switches CAUTION: Ensure the required airflow for safe operation of equipment is not compromised when installing the Geist SwitchAir device. - Page 2 GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE Quick Installation Guide Geist SwitchAir Air Trunk Installation RACK FRONT Network switch RACK REAR Air trunk Side airflow channel Side airflow channel Stabilizing 3. Installing the air trunk Geist SwitchAir Wiper Installation Insert the air trunk between the channels on top of the network Wiper tab switch.
- Page 3 GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE Quick Installation Guide Geist SwitchAir Unit Installation Air trunk Side airflow channel Left front rack upright SwitchAir RACK REAR RACK FRONT 5. Installing the SwitchAir Geist SwitchAir Airflow device into the rack NOTE: Connect to power before attaching the SwitchAir device to the rack.
- Page 4 To contact Vertiv Technical Support: visit www.VertivCo.com © 2019 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions.
